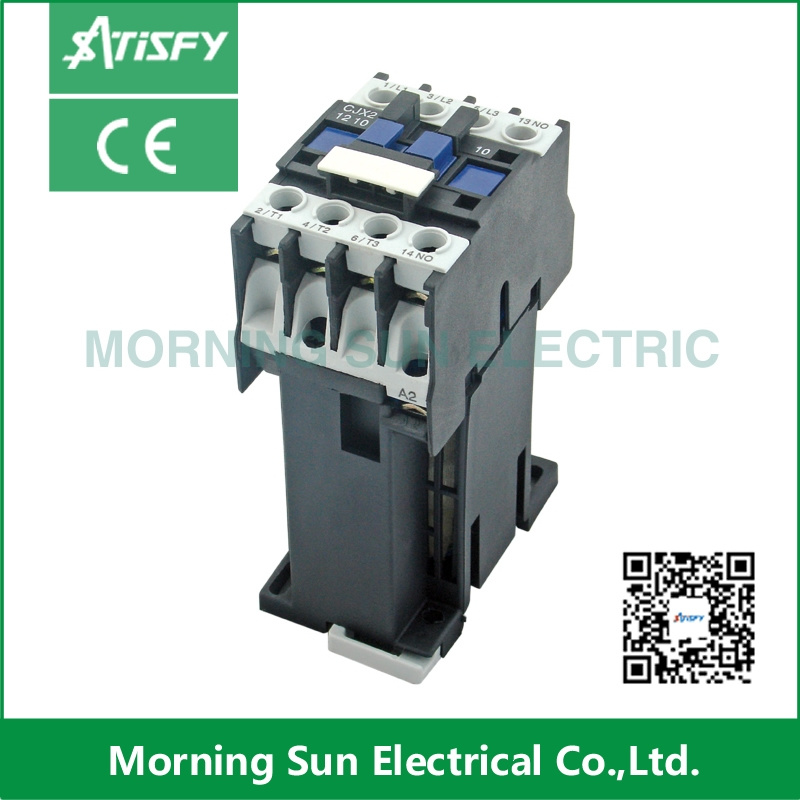

High Quality DC Contactor Lp1-D

Prod Model:	LP1-D contactor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Thermal Relay
Size:	Subminiature

Product Description

LP1-D12(LP1-D09, LP1-D18, LP1-D25, LP1-D32, LP1-D40, LP1-D50, LP1-D65, LP1-D80, LP1-D95)DC Contactor

LP1-D Series DC Operated AC contactor is suitable for using in the circuit rated voltage up to 660V AC 50Hz or 60Hz, and in rated current 9-95A in AC-3/380V load circuits. For remote controlling circuit making, breaking and frequently starting AC motors. It can be also combined with the auxiliary contact group, air delayer, thermal relay devices etc. It has specialties of equable & reliable action, quick while working.

HS Code: 85362000
Model: LP1-D
Standard: IEC 60947-4, GB14048-4
Specification:
Rated voltage: 380, 660V
Rated current: 9, 12, 18, 25, 32, 40, 50, 65, 80, 95A


LP1-D SERIES DC OPERATED AC CONTACTOR


Type	Rated working current (A) IeA (AC-3)	Rated heat current 1th (A)	Rated working voltage Ue (A)	Rated insulating voltage Ui (A)	Controlled power (kW)					Electrical life (AC-3) 104	Number of the contacts
					220V	380V	415V	440V	660V
LP1-D09	9	20	380V 660V	660V	2.2	4	4	4	5.5	660V	3P+NO 3P+NC 3P+NO +NC
LP1-D12	12	20			3	5.5	5.5	5.5	7.5
LP1-D18	18	32			4	7.5	9	9	9
LP1-D25	25	40			5.5	11	11	11	15
LP1-D32	32	50			7.5	15	15	15	18.5
LP1-D40	40	60			11	18.5	22	22	30
LP1-D50	50	80			15	22	25	30	33
LP1-D65	65	80			18.5	30	37	37	37
LP1-D80	80	125			22	37	45	45	45
LP1-D95	95	125			25	45	45	45	45
