High Quality Diamond Dotted Paper

Name: High Quality Diamond Dotted Paper
Brand: all-electronics-online.com
SKU: 805450065
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	Negotiablekg
Min Order:	1000kg
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	O
Application:	Electrical Base, Shell
Type:	Insulation Film
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	E 120
Maximum Voltage:	<10KV
Color:	Grey
Brand:	Toyo

Product Description

Packaging & Delivery
Packaging Details:Standard Package: Reel packaging or Flat packaging; We can also pack it according to the customers' requirements.
Delivery Detail:3-7 days
Specifications

thickness is around 0.03~0.5mm

Product Description

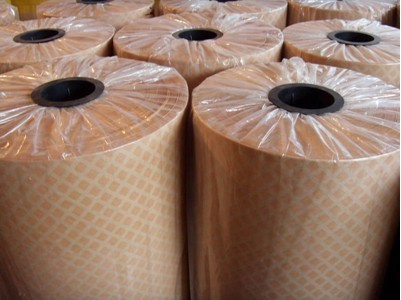

Diamond Dotted Paper is Used for transformer insulation between the layers. Can make the adjacent layers of winding reliably bonded into a fixed units, so as to ensure the mechanical properties of insulation structure for a long time.
This product is imported base paper pulp, pure epoxy resin, the most advanced formula technology abroad and widely used in the dry type transformer insulation system for gas or oil layer insulation, current voltage transformer, low voltage winding (aluminum foil) liner insulation around the package, and B, F motor, electrical appliance such as slot insulation and turn-to-turn insulation. Used in aerospace, automotive, electrical and other fields.

Technical Data Sheet

Properties	Units	Values
Nominal thickness	mm	0.08±0.005 0.013±0.007 0.18±0.01
The single side adhesive thickness	um	10-15
moisture	%	4.0-8.0
oil absorbency	%	20
bonding strength	kpa	normal >=650 100ºC >=400
Transformer oil pollution		No pollution
breakdown voltage	KV air	≥0.88 ≥1.37 ≥8 2
	KV oil	≥ 4.4 ≥7 ≥9

Packaging & Shipping

Normally the out - packaging for the goods is wooden pallet or wooden case, we can deliver it by air or by ship.
Airport: Beijing, Tianjin, Qingdao, Nanjing, Shanghai, Guangzhou, Shenzhen
Sea Port: Tianjin,Qingdao, Shanghai, Ningbo, Guangzhou

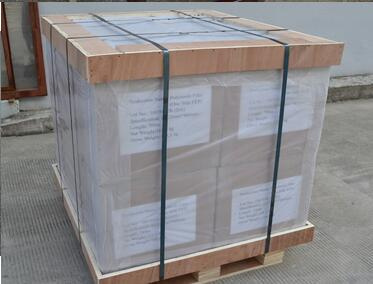

Packing Type Photo is as the following:

We are major in insulation material of various classes, from B to F, and from F to H, TOYO'S products are widely used in Motors, Generators, Welders, Electrical Heaters, and etc. And provide assurances for their long time, stability work.

The test results of from SGS Shanghai branch indicate that the TOYO's products are in conformity with EU RoHS Directive 2002/95/EC and subsequent revision directives. And our product conforms to REACH regulation's requirements (the newest version) of European Union after tested, and also passed UL certification of American and Canada.

" TOYO" Team was composed of many senior electrical engineers, and insist on response to every client's enquiry 100%. Maintaining good cooperative relationship with main manufacturers in domestic for long term, and this provides " TOYO" With stable product quality; Reasonable prices; Timely supply.

We started to do the foreign trade since 2014, because of the good faith, now we have had so many customer from home and abroad. We are also planning to making the investment to enhance the relationship with our key suppliers, and meet our customer's requirements.

Welcome you to contact us and discuss business at any time.
