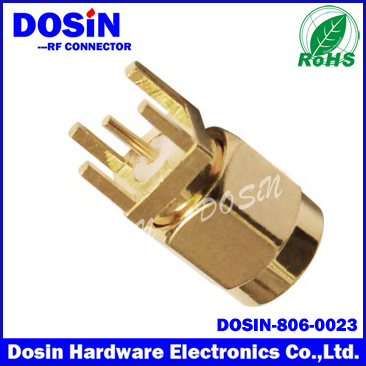

High Quality DIP SMA Male PCB Mount Connector

Name: High Quality DIP SMA Male PCB Mount Connector
Brand: all-electronics-online.com
SKU: 748246865
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DOSIN-806-0023
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	50ohm
Material:	Brass
Finish:	Gold/Nickel Plating
Type:	PCB Coaxial Connector
Coupling Mechanism:	Threaded Connection
Brand:	Renhotec

Product Description

SMA connector series product is a widely used small coaxial connectors with threaded connections. The SMA series inch threaded connections, high strength, good shock resistance. The outer conductor ends in direct contact, so that the insertion loss to a minimum.

Major Technical Charicteristics:
Temp. Range: -65~+165° C (PE Cable -40~+85° C)
Vibration: MIL-STD-202, Method 213
Impedance: 50Ω Impedance
Frequency: Range DC~12.4GHz( 0~18GHz)
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Center Contact ≤ 3 mΩ
Outer Contact ≤ 2 mΩ
Insulation resistance ≥ 5000 MΩ
Insertion loss ≤ 0.15 dB/6GHz insertion
VSWR: Straight ≤ 1.10+0.002f ≤ 1.05+0.001f
Right angle ≤ 1.20+0.003f ≤ 1.10+0.001f
Durability(mating) ≥ 500(cycles)

MATERIAL & PLATING
Pin conductor: Brass/Beryllium copper--Gold plated
Body: Beryllium copper--Nickel plated
Plug: Beryllium copper / Phosphor bronze--Gold plated
Crimping sleeve: Brass--Gold plated
Insulator: PTFE / PFA

Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Shipping: We offer as many shipping options as possible. Including DHL, UPS. TNT, Fedex and EMS.

Our Quality: Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.

RENHOTEC GROUP, established in May of 2005, specializes in operating businesses of precise Board to Board, Wire-to-board connectors, Solar photoelectric connectors, RF coaxial connectors, Industrial Terminal blocks and cable assemblies for computer & peripheral devices.After 10 years of rapid development, it owns two factories at present:Dongguan RENHOTEC Hardware Electronics Co., Ltd and Hubei RENHOTEC hardware Electronics Co., Ltd.Since its foundation, the company sticks to the principle of specialization and tries its best to supply customers with products of high quality at competitive prices, regarding the development and design of metal and plastic molds, precision high-speed punch molding, precision die casting molding, zinc (aluminum) die casting, precise plastic injection molding and automatic assembly with the support of a skilled R&D and management team.

Since company foundation of the, we emphasize canonical management and high-quality requirements.We has already acquired ISO9001, ISO14001, QC080000 and TS16949 international quality, environment and management systems certification.The company main ten series products obtained American UL & cUL certification, with the No.E248993, the solar connector components acquired Germany TUV certification, All items are in line with EU RoHS and REACH environmental requirements.

Our quality policies:Innovation and development, continual improvement, quality foremost, and customer satisfaction.

Our environmental policies:Stand to environmental protection laws and regulations, devote to pollution treatment and environmental protection, reasonably allocate and utilize resources, manufacture green products, strengthen environmental protection awareness, and ceaselessly improve environment.

Our managing principles:Good quality, loyalty and common prosperity.
