High Quality Electric Power Cable Rvvp Cable

Name: High Quality Electric Power Cable Rvvp Cable
Brand: all-electronics-online.com
SKU: 828385755
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	Negotiable/Roll
Min Order:	100/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RVVP
Voltage:	Low and Medium Voltage Cable
Current:	AC Cable
Insulation Material:	PE
Certification:	RoHS
Model:	Gemtcl001
Brand:	Gemt

Product Description

1 This screen cable or shield cable is suitable for electronic field and has high quality,it belongs to RoHS compliant products and 100% inspected before shipment.

2 Our tenet is " Specialized quality, Sincere service"

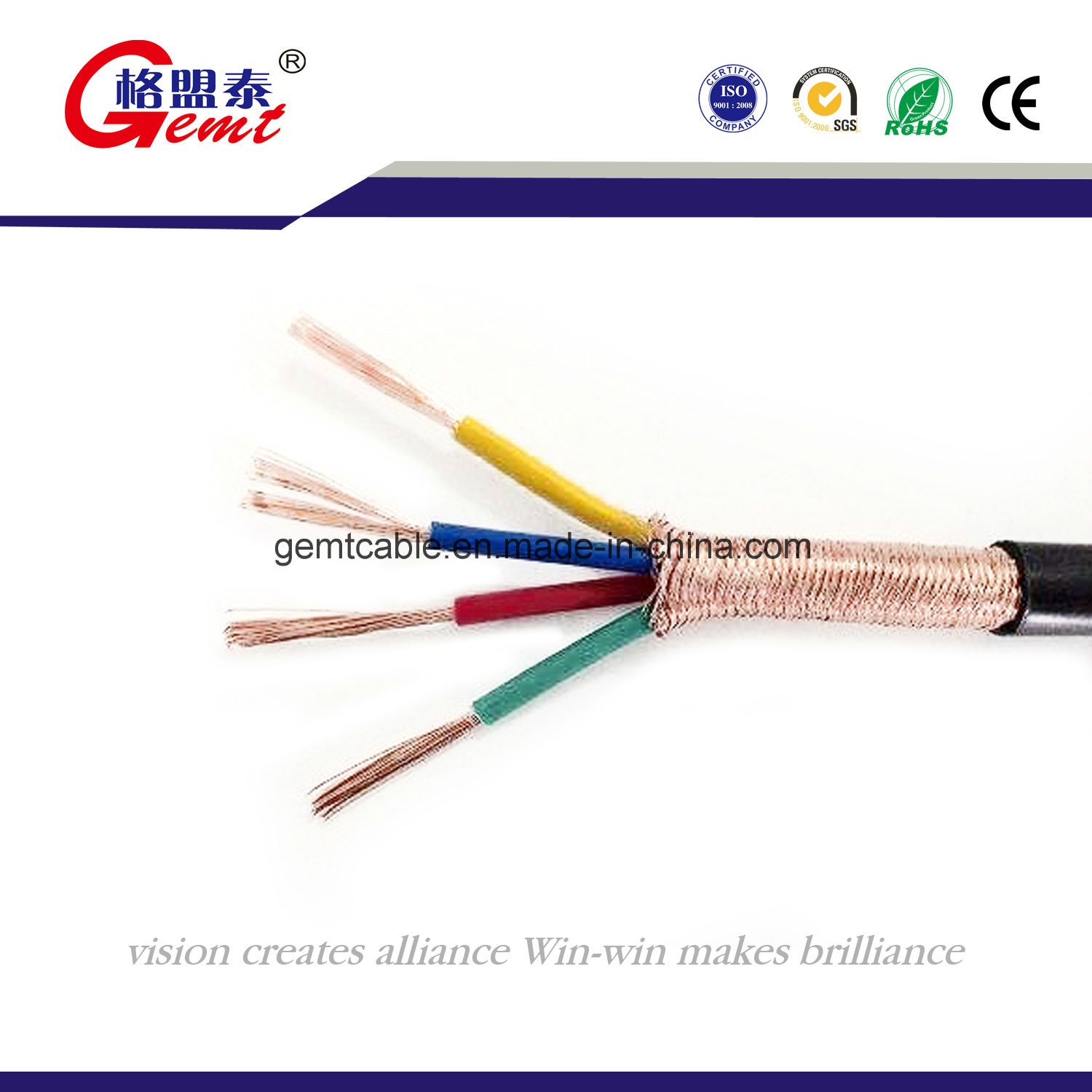

3 Shielded Electric cable 300/300V

Structure:
1 Inner ConducotrSolid O.F.C Bare copper (BC) or Tinned copper (TC)
2 InsulationPVC, Full chromatography identity.
3 Cable core: Stranded insulated core, covered with PP belt
4 Outer ConductorShielding1Aluminum Foil 2Braiding Tinned copper (TC) or Aluminum wire (AL)Lor O.F.C Bare copperBC
5 Jacket: Black PVC or White PVC
6 number of core:8 cores
7 Standard: JB 8734.5-1998

Application:
It is used for buildings automatic monitoring system, anti-burglary alarm system, fire-fighting system, gauges (power, water, gas gauge) self-recording system, and the power source and signal connection of anti-disturbance circuits necessary for comunicaitons, audio, acoustic system, instrument, electronic equipment and automatic device.

Detailed spec. are as follows,

Item No.	Name	Model	Inner Conductor	Insulation	Shielding	Jacket
XD-5002	Shielded Electric cable300/300V	2×0.3080 Braiding	16/0.15(BC)	PVC Φ1.7	1.Aluminum Foil 2.Braiding: 80BraidingBC	PVC/ Black
XD-5003	Shielded Electric cable300/300V	2×0.5064 Braiding	16/0.20(BC)	PVCΦ2.0	1.Aluminum Foil 2.Braiding: 64 BraidingBC	PVC/ Black
XD-5004	Shielded Electric cable300/300V	2×0.7564 Braiding	24/0.20(BC)	PVCΦ2.3	1.Aluminum Foil 2.Braiding: 64 BraidingBC	PVC/ Black
XD-5005	Shielded Electric cable300/300V	2×1.080 Braiding	32/0.20(BC)	PVCΦ2.5	1.Aluminum Foil 2.Braiding: 80 BraidingBC	PVC/ Black
XD-5006	Shielded Electric cable300/300V	2×1.596 Braiding	48/0.20(BC)	PVCΦ2.8	1.Aluminum Foil 2.Braiding: 96 BraidingBC	PVC/ Black
XD-5006-1	Shielded Electric cable300/300V	2×2.5144 Braiding	78/0.20(BC)	PVCΦ3.7	1.Aluminum Foil 2.Braiding: 144 BraidingBC	PVC/ Black
XD-5008	Shielded Electric cable300/300V	3×0.3080 Braiding	16/0.15(BC)	PVCΦ1.7	1.Aluminum Foil 2.Braiding: 80 BraidingBC	PVC/ Black
XD-5009	Shielded Electric cable300/300V	3×0.5064 Braiding	16/0.20(BC)	PVCΦ 2.0	1.Aluminum Foil 2.Braiding: 64 BraidingBC	PVC/ Black
XD-5010	Shielded Electric cable300/300V	3×0.7580 Braiding	24/0.20(BC)	PVCΦ2.3	1.Aluminum Foil 2.Braiding: 80 BraidingBC	PVC/ Black
XD-5011	Shielded Electric cable300/300V	3×1.096 Braiding	32/0.20(BC)	PVCΦ2.5	1.Aluminum Foil 2.Braiding: 96 BraidingBC	PVC/ Black
XD-5012	Shielded Electric cable300/300V	3×1.5112 Braiding	48/0.20(BC)	PVCΦ2.8	1.Aluminum Foil 2.Braiding: 112 BraidingBC	PVC/ Black

Gemt Cable Co., Ltd., is a professional supplier of Power Cable, Coaxial Cable, Data Cable, Video Cable, HDMI Cable, Wire Cable, LAN Cable, Communication Cable, Electric Wire, Electric Cable, XLPE, Networfking Cable, Alarm Cable. Located in Yantian Village, Fenggang Town, Dongguan City, China. Mainly engaged in Wire & Cable's manufacture. It is integrated with R & D, Purchase, Manufacture, Promotion and Marketing.

The company has advanced production lines and inspecting equipments. With a group of professional engineers, by strictly following to GB and IEC standards and carry out ISO90001 rigorously, all products produced in this factory is pass the CCC, CE CB RoHS Certifications.

Our tenet is "Specialized quality, Sincere service",

From customers' interest, we are dedicated to provide the high quality products and first-class after-sale service, Since all brands that belong to our company enter into market, they are receiving a lot of user's trust and praise

Base on the persisting dedication of Gemt staff, the company will continue to convergence of the industry technology, management, marketing and other elites, dedicated to the development of power industry, as always, join hands in creating a brilliant tomorrow!
