| Prod Model: |
AABC05 |
| Name: |
ACSR Cable |
| Port: |
Qingdao |
| Payment: |
L/C T/T |
| Type: |
Bare |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum Clad Steel |
| Certification: |
UL |
| Sheath Material: |
Without Sheath |
| Insulation Material: |
Without Sheath |
| Range Of Application: |
Industrial |
| Brand: |
Dayuan |
Product Description

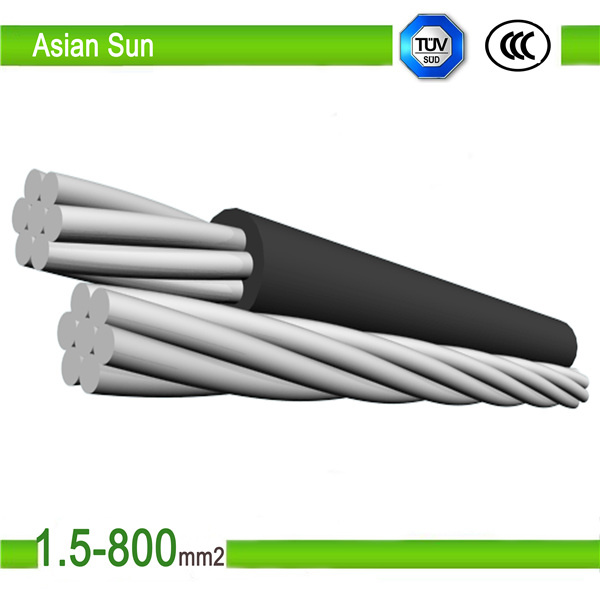

High quality electrical overhead cable made in China
1.Standards:IEC207-1966, IEC209-1966
2.Description: Normal-strength aluminum conductor steel reinfored cable
3.Conductor:Aluminium
4.Insulation/sheath:N/A
5.Voltage:0.6/1kV, 8.7/15kV
6.Application: Conductor(AAC and ACSR) have been widely used in power transmission lines with various
voltage levels,because they have such good characteristics as simple structure,convenient installation
and maintenance,low cost large transmission capacity.And they are also suitable for laying across rivers
valleys and the places where special geographical features exist.
| Code Number | Nominal area | Stranding& | Approx | Approx | Breaking load | DC Resistance at 20 |
| Wire | overall | weight |
| Diameter | diameter | |
| mm 2 | mm | mm | Kg/km | KN | Ohm/km |
| 10 | 10 | 7/1.35 | 4.05 | 27.4 | 1.95 | 2.8633 |
| 16 | 16 | 7/1.71 | 5.12 | 43.8 | 3.04 | 1.7896 |
| 25 | 25 | 7/2.13 | 6.4 | 68.4 | 4.5 | 1.1453 |
| 40 | 40 | 7/2.70 | 8.09 | 109.4 | 6.8 | 0.7158 |
| 63 | 63 | 7/3.39 | 10.2 | 172.3 | 10.39 | 0.4545 |
| 100 | 100 | 19/2.59 | 12.9 | 274.8 | 17 | 0.2877 |
| 125 | 125 | 19/2.89 | 14.5 | 343.8 | 21.25 | 0.2302 |
| 160 | 160 | 19/3.27 | 16.4 | 439.8 | 26.4 | 0.1798 |
| 200 | 200 | 19/3.66 | 18.3 | 549.7 | 32 | 0.1439 |
| 250 | 250 | 19/4.09 | 20.5 | 687.1 | 40 | 0.1151 |
| 400 | 400 | 37/3.71 | 26 | 1102 | 64 | 0.0721 |
| 450 | 450 | 37/3.94 | 27.5 | 1239.8 | 72 | 0.0641 |
| 500 | 500 | 37/4.15 | 29 | 1377.6 | 80 | 0.0577 |
| 560 | 560 | 37/4.39 | 30.7 | 1542.9 | 89.6 | 0.0515 |
| 630 | 630 | 61/3.63 | 32.6 | 1738.3 | 100.8 | 0.0458 |
| 710 | 710 | 61/3.85 | 34.6 | 1959.1 | 113.6 | 0.0407 |
| 800 | 800 | 61/4.09 | 36.8 | 2207.4 | 128 | 0.0361 |
| 900 | 900 | 61/4.33 | 39 | 2483.3 | 144 | 0.0321 |
| 1000 | 1000 | 61/4.57 | 41.1 | 2759.2 | 160 | 0.0289 |
| 1120 | 1120 | 91/3.96 | 43.5 | 3093.5 | 179.2 | 0.0258 |
| 1250 | 1250 | 91/4.18 | 46 | 3452.6 | 200 | 0.0231 |
| 1400 | 1400 | 91/4.43 | 48.7 | 3866.9 | 224 | 0.0207 |
| 1500 | 1500 | 91/4.58 | 50.4 | 4143.1 | 240 | 0.0193 |
CONSTRUCTION
Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay- stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core. The DC resistance at 20°C of the 6201-T81 conductors and of the standard ACSRs of the same diameter are approximately the same. Conductors of the 6201-T81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H19 grade aluminum.
APPLICATION
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. It is preferred to use of ABC cables instead of uninsulated conductors at low voltage networks. ABC cables are especially used at areas where the cost of underground networks is expensive and also for electrification of rural areas like villages. Bundles can include one or two additional conductors for public lighting and control pair.
