High Quality Electronically Compensated Clip-on CT

Name: High Quality Electronically Compensated Clip-on CT
Brand: all-electronics-online.com
SKU: 706699412
Availability: InStock
Rating: 4.8 (133 reviews)

Price:	US $ 100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	3/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Q13
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ratio:	1000: 1 or 2000:1, Customized
Output Signal:	0-100mA or 0-100mv
Types:	Clip on CT
Class:	0.1
Jaw:	13mm
Color:	Black
Weight:	300g
Standard:	En 61010-2-032
Output Cable:	2.5m
Current Range:	1mA-120A
Application:	Current Clamp

Product Description

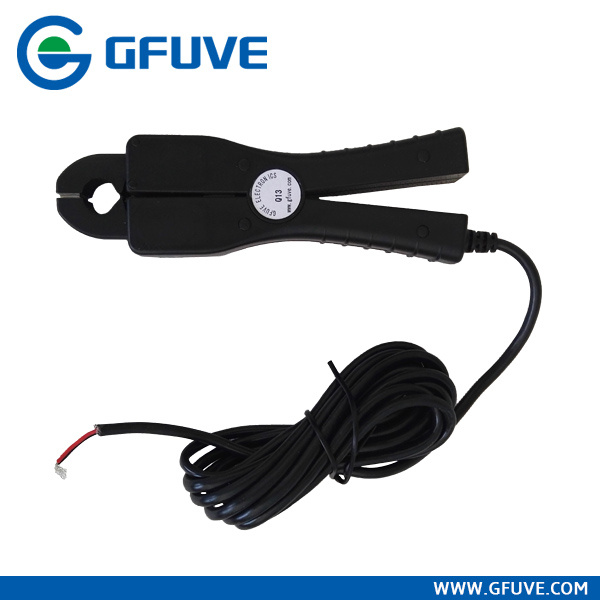

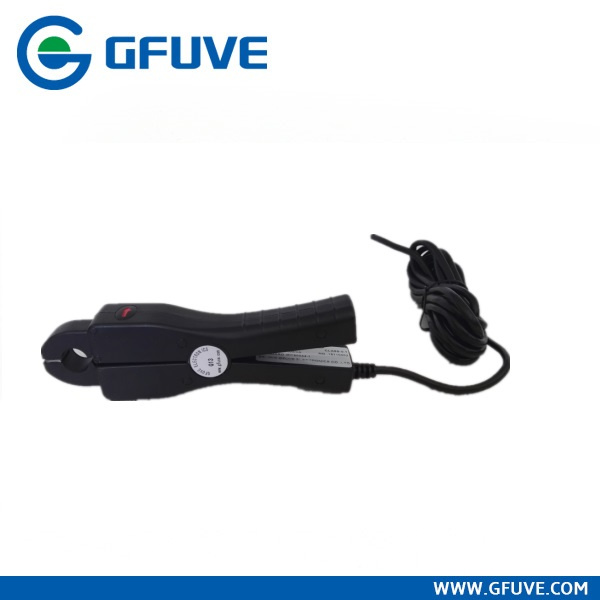

Q13 High quality AC 100A Electronically compensated clip-on CT

The model Q13 electronically compensated clip-on CT's has been designed for the measurements of currents in the range of 10 mA up to 100 A. Their small size makes them particularly handy when working in cramped spaces such as meter installations or circuit breaker boards.
FEATURES
Suitable for 10A-100A cable online measurement.
Holding wire diameter: φ13mm
Dimension: 52.5mm×136.5mm×28mm
Load capacity: ≤4Ω
Installation: clamp type
Output mode: lead output
PARAMETERS
Electrical parametersMechanical parameters

Ratio	1000: 1 or 2000:1 (customized)
Accuracy class	0.1%, 0.2%
Primary current	0 - 100A AC
Secondary current	0 - 100mA AC (customized)
Max. Cont. Input current	120A
Over voltage category	CAT III 600V
Output signal	100mA AC at nominal input current
Frequency range	40Hz-2000Hz
Dielectric strength	3KV 50Hz/60Hz at 1 minute
Temperature range	-20°C to +55°C
Output	2.5 meter cable with D01 connector
Max. voltage not insulated conductors	600 V
Standard	EN 61010-1, EN 61010-2-032
Installation	clamp type
Output mode	lead output(2.5m)

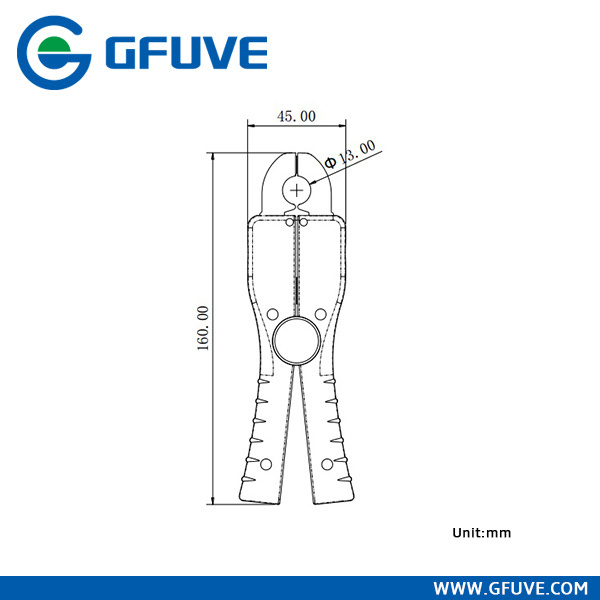

Dimensions (L x W x H) (mm)	48 x 179 x 27
Weight (g)	300
Holding wire diameter (mm)	φ13
Max. jaw opening (mm)	13
