| Prod Model: |
QL-31A |
| Stardard: |
All Metal for Industrial Environments |
| Accuracy: |
0.03%Fs |
| Compensation: |
Premium Temperature Compensation |
| Loading Way: |
Tension and Compression |
| Capacity: |
0~500kg |
| Product Name: |
S-Beam Load |
| Material: |
Aluminum Alloy |
Product Description
Product Description

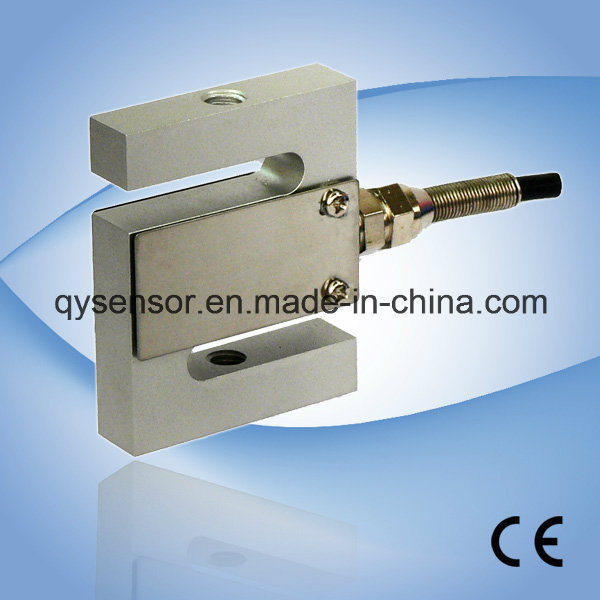

High Performance Environmentally Protected S-Beam Load Cells
QL-31A IP66 QL-31A with S type 5kg load cells, hang load cells are available in the capacities from 1 kg to 500 kg
S beam style. Tension and/or compression loading.
Aluminum-Alloy material,Silicon adhesive sealed inside,surface anodized, waterproof, anti-corrosion and suitable for all kinds of environment.
S beam type structure design.Tension and/or compression loading.
Suitable for crane scale, portable scale and other electronic weighing devices.
1.Capacity : 0kg to 500kg S-beam load cell
2.Defend grade: IP66.
3.High accuracy,reliable performance
4.S beam type structure design,Tension and/or compression loading and easy installation
Technical Specifications
| Specifications: |
capacity | Kg | 1~500 |
safe overload | %FS | 120 |
ultimate overload | %FS | 150 |
rated output | mV/V | 2.0 ± 0.004 |
excitation voltage | Vdc | 9 ~ 12 |
combined error | %FS | ± 0.03 | ± 0.02 |
zero unbalance | %FS | ± 1 |
non-linearity | %FS | ± 0.03 | ± 0.02 |
hysteresis | %FS | ± 0.03 | ± 0.02 |
repeatability | %FS | ± 0.02 | ± 0.02 |
creep | %FS/30min | ± 0.03 | ± 0.02 |
input resistance | Ω | 350 ± 5 |
output resistance | Ω | 350 ± 3 |
insulation resistance | M Ω | ≥ 5000 @ 100 Vdc |
operating temperature range | °C | -20~ +55 |
compensated temperature range | °C | -10 ~ +40 |
temperature coefficient of SPAN | %FS/10°C | ± 0.02 | ±0.015 |
temperature coefficient of ZERO | %FS/10°C | ± 0.03 | ±0.02 |
Electrical connection:
Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter : 5mm
Cable length : 3 m
The cable length could be chose by customer's application.
Ordering code: model-range- rated output-accuracy-defend grade- the length of cable
Example: QL-31A-100kg-2.0mV/V-0.03%FS-IP66-3m

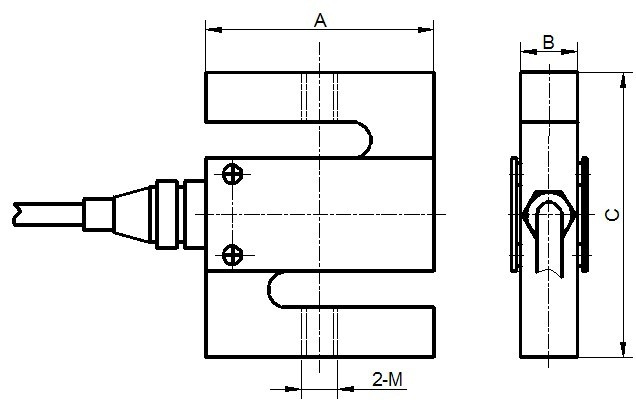

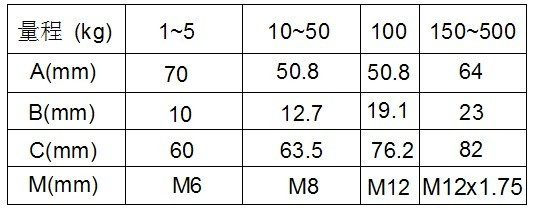

Electrical connection and Dimensions:(dimension unit:mm)
Packaging & Shipping
- Standard exporting package: each unit has individual box and packed in paper box. Waterproof protect.
- According to the clients requirement
Our Services
- We are committed to providing a high quality,and responsive services to all clients
- Detailed informations, specific and price of products will be provided quickly after receiving your inquiry.
- Quality assurance: All products will be make sure the quality in a year, and replace new product with any quality problems. All products will be checked by our quality-control and enclose with testing data.
- Packageing: well box packed and provide optimal freight for you refrence.
- All products OEM available
