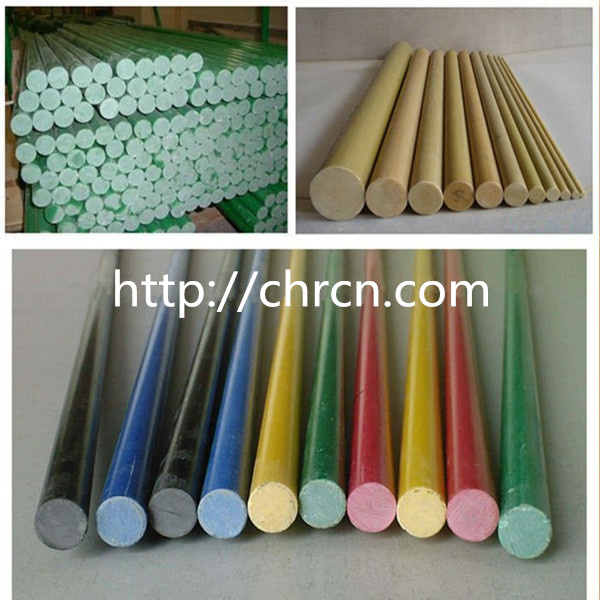

High Quality Epoxy Glass Cloth Rod 3841

Name: High Quality Epoxy Glass Cloth Rod 3841
Brand: all-electronics-online.com
SKU: 703481352
Availability: InStock
Rating: 4.9 (104 reviews)

Price:	US $ 3kg
Trade Terms:	FOB,CFR,CIF
Min Order:	300kg
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	3841
Markets:	South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia
Length:	1000mm
Dia:	8mm-300mm
Thermal Grade:	B Class
Storage Life:	1 Year
Application:	Switch Baseplate
Type:	Solid
Chemistry:	Inorganic Insulation
Thermal Rating:	B 130
Maximum Voltage:	<10KV
Material:	Epoxy Resin
Color:	Green Blue Black
Brand:	Chr

Product Description

1 .Description: Epoxy glass cloth laminated rod is made from electrical glass cloth that impregnated with epoxy resin under pressure and heat, with Mechanical and electrical application, good moisture resistance.3840, 3841 (China standard) is in accordance with FR4, G10 (NEMA standard)

2.Specifications:
1).Rod include 3840,3841
2). If need F grade fire resistance, we need supply 3841F
3). Dia: 8mm to 300mm
4). Length: 1000mm
5).Thermal Grade: B
3.Color: yellow, red , green, black
4. Application:
It is widely used for the insulating spare parts of the electrical appliances and transformers

Properties				Grade
Properties				FR4 Rod
Properties	Units			3840	3841	3841F
Density		Dia(mm)	g/cm3	1.70-1.79	1.70-1.79	1.70-1.79
Water absorption rate (D-24/23)	≤	6	%	-	0.5	0.5
		13		-	-	-
		25		-	-	-
	>	25~51		-	-	-
Flexural strength	≥		MPa	343	241	241
Tensile strengh	≥		MPa	196
Compression strength (Axial)	≥		MPa		241	241
Insulation resistance parallel to laminations
A: Under normal condition	≥		W	1.0×1010
D-24/23: Immersion in water	≥		W	1.0×107
Breakdown voltage parallel to laminations (in transformer oil)	≥		KV	15	15	15
	≥		KV	(90±5°C)	(90±5°C)	(90±5°C)
Flammability			-			FVO
Color			-	Natural	green	Green
Reference standard			-

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
