| Prod Model: |

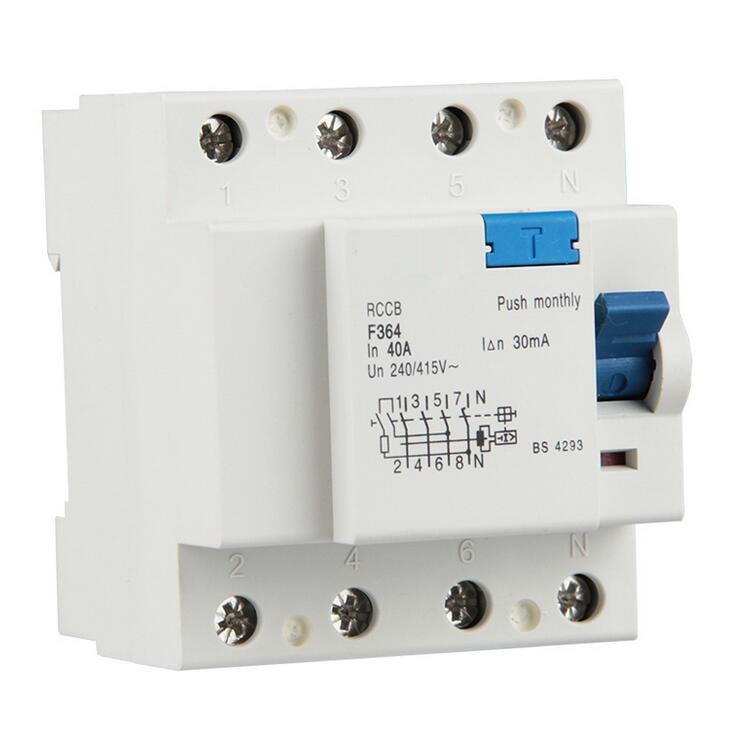

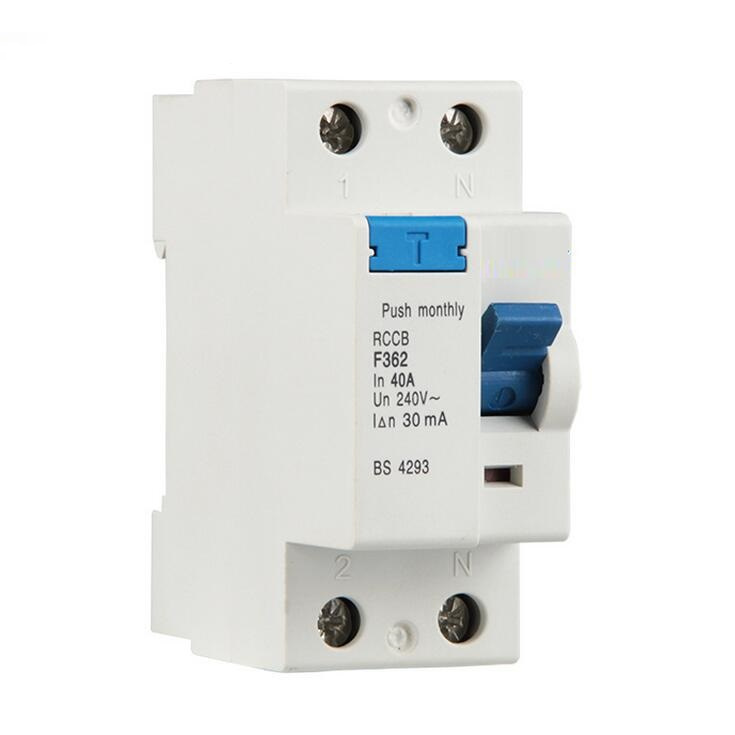

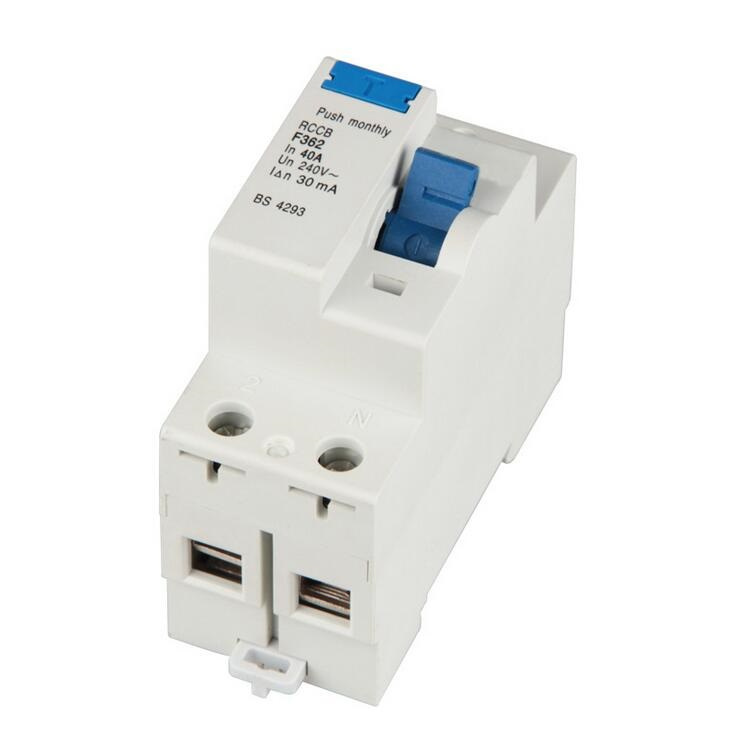

F360 F364 F362 |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
ELCB |
| Certification: |
CCC |
| Poles Number: |
2,4 |
Product Description
Residual Current Circuit Breaker provide the function of isolation switching and earth leakage protection of electrical circuits.And also provide the indirect protection of the operator's body against the dangerous effects of electric current and provide the protection of the fire caused by the electrical circuit fault.
Standard: IEC61008
Advantage
- Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
- Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality;
- The fast and flexible production form aim at the customer require;
- The deliveries exactly in accordance with customer orders
- The fast transportation.
- Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.
Construction Features:
- Measuring component and buckling component of products is located between enter line end and entrance line end ;
- Movement characteristic of products can not be changed with outside mechanical tool ;
- The operating organization has the free function to take off and buckle;
- Operate part can not be taken down from the shell outer of products , the shell can not influence the operating organization to work , the accessory group which replace the feelers pressure, should guarantee the feelers pressure does not change while running.
Normal operation and mounting requirement
- Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
- Altitude above sea level less than 2000 m.
- Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
- Installation class II or III.
- Pollution class 2.
- Installation method DIN Rail mounting type.
- The external magnetism shall not be more than 5 times of terrestrial one.
- Product shall be installed at the place where there shall be no severe impact and vibration.
- Product shall be vertically mounted onto standard Din rail 35mm.
RCCB Mode | Electro-magnetic type, electronic type |
Residual current characteristics | AC type, A type, C type |
RCCB Pole No. | 2, 4 Pole |
Rated current(A) | 16, 20, 25, 32, 40, 63, 80, 100A |
Rated residual operating current IΔn(mA) | 10, 30, 100, 300, 500mA |
Rated frequency | 50/60Hz |
Rated voltage | 220-240Vac / 380-415 Vac |
Rated conditional breaking current Inc | 6000A |
Electro endurance | 6000 cycles |
Mechanical endurance | 20,000 cycles |
Connection terminal | Pillar terminal with clamp |
Installation | On symmetrical DIN rail 35mm |
Standard | IEC61008/EN61008 |
Shipping And Payment Terms:
Delivery Time: 3-30 Days Based On Finally Order Quantities
Payment Terms: TT /L/C
Less Than 3000USD. 100% TT In Advance
More Than 3000USD, TT30% Deposite, The Balance See Copy Of B/L
Bigger Order: TT Or L/C
