| Prod Model: |
YJ58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
China (Mainland) |
| Usage: |
Home |
| Voltage: |
110-120V,220-240V by Customer's Requirements |
| Frequency: |
50Hz 60Hz |
| Speed: |
2500rpm Can Follow Customer's Request |
| Model Number: |
58series |
| Approved: |
CE/VDE/CCC/RoHS/TUV |
| Application: |
Moving Machinery |
| Structure: |
Electromagnetic |
| Certification: |
Ce,RoHS |
Product Description

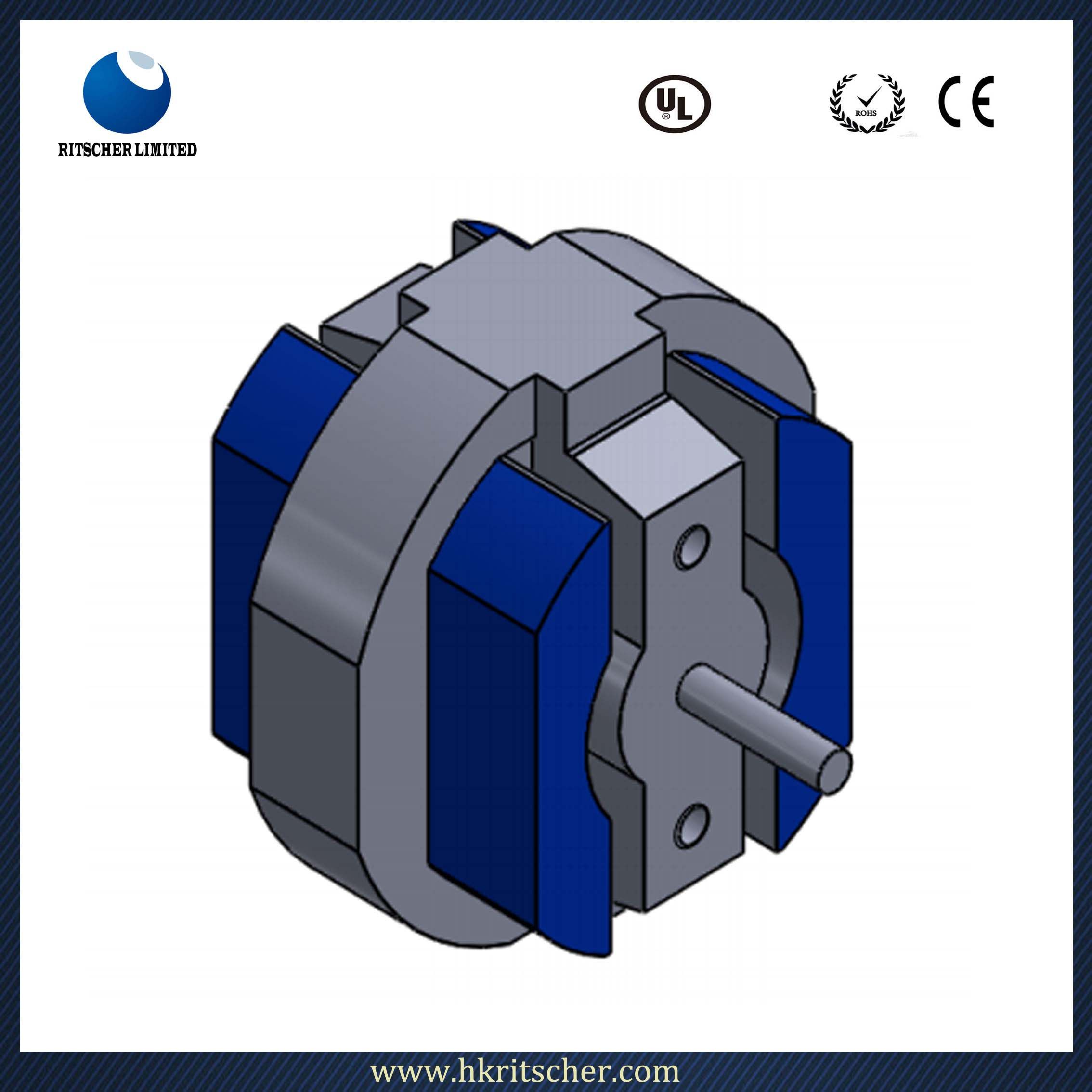

high quality fan motors for bath room
1. Stator size: 58mm*30mm
2. Safe, reliable, low noise, good starting
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Voltage: 110-240 optional
Input Current: 0.17A
Input Power: 24.5W
Speed: 2500RPM
Torque: 15.0mN. M
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
| MODEL | STATOR SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) | SPEED RATED |
YJ5812B |
12mm |
4mm |
110-240V |
10W |
6.71mN.m |
3000RPM |
YJ5816B |
16mm |
4mm |
110-240V |
13W |
6.85mN.m |
3000RPM |
YJ5820C |
20mm |
5mm |
110-240V |
15W |
8.89mN.m |
3400RPM |
YJ4830B |
30mm |
4mm |
110-240V |
50W |
12.9mN.m |
3400RPM
|

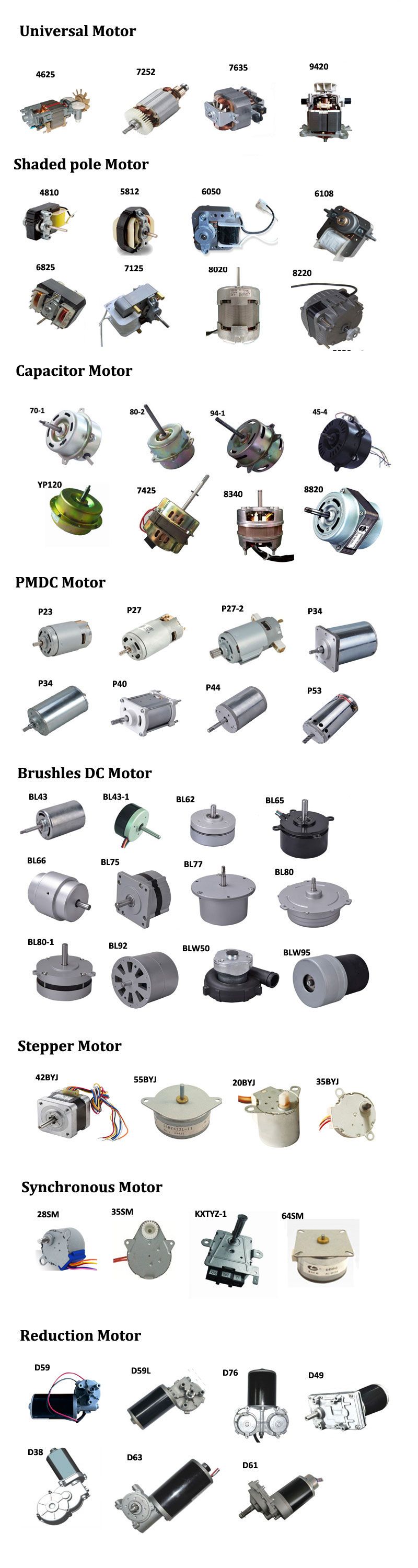

Our company FAQ for you Our company FAQ for you (1) Q: What kind motors you can provide? A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor, Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc. (2) Q: Is it possible to visit your factory A: Sure. But please kindly keep us posted a few days in advance. We need to check our schedule to see if we are available then. (3) Q: Can I get some samples A: It depends. If only a few samples for personal use or replacement, I am afraid it will be difficult for us to provide, because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples. (4) Q: Is there a MOQ for your motors? A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing. - See more at: http://www.hkritscher.com/9236-Capacitor-Motor-for-Kitchen-Hood-pd351693.html#sthash.NH2S37Kv.dpuf
