| Prod Model: |
KNEX1 |
| Color: |
Black |
| Hook: |
Yes |
| Handset: |
Yes |
| Keypad: |
No |
| Door: |
No |
| Size: |
227*293*135mm |
| Weatherproof Degree: |
IP66, Can up to IP67 |
| Button: |
Yes |
| Analogue, VoIP: |
Optional |
| Vandal Resistant: |
Yes |
Product Description

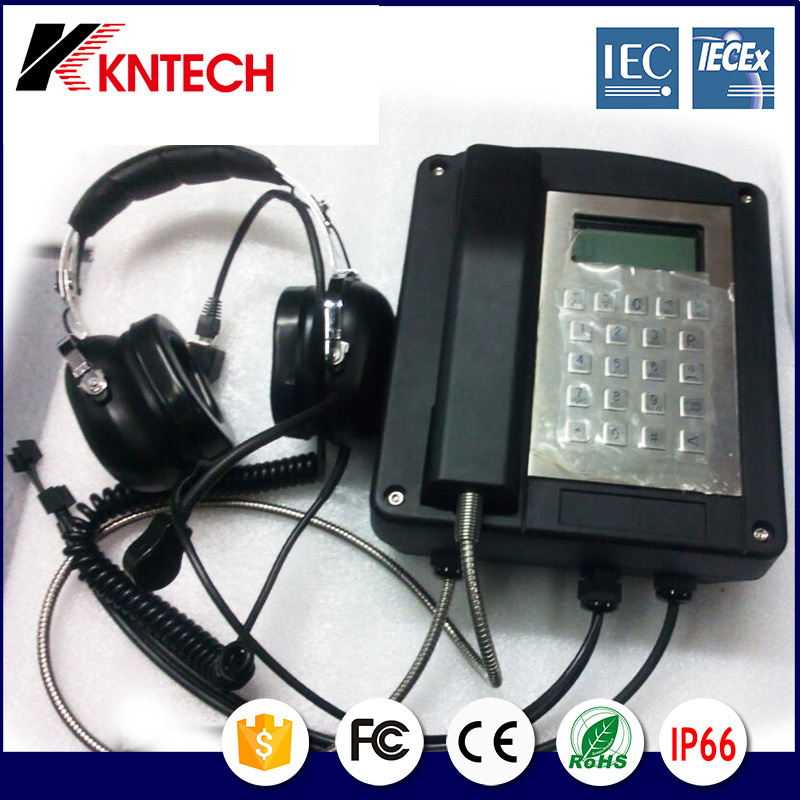

High Quality Fixed Temperature Bearable Telephone Knex1 Explosion Proof phone
| Material | SMC(Sheet Molding Compound) |
| Model | KNEX1 |
| Version | Analogue |
| Mount | Wall mounted type |
| Protection | IP66 |
| Gross weight | 5.8KG |
| Lead time | Within 3-18 working days |
| Warrantee | 18 months |
What's the Ex-proof Telephone specifications?
Analogue telephone matching with most PABX, PBX and PAX system
Robust body vandal resistant
Busy tone detection for auto release the line if line busy
Dry contact for external control automation
Auto answer
High temperature approval
Ring sound 95 dB dfd in 1 m and 10 ringing tone melodies selectable
Listening by loudspeaker: 70dB in 1m
Phone book memory: 50 address ( name & number) programmable
Stainless steel keypad for dial and manuel
Magnetic reed hook-switch
Telephone line powered. No external power or battery required
Specification
Unit dimension |
227 x 293 x 135mm |
Unit Weight |
5.8kg |
LCD Display:
|
2 line alphanumerical display ICON or number or letter
Up to 4 level back light selectable |
Keypad
|
stainless steel flash mount Waterproof IP66. Ice protection
21 keys with number and ACE letter for program |
Handset:
|
dynamic receiver with inductive coupling for hearing aids
Electret type microphone with noice cancelling
Stainless steel armoured handset hold over 170kg |
Waterproof protection |
IP66 |
Impact protection: |
IK09 |
Call Flash transfer: |
max:120ms |
Dialling procedure: |
DTMF |
External function: |
external louder speaker
additional earpiece
headset
ringl sounder |
operation temperature: |
-25°C to 60°C |
Storage temperature: |
-30°C to +70°C |
HongKong Koon Technology Ltd is the most professional manufacturer in Asia, The exclusive supplier for all Metro project in China.
We are the leading professional manufacture of most complete production line of IP66/IP67 emergency telephone, SOS phone, Weatherproof telephone, elevator telephone, tunnel trackside telephone, highway emergency phone.They are IP or PSTN/analogue telephone and wireless GSM 2G 3G. phone line powered, solar powered, or AC powered.
More than 100 models, different colors, different type of mounting, CE, FCC, IP66, ITU-T, ISO9001, EN50121 approvaled. ATEX DNV certificate under process.
Emergency telephone Application:
indoor: Airprot, transtation, bank,koisk, elevator, university, hotel, hospital, plant, oil and gas.
outdoor: tunnel, highway, marine, outdoor station, construction, bridge, steel, mine, army, scenic region,
Successful project in recent:HK MTRC contract XRL851, LRT Project in Malaysia, Bangalore Metro, HONGKONG KAIDA tunnel,HK MTR,Italian Metro,BKK Red Line Thaliand,
IKITELLI metro project, Mumbai metro in Indea, NSR project in Saudi,BHP Billiton australia, CSN Brazil, Chalco China, story bridge Austrialia,HSBC bank, China bank, ICBC, HK airport, Frankfurt France, BeiJin airport, Beijin University, HK university, etc.
About High quality and low price fixed explosion-proof temperature-bearable telephone KNEX1 market:
Our emergency telephone industrial phone are widely accepted in countries in North America such as USA, Canada, in European countries such as UK, Germany, France, Netherlands, Greece, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain etc. and Russia.
