High Quality Fpq Compsite Pin-Type Insulator

Name: High Quality Fpq Compsite Pin-Type Insulator
Brand: all-electronics-online.com
SKU: 684284232
Availability: InStock
Rating: 4.3 (79 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	FPQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage(Kv):	10kv
Rated Mechanical Bending Load(Kn):	4kn
Application:	High-voltage
Material:	Composite Polymer
Structure:	Pin Insulator
Type:	A Type Insulator
Brand:	Lovadon

Product Description

1. Item name: FPQ Compsite pin-type insulator
2. Rated voltage(kv): 10KV
3. Rated mechanical bending load(KN): 4KN
Material: Silicon Rubber / Polymer
Rated Voltage: 10-35KV
One-minute power frequency withstands voltage, 50Hz, wet. (kV): 40KV
Lighting impulses withstand voltage, 1.2/50μs positive, dry. (kV): 90kV
Minimum Creepage distance (mm): 460mm
Minimum mechanical load (kN): 6kN
Standard: IEC61109

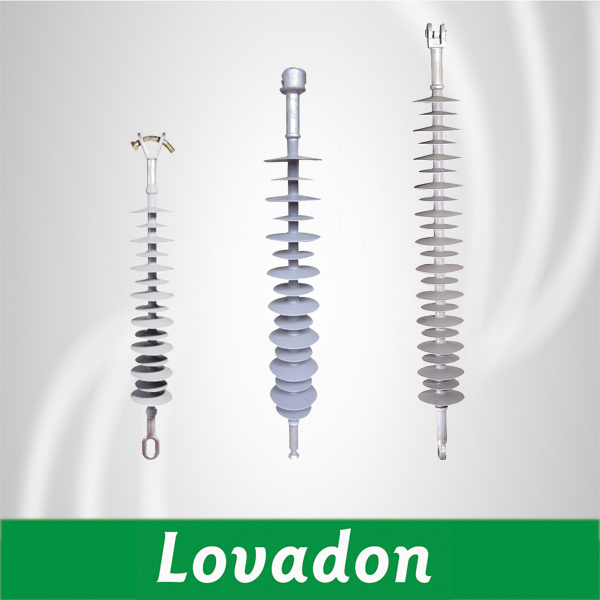

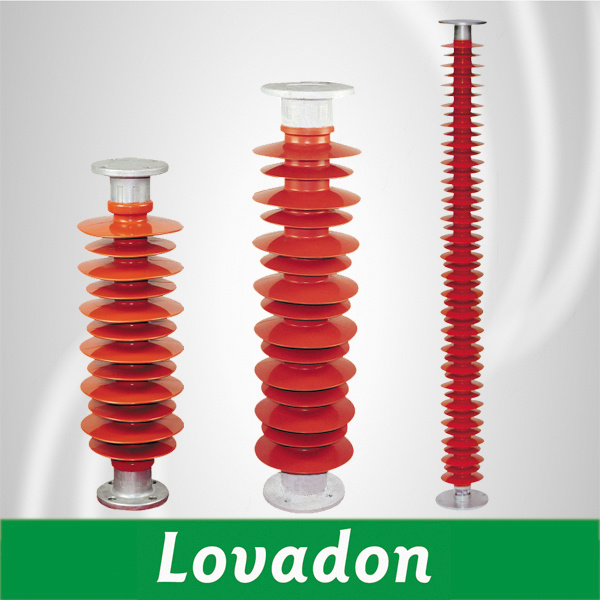

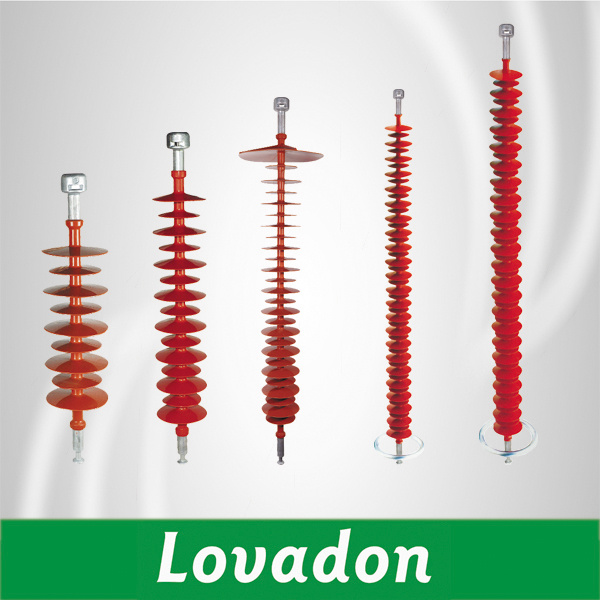

This series product are composed of silicon rubber for sheds/ housing, glass-fiber reinforced epoxy resin rod core and hop DIP galvanized metal fittings. It has good mechanical performance and electric performance compared with porcelain insulators.

We can offer OEM service according to customers' drawing and specified requirements, welcome to contact us.

For your reference under below is the main technical parameter of each model type.

1.Specifications
Product Model	Rated voltage (KV)	Rated mechanical bending load (KN)	Structure height H(mm)	Min Arc distance(mm)	Min creepage distance(mm)	Lightning impulse withstand voltage (peak)(KV)	1 min P.F withstand voltage (wet)(Vitrual value) (KV)
FPQ-10/4T16	10	4	250	165	420	105	42
FPQ-10/4T20	10	4	215	125	280	75	42
FPQ-10/5T20	10	5	250	165	370	105	42
FPQ-24/8	24	8	320	215	715	150	75
FPQ-33/5	33	5	430	320	1050	230	95
FPQ-33/12.5	33	12.5	520	480	1330	260	130
FPQ-36/8	36	8	560	460	1160	230	95

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
