High Quality Fr4 Multilayer Rogers PCB Board Prototype
| Price: |
US $ 0.05-0.21/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Fl9991 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Thickness: |
1.6mm |
| Copper Thickness: |
1oz |
| Material Type: |
Fr4 |
| Surface Treatment: |
HASL Lead Free |
| Solder Mask: |
Green, Red, Blue, Black |
| Silk Screen Color: |
White |
| Board Layer: |
1-50 |
| Shipping Type: |
DHL, UPS, TNT, EMS, FedEx etc |
| Packing Type: |
Carton + Vacumm |
| Lead Time: |
5-7 Days |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V1 |
| Base Material: |
Fr4 |
| Brand: |
Fastline |
Product Description
Product Description
High Quality Fr4 Multilayer Rogers PCB Board Prototype
Commodity Introduction

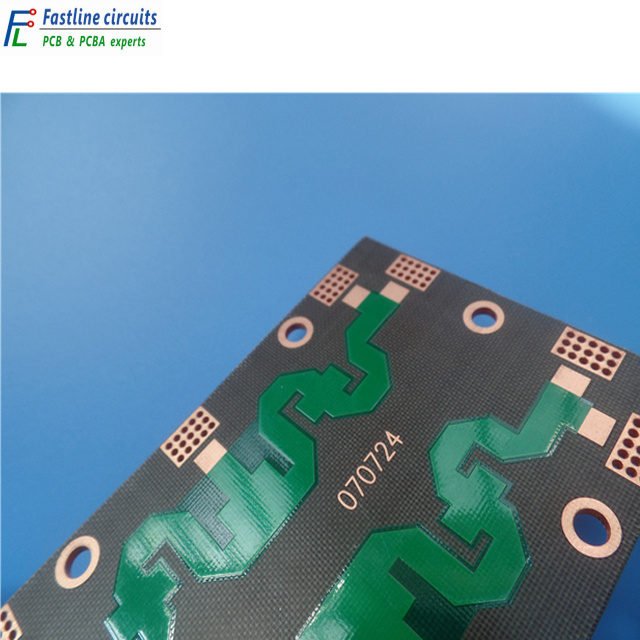

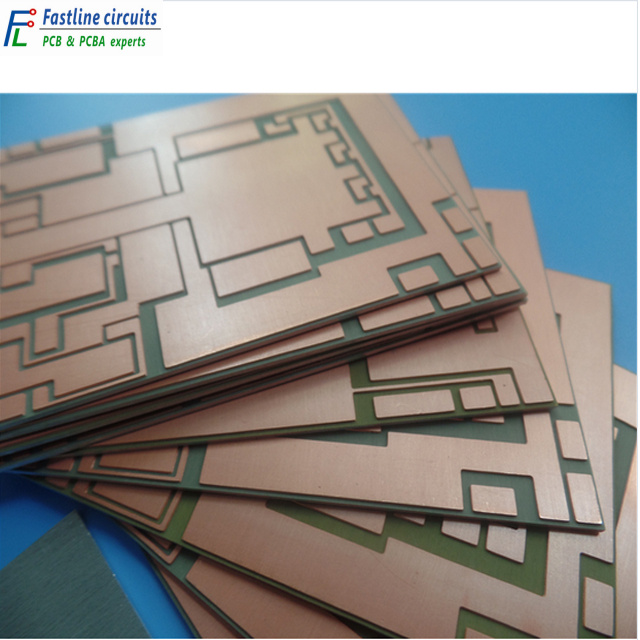

This is a type of 4 layer high frequency circuit board at 1.0mm thick for the application of Radar RF. The base laminate is from RogersCorp RO5880 with prepreg RO5880.Green solder mask and White silkscreen on top side. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 20 panel boards are packed separately. There're blind via from top to inner layer 1 which increase the difficulty of making the plate.
Parameters & Data Sheet| Number of Layers | 4 |
| Board Type | Multilayer PCB |
| Board Thickness | 1.00 mm +/-0.1 |
| Board Material | RO5880 6.6mil, RO4350B 20mil |
| Board Material Supplier | Rogers Corp |
| Tg Value of Board Material | 280ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | 1 oz (1.4mil) |
| Surface Cu thickness | 1 oz (1.4mil) |
| |
| Solder Mask Type and Model No. | LP-4G/G-05 |
| Solder Mask Supplier | NANYA |
| Solder Mask Colour | Green |
| Number of Solder Masks | 1 |
| Thickness of Solder Mask | 15.3 um |
| |
| Type of Silkscreen Ink | S-380W |
| Supplier of Silkscreen | TAIYO |
| Color of Silkscreen | Whie |
| Number of Silkscreen | 1 |
| |
| Mininum Trace (mil) | 5.0 mil |
| Minimum Gap(mil) | 4.9 mil |
| |
| Surface Finish | Immersion Gold |
| RoHS Required | Yes |
| Warpage | 0.21% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles. No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
| Workmanship | Compliance with IPC-A-600H & IPC-6012C Class 2 |
| Hole Wall Cu Thickness | ≥20 um | Hole Wall Cu Roughness | ≤25.4 um |
| NO. | A | B | C | D | E | F | AVE |
| 1 | 22.800 | 22.300 | 23.700 | 23.700 | 22.300 | 24.500 | 23.000 |
| 2 | 27.000 | 22.300 | 22.500 | 22.500 | 22.500 | 22.600 | 23.600 |
| 3 | 23.000 | 22.300 | 27.000 | 27.000 | 22.300 | 22.800 | 23.400 |
| NO. | Required Dimension (toerance) | Actual dimension |
| 1 | 97.00 | ±0.15 | 97.02 | 97.01 | 97.01 | 97.02 |
| 2 | 100.00 | ±0.15 | 100.02 | 100.01 | 99.99 | 100.01 |
| NO. | Requerment Dimension (tolerance) | PTH/NPT | Actual dimension |
| 1 | 0.250 | ±0.076 | Y | via | via | via | via |
| 2 | 0.406 | ±0.076 | Y | via | via | via | via |
| 3 | 3.174 | ±0.076 | Y | 3.200 | 3.175 | 3.175 | 3.200 |
Our service: | PCB capability and services: |
1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service. |
| 2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc. |
| 3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment. |
| 4. Quantities range from sample to mass order |
| 5. 100% E-Test |
| SMT(Surface Mounting technology),DIP. |
| 1. Material Sourcing Service |
| 2. SMT assembly and Through hole components insertion |
| 3.100% AOI testing |
| 4. IC pre-programming / Burning on-line |
| 5.ICT testing |
| 6.Function testing as requested |
| 7.Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc) |
| 8.Conformal coating |
| 9.OEM/ODM also welcomed |
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
