| Prod Model: |
57HSG76-3004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1..8 |
| Frame Size: |
57mm*57mm |
| Current: |
3.0A |
| Resistance: |
0.9ohm |
| Inductance: |
3.5mh |
| Holding Torque: |
18kg.Cm |
| Motor Body Length: |
76mm |
| Lead Wiring: |
4 |
| Number Of Stator: |
Two-Phase |
| Excitation Mode: |
HB-Hybrid |
| Type: |
Magnetic-Electric |
| Application: |
Automatic Machine |
| Operate Mode: |
Driver |
| Certification: |
CE |
| Brand: |
Jss |
Product Description
Our stepper motors are widely used in stage lighting control, security surveillance, home appliance, video equipment, laserworkstation, carving machine, automotive, office automation, smart toy, digital controlled machinery and medical instrument.

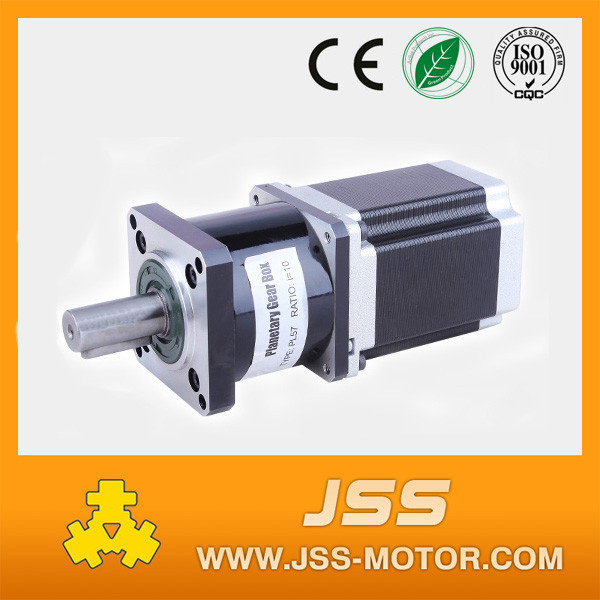

High quality geared stepper motor nema 23
Product Description:
Technique parameter:
Step Angle |
1.8° |
Step Angle Accuracy |
±5% (full step,no load) |
Resistance Accuracy |
±10% |
Inductance Accuracy |
±20% |
Temperature Rise |
80°CMax.(rated current,2 phase on) |
Ambient Temperature |
-10°C-+50°C |
Insulation Resistance |
100MΩMin. 500VDC |
Dielectric Strength |
500VAC for one minute |
Shaft Radial Play |
0.06Max.(450 g-load) |
Shaft Axial Play |
0.08Max.(450 g-load) |
gearbox for nema 23 stepper motor |
| TYPE | gear ratio first grade | gear ratio second grade | gear ratio third grade |
| PL57 | 4;5;7;9;10 | 16;20;25;28;35;36;40;45;49;50;63;70;81;90;100 |
|
| PL57-B | 3.60;4.25 | 13;15;18 | 47;55;65;77
|
57HS Motor Name List(High Torque)
Type | Phase No. | Step
Angle | Current
(A) | Resistance
(ohm±10%) | Inductance
(mH±20%) | Holding
Torque
(kg.cm) | Wires
No. | Weight
(kg) | Body Length(mm) |
| 57HS41-0406 | 3 | 1.8° | 0.4 | 30 | 30 | 4 | 6 | 0.47 | 41 |
| 57HS41-1004 | 2 | 1.8° | 1 | 5.4 | 9.5 | 5.5 | 4 | 0.47 | 41 |
| 57HS41-1504 | 2 | 1.8° | 1.5 | 1.8 | 3.3 | 5 | 4 | 0.47 | 41 |
| 57HS41-1804 | 2 | 1.8° | 1.8 | 1.35 | 1.2 | 4 | 4 | 0.47 | 41 |
| 57HS41-2004 | 2 | 1.8° | 2 | 1 | 2.2 | 5.2 | 4 | 0.47 | 41 |
| 57HS41-2804 | 2 | 1.8° | 2.8 | 0.8 | 1.4 | 5.5 | 4 | 0.47 | 41 |
| 57HS41-3004 | 2 | 1.8° | 3 | 0.6 | 1.2 | 5.5 | 4 | 0.47 | 41 |
| 57HS41-3006 | 3 | 1.8° | 3 | 0.5 | 0.6 | 3.9 | 6 | 0.47 | 41 |
| 57HS51-0806 | 3 | 1.8° | 2 | 14 | 15 | 8 | 6 | 0.65 | 51 |
| 57HS51-1504 | 2 | 1.8° | 2 | 1.6 | 4.2 | 8.2 | 4 | 0.65 | 51 |
| 57HS51-1606 | 3 | 1.8° | 1.6 | 2.6 | 5 | 9 | 6 | 0.65 | 51 |
| 57HS51-2004 | 2 | 1.8° | 2 | 1.2 | 3 | 9 | 4 | 0.65 | 51 |
| 57HS51-2006 | 3 | 1.8° | 2 | 1.1 | 1.6 | 7 | 6 | 0.65 | 51 |
| 57HS51-3004 | 2 | 1.8° | 3 | 0.8 | 2.4 | 7 | 4 | 0.65 | 51 |
| 57HS54-1006 | 3 | 1.8° | 1 | 6.8 | 13.5 | 8.5 | 6 | 0.68 | 54 |
| 57HS54-1704 | 2 | 1.8° | 1.7 | 2 | 6.2 | 10 | 4 | 0.68 | 54 |
| 57HS54-2004 | 2 | 1.8° | 2 | 1.2 | 4 | 9 | 4 | 0.68 | 54 |
| 57HS54-2006 | 3 | 1.8° | 2 | 1.7 | 3.5 | 9 | 6 | 0.68 | 54 |
| 57HS54-2504 | 2 | 1.8° | 2.5 | 0.9 | 2.8 | 10.5 | 4 | 0.68 | 54 |
| 57HS54-3004 | 2 | 1.8° | 3 | 0.9 | 2.5 | 12 | 4 | 0.68 | 54 |
| 57HS54-4008 | 4 | 1.8° | 4 | 0.8 | 1.25 | 9 | 8 | 0.68 | 54 |
| 57HS54-4204 | 2 | 1.8° | 4.2 | 0.41 | 1.3 | 12.2 | 4 | 0.68 | 54 |
| 57HS56-1204 | 2 | 1.8° | 1.2 | 1.5 | 6.5 | 9 | 4 | 0.7 | 56 |
| 57HS56-1504 | 2 | 1.8° | 1.5 | 3.8 | 12 | 12 | 4 | 0.7 | 56 |
| 57HS56-2004 | 2 | 1.8° | 2 | 0.9 | 2.8 | 9 | 4 | 0.7 | 56 |
| 57HS56-2006 | 3 | 1.8° | 2 | 1.8 | 2.8 | 9 | 6 | 0.7 | 56 |
| 57HS56-2504 | 2 | 1.8° | 2.5 | 1 | 4 | 11 | 4 | 0.7 | 56 |
| 57HS56-2804 | 2 | 1.8° | 2.8 | 0.9 | 3 | 12.6 | 4 | 0.7 | 56 |
| 57HS56-3004 | 2 | 1.8° | 3 | 0.9 | 2.8 | 11 | 4 | 0.7 | 56 |
| 57HS56-3508 | 4 | 1.8° | 3.5 | 1.1 | 2.6 | 12.5 | 8 | 0.7 | 56 |
| 57HS56-4204 | 2 | 1.8° | 4.2 | 0.4 | 1.2 | 12 | 4 | 0.7 | 56 |
| 57HS64-2004 | 2 | 1.8° | 2 | 1 | 4 | 12 | 4 | 0.75 | 64 |
| 57HS64-3004 | 2 | 1.8° | 3 | 1.3 | 2.2 | 12 | 4 | 0.75 | 64 |
| 57HS64-4204 | 2 | 1.8° | 4.2 | 0.45 | 1.3 | 15 | 4 | 0.75 | 64 |
| 57HS76-1004 | 2 | 1.8° | 1 | 6 | 20 | 20 | 4 | 1 | 76 |
| 57HS76-1006 | 3 | 1.8° | 1 | 8.6 | 14 | 13.5 | 6 | 1 | 76 |
| 57HS76-2004 | 2 | 1.8° | 2 | 4.3 | 16.2 | 24 | 4 | 1 | 76 |
| 57HS76-2306 | 3 | 1.8° | 2.3 | 2.5 | 5.3 | 13 | 6 | 1 | 76 |
| 57HS76-2504 | 2 | 1.8° | 2.5 | 1.8 | 6.5 | 18 | 4 | 1 | 76 |
| 57HS76-2804 | 2 | 1.8° | 2.7 | 1.1 | 3.6 | 18 | 4 | 1 | 76 |
| 57HS76-3004 | 2 | 1.8° | 3 | 1.1 | 2.3 | 15 | 4 | 1.1 | 76 |
| 57HS76-3004 | 2 | 1.8° | 3 | 1 | 1.6 | 18 | 4 | 1 | 76 |
| 57HS76-3006 | 3 | 1.8° | 3 | 1 | 1.6 | 13.5 | 6 | 1 | 76 |
| 57HS76-4004 | 2 | 1.8° | 4 | 0.6 | 2.2 | 18 | 4 | 1 | 76 |
| 57HS76-4208 | 4 | 1.8° | 4.2 | 1.2 | 2.2 | 15 | 8 | 1 | 76 |
| 57HS82-1004 | 2 | 1.8° | 1 | 10 | 44 | 22 | 4 | 1.3 | 82 |
| 57HS82-2506 | 3 | 1.8° | 2.5 | 2.2 | 3.8 | 18 | 6 | 1.1 | 82 |
| 57HS82-3004 | 2 | 1.8° | 3 | 1.4 | 5 | 20 | 4 | 1.1 | 82 |
| 57HS82-4004 | 2 | 1.8° | 4 | 0.55 | 4 | 19.5 | 4 | 1.1 | 82 |
| 57HS82-4006 | 3 | 1.8° | 4 | 1.2 | 2.5 | 22 | 6 | 1.1 | 82 |
| 57HS82-4204 | 2 | 1.8° | 4.2 | 0.9 | 4 | 25 | 4 | 1.1 | 82 |
| 57HS82-4208 | 4 | 1.8° | 4.2 | 1.2 | 2.5 | 21 | 8 | 1.1 | 82 |
| 57HS93-3004 | 2 | 1.8° | 3 | 1 | 4.2 | 25 | 4 | 1.1 | 93 |
| 57HS93-3006 | 3 | 1.8° | 3 | 1.5 | 2.6 | 25 | 6 | 1.1 | 93 |
| 57HS93-4004 | 2 | 1.8° | 4 | 0.8 | 2.5 | 25 | 4 | 1.1 | 93 |
| 57HS100-3004 | 2 | 1.8° | 3 | 1.4 | 5.5 | 25 | 4 | 1.5 | 100 |
| 57HS100-3504 | 2 | 1.8° | 3.5 | 0.8 | 3 | 22 | 4 | 1.5 | 100 |
| 57HS100-4004 | 2 | 1.8° | 4 | 0.6 | 1.8 | 20 | 4 | 1.5 | 100 |
| 57HS100-4208 | 4 | 1.8° | 4.2 | 1.1 | 1.8 | 20 | 8 | 1.5 | 100 |
| 57HS112-3004 | 2 | 1.8° | 3 | 1.3 | 6.5 | 30 | 4 | 2 | 112 |
| 57HS112-4004 | 2 | 1.8° | 4 | 0.9 | 4 | 30 | 4 | 2 | 112 |
| 57HS112-5008 | 4 | 1.8° | 5 | 1.4 | 3 | 28 | 8 | 2 | 112 |
