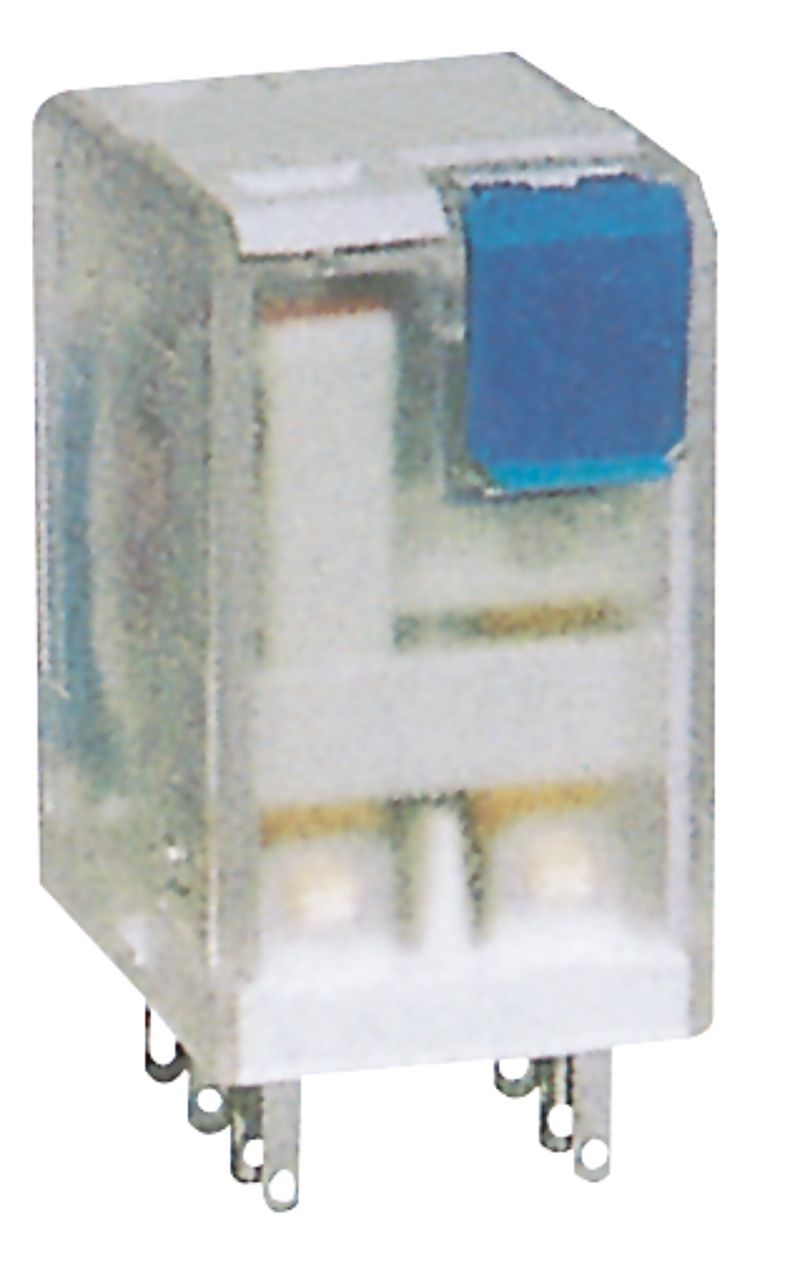

High Quality General Relay (57.02, 57.04, 70.02, 70.03 Type)

Prod Model:	57.02, 57.04, 70.02, 70.03 Type
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	35g, 85g
Contact Capacity:	10A 250VAC, 5A 250VAC
Coil Nominal:	DC 6V to 110V, AC 6V to 240V
Coil Nominal Power:	DC0.9W, AC 0.9va to 1.2va

Product Description

Application
The following general relay is widely suitable for DC or AC circuit switching in various automation devices, process control and communication equipments etc.It is characteristic of stable perfomance, high reliability, capable of making and breaking relatively large load current, easy in maintenance and inspection as well as long service life.The plug-in base of the relay is suitable for using with standard 8 and 11 pins socket.

Type	Weight	Contact capacity	Coil nominal voltage	Coil nominal power	Insulation resistance	Contact resistance	Dielectric strength	Expectancy(ops) Electrical Mechanical	Operating temperature
55.02	35g	10A 250VAC 10A 30VDC	DC  6V to 110V AC 6V to 240V	DC0.9W AC 0.9VA to 1.2VA	100M¦	50m¦	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	--40 to 60
57.04	35g	5A 250VAC 5A 30VDC	DC  6V to 110V AC 6V to 240V	DC0.9W AC 0.9VA to 1.2VA	100M¦	50m¦	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40 to 60
70.2	85g	10A 250VAC 10A 30VDC	DC  6V to 220V AC 6V to 380V	DC1.5W AC 2.0VA to 2.8VA	100M¦	50m¦	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40 to 60
70.3	85g	10A 250VAC 10A 30VDC	DC  6V to 220V AC 6V to 380V	DC1.5W AC 2.0VA to 2.8VA	100M¦	50m¦	BOC 1000VAC BCC 1500VAC	Ele 100,000 Me 10,000,000	-40 to 60
