High Quality Glass Fabric Adhesive Tape Replace 3m 69 Tape

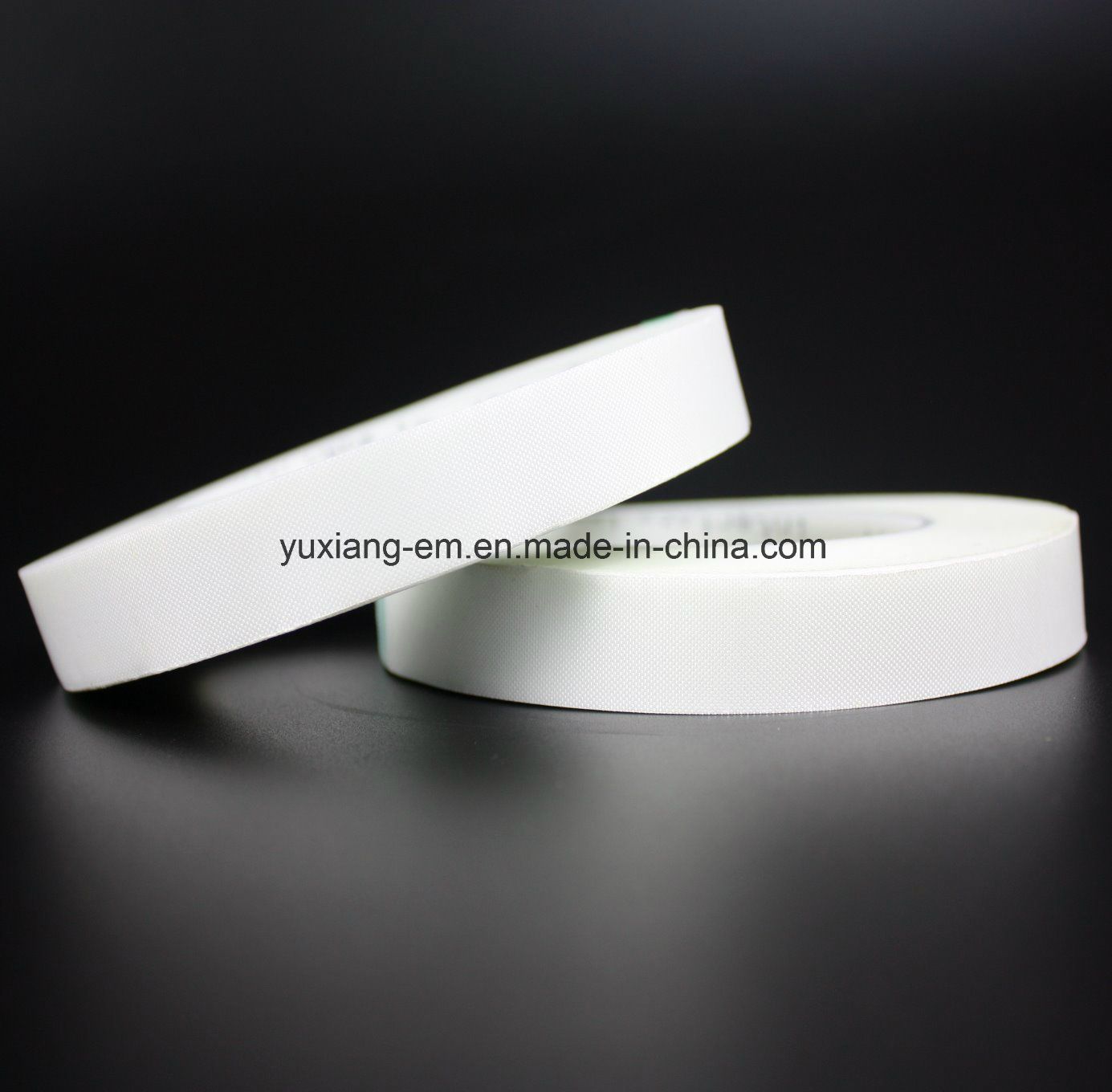

Name: High Quality Glass Fabric Adhesive Tape Replace 3m 69 Tape
Brand: all-electronics-online.com
SKU: 810208905
Availability: InStock
Rating: 4.7 (117 reviews)

Price:	US $ 3.05-3.99/Square Meter
Min Order:	1000/Square Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YX-10
Application:	Transformer\ Electrical Equipment
Type:	Insulation Tape
Chemistry:	Inorganic Insulation
Thermal Rating:	H 180
Maximum Voltage:	<10KV
Material:	Glass Cloth
Brand:	Yuxiang

Product Description

General Description
Yuxiang® YX-10 electrical tape is based on high quality white glass cloth and coated with modification of high temperature resistant acrylic/silicon adhesive.
Typical Applications
Yuxiang® YX-10 electrical tape has an excellent adhesion and mechanical properties, heat resistant level F/H Class. Be mainly applied to the capacitor, reactor, transformer and motor coil winding and fixed, and so on.

Typical Physical Properties Has good solvent resistance and flame retardant properties.

Item	Normal 1	Normal 2
Backing	glass cloth
Backing Thickness (mm)	0.13
Total Thickness (mm)	0.18±10%
Adhesive	Acrylic	Silicon
Adhesion to Steel (N/25mm)	≥13
Breaking Strength (N/25mm)	≥800
Elongation (%)	≥5
Dielectric Breakdown (KV)	≥3.0
Temperature Class	155ºC/180ºC	200ºC

Test Method: ASTM D 1000.
Colour: White
Storage & Usage Conditions
This tape should be stored in a cool, dry area away from direct sunlight and should be applied to surfaces which are clean, dry and free from grease, oil or other contaminants.
Supply Requirement
Length: 66m/Roll
Width:5mm~1000mm
