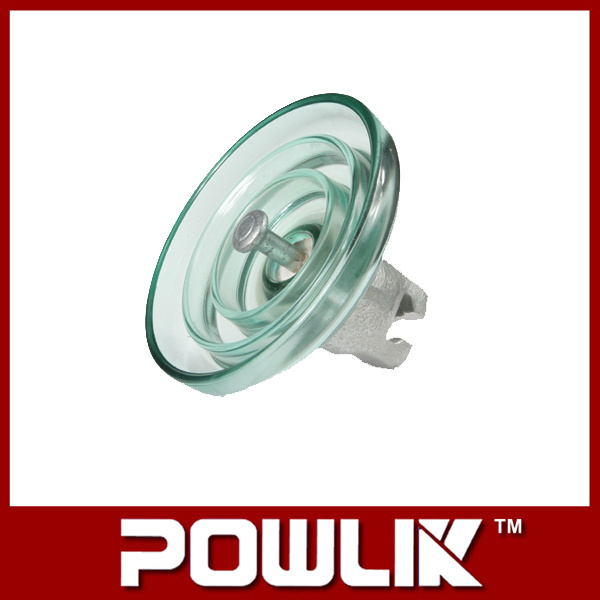

High Quality Glass Suspension Insulator (LXP-210)

Name: High Quality Glass Suspension Insulator (LXP-210)
Brand: all-electronics-online.com
SKU: 676108155
Availability: InStock
Rating: 4.6 (128 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXP-210
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Chemistry:	Glass
Thermal Rating:	250 250
Diameter:	280mm
Height:	170mm
Application:	Insulators
Structure:	Suspension Insulator
Material:	Glass
Type:	Solid
Color:	Glass
Brand:	Powlik

Product Description

LXP-210 Glass suspension insulator

Currency designation	U210B/170	U210B/170
designation	LXP3-210	LXP2-210
( mm ) Diameter D	280	280
( mm ) Spacing H	170	170
( mm ) Creepage L	400	450
( mm ) Socket soupling	20	20
( kN ) Mechanical failing load	210	210
( kN ) Mechanical routine test	105	105
( kV ) Wet power frequency withstand voltage	45	50
( kV ) Dry lightning impulse withstand voltage	110	125
( P.U ) Impulse puncture voltage	2.8	2.8
( kV ) Power frequency puncture voltage	* 130	* 130
( µV ) Rodio influence voltage	50	50
( kV ) Corona visual test	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	7.2	7.3

Our Services
1. Rich experience in ODM and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
