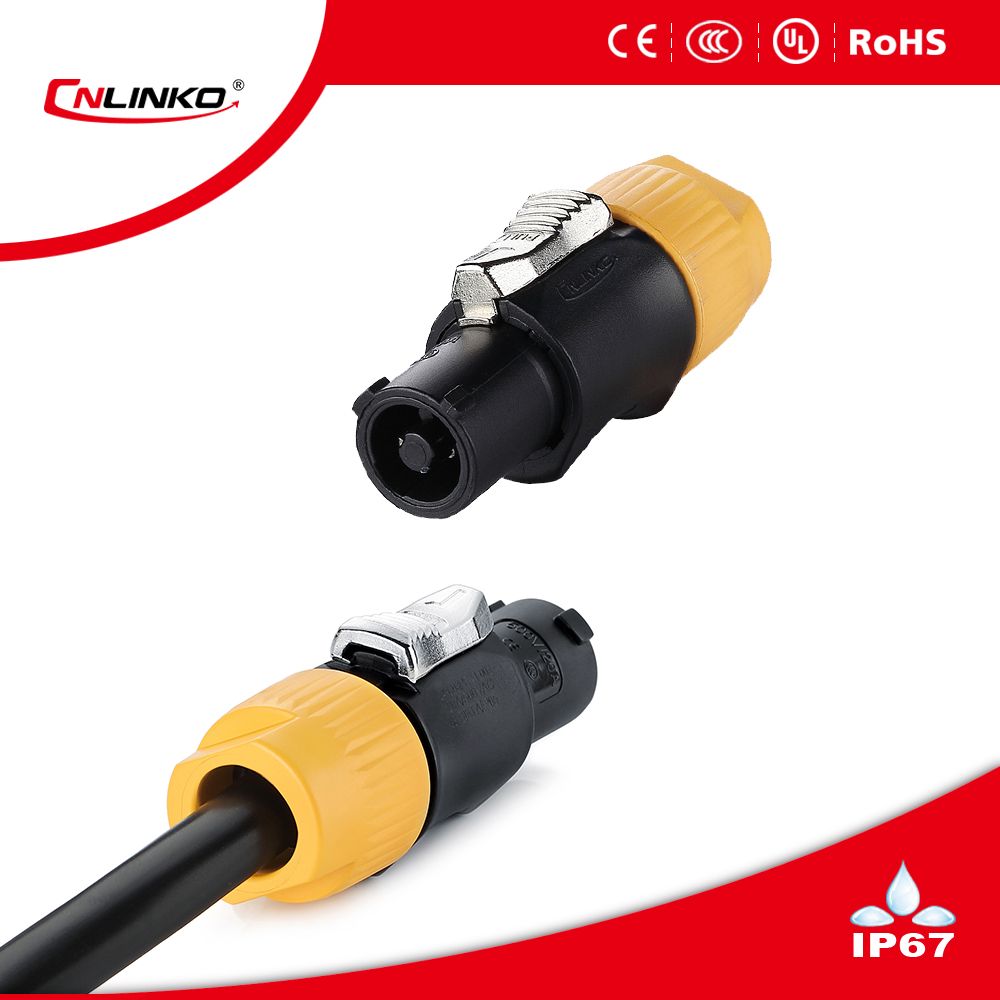

High Quality Gold Plated Powercon/Wateproof Power Connector

Name: High Quality Gold Plated Powercon/Wateproof Power Connector
Brand: all-electronics-online.com
SKU: 789697155
Availability: InStock
Rating: 4.5 (135 reviews)

Price:	US $ 5/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YF24 powercon black
Protection Level:	IP44/IP65
Current Capacity:	20A/250VAC
Color:	Yellow/Blue/Grey
Waterproof Circle:	Silica Gel
Hardware:	Zinc Alloy(Pearl Hard Chromium)
Working Temperature:	-40ºC~80ºC
Connecting Mode:	Easy Locking Type
Assembly Wire:	Soldering
Flammability Rating:	UL94-V0
Durability:	>500times
Gender:	Male
Application:	UHF

Product Description

high quality gold plated powercon/wateproof power connector

Product Datasheet:

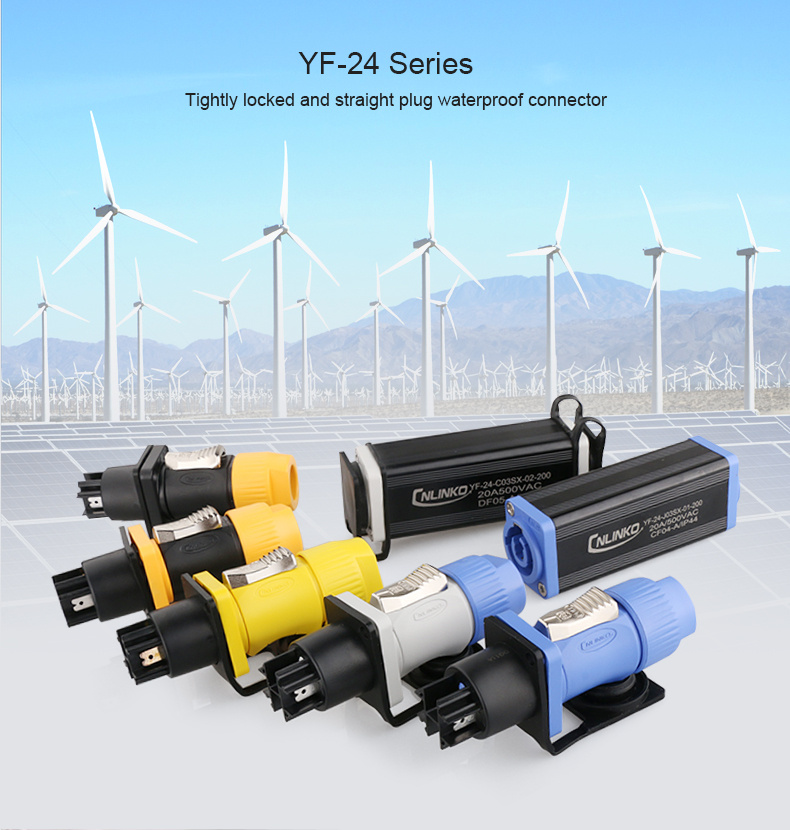

YF 24 power connector

Connecting mode:	latching lock
Protection level:	IP44/IP65
Cable specification:	2.5 mm2 ~ 4 mm2 /14~12 AWG

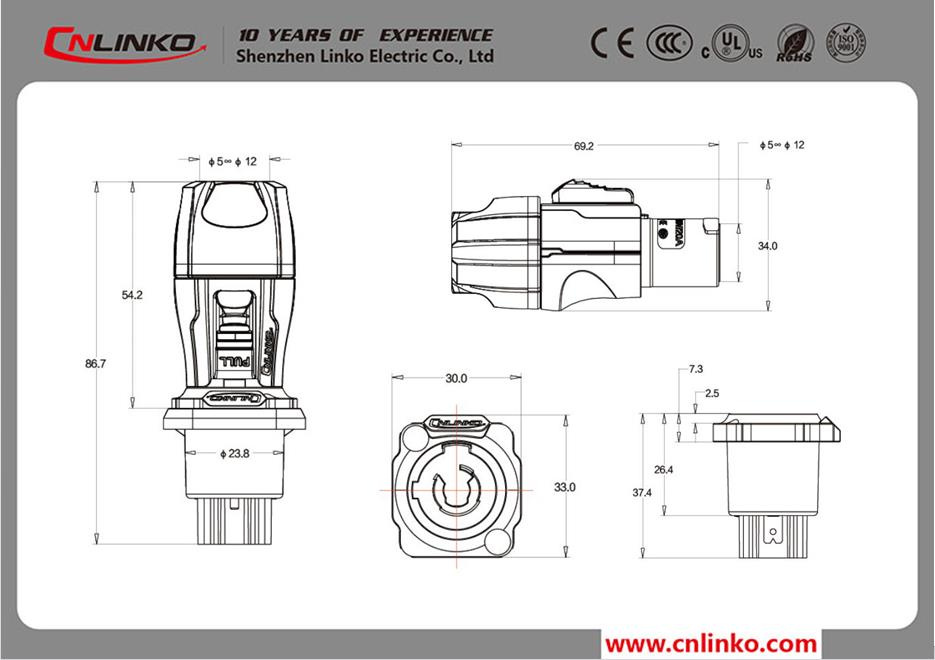

Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ3.0×3
Current rating(A):	20A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<3mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C.
Produce type:	splice connectors
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

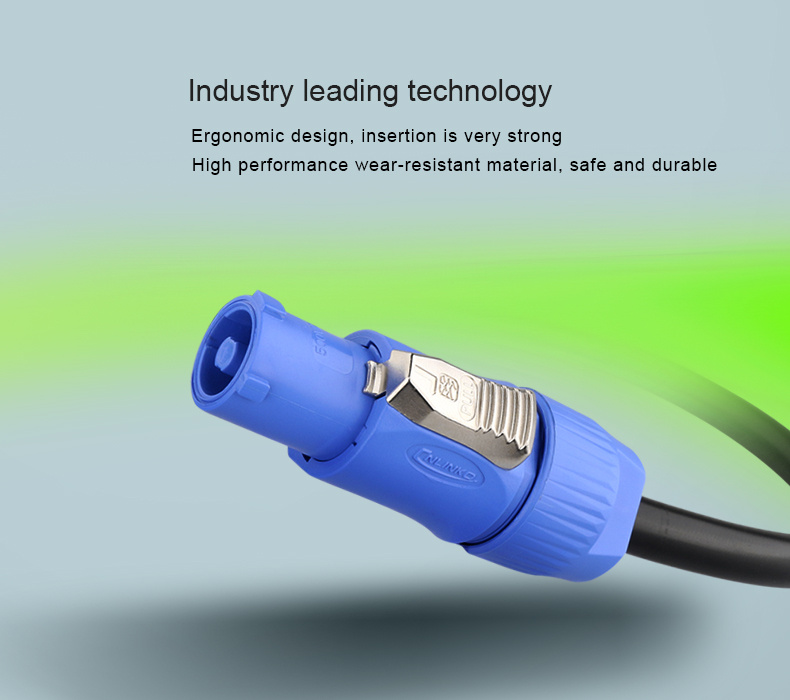

Main characteristics:
- Sealed against dust and fluid (IP44/IP65)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

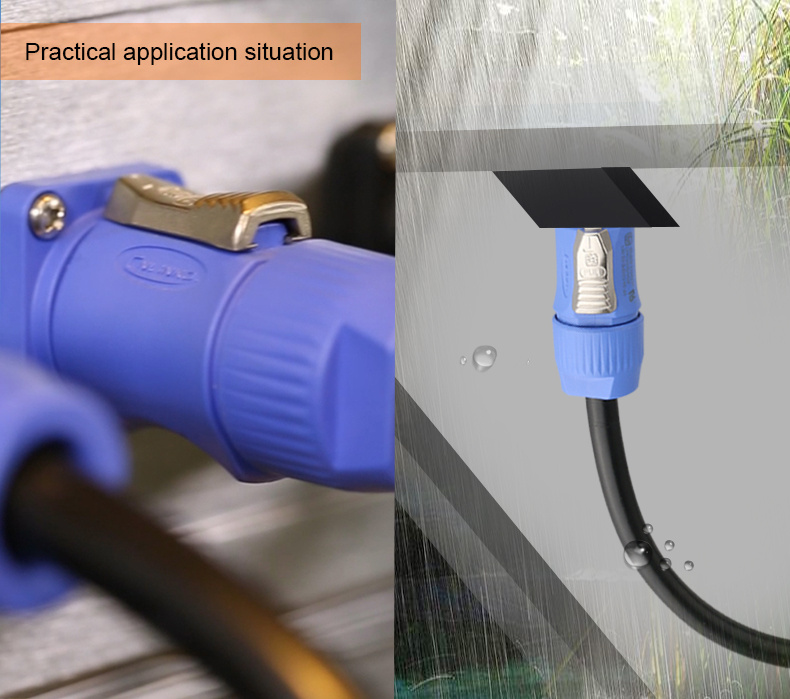

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Packaging & Shipping
1. Normally, our price is based on our box packing for splice connectors;
2. Customized packing is welcome, MOQ of printing customized box is 1000 pcs/model for splice connectors;
3. Delivery Detail: 3-5 working days after received deposit for splice connectors;
4. You may choose our shipping partner or your own partner for splice connectors;
5. 100% T/T in advance is required after confirming the order for splice connectors.

Our Services
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:

Cellphone: 0086-18312490791
Telephone:0086-0755-86960323

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
