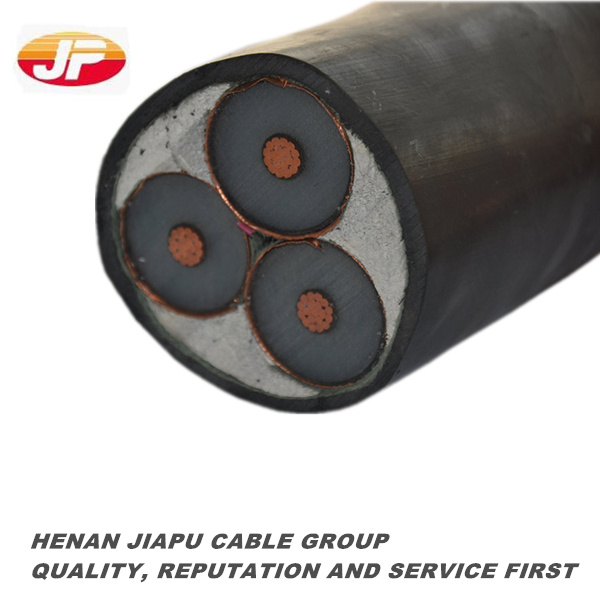

High Quality Good Price 3 Core XLPE Insulated Armoured Power Cable
| Price: |
US $ 1/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Cu/XLPE/SWA/PVC |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
SABS |
| Brand: |
SABS |
Product Description
Product description:
1). CE,ISO,SGS..Certificate
2). IEC Standard
3). Exported to Many Countries.
4) Standard :IEC60502,GB/T 12706
5).Voltage :0.6/1KV
Prief intruduce:
Voltage Rate |
3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 18/20KV,
18/30KV, 21/35KV, 26/35KV |
Cores |
1C, 3C |
Range of Nominal
cross section: |
Single core:25 mm2 ~ 630 mm2
3 cores: 25 mm2 ~ 400 mm2 |
Application |
It applies to the transmission and distribution lines with rated voltage
from 3.6/6KV to 26/35KV, to be laid directly in ground, outdoors, indoors
and in cable ducts. |
Standard |
IEC60502, BS6622, VDE0276, GB/T12706 |
Constructions |
Conductor: Class 2 annealed copper strands
Core shield: semi-conducting compound + copper tape metallic screen
Insulation: XLPE
Sheath: PVC |
Details:
Cable Type |
Designation |
Application |
Cu |
Al |
CU/XLPE/PVC |
AL/XLPE/PVC |
Cu core(Al core)XLPE insulated
PVC sheathed power cable |
Laying indoors, in tunnel,
fixed on the bracket, pipe
and buried in the soil,
the cable can not bear external
mechanical forces. |
CU/XLPE/PE |
AL/XLPE/PE |
Cu core(Al core)XLPE insulated
PE sheathed power cable |
CU/XLPE/DSTA/PVC |
AL/XLPE/DSTA/PVC |
Cu core(Al core)XLPE insulated
double of steel-tape armored PVC
sheathed power cable |
For laying indoors, in tunnel,
cable trench, or direct in ground,
able to bear external
mechanical forces, but unable
to bear large pulling force. |
CU/XLPE/DSTA/PE |
AL/XLPE/DSTA/PE |
Cu core(Al core)XLPE insulated
double of steel-tape armored PE
sheathed power cable |
CU/XLPE/SWA/PVC |
AL/XLPE/SWA/PVC |
Cu core(Al core)XLPE insulated
steel-wire armored PVC
sheathed power cable |
For laying indoors, in tunnel,
cable trench, well or direct in ground,
able to bear external mechanical
forces and certain pulling force |
CU/XLPE/SWA/PE |
AL/XLPE/SWA/PE |
Cu core(Al core)XLPE insulated
steel-wire armored PE
sheathed power cable |
Specification:
10KV 15KV XLPE Insulation Steel-Tape Armoured PVC sheath Power Cable |
| Core | Conductor | Nominal insulation thickness | Nominal sheath thickness | Overall diameter | Approx mass | Maximum DC resistance at 20ºC |
| Nominal section-area (mm) | Number and diameter of wires (mm) | XLPE insulation (mm) | PVC sheath (mm) | XLPE insulation (mm) |
CU conductor
(kg/km) |
AL conductor
(kg/km) |
CU (Ω/km) | AL (Ω/km) |
|
| 3 core | 3×25 | 7/2.52 | 4.5 | 2.6 | 52.8 | 3660 | 3192 | 0.727 | 1.2 |
| 3×35 | 7/2.52 | 4.5 | 2.6 | 55.0 | 4109 | 3454 | 0.524 | 0.868 |
| 3×50 | 7/3.00 | 4.5 | 2.8 | 58.0 | 4771 | 3835 | 0.387 | 0.641 |
| 3×70 | 14/2.52 | 4.5 | 2.9 | 62.0 | 5671 | 4360 | 0.268 | 0.443 |
| 3×95 | 19/2.52 | 4.5 | 3.0 | 65.7 | 6672 | 4894 | 0.193 | 0.32 |
| 3×120 | 19/2.83 | 4.5 | 3.1 | 68.9 | 7639 | 5393 | 0.153 | 0.253 |
| 3×150 | 19/3.17 | 4.5 | 3.2 | 72.6 | 8787 | 5979 | 0.124 | 0.206 |
| 3×185 | 36/2.55 | 4.5 | 3.4 | 77.2 | 10247 | 6784 | 0.0991 | 0.164 |
| 3×240 | 36/2.91 | 4.5 | 3.5 | 82.3 | 13045 | 8553 | 0.0754 | 0.125 |
| 3×300 | 36/3.25 | 4.5 | 3.8 | 87.5 | 15244 | 9629 | 0.0601 | 0.1 |
| | | | | | | | | |
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
