| Prod Model: |
w89 |
| MOQ: |
100kgs |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
UL |
Product Description

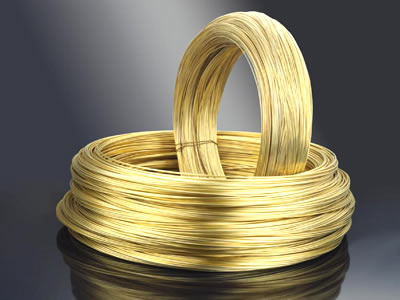

Brass wire
Brass wire is an alloy of copper and zinc. The amount of copper can be different, such as 65%, 70%, 80%, 85% and 90%. Brass wire usually is round, also has half-round and flat. It could be packed into spool wire, coil wire and cut wire, cut wire is straight or corrugate. Compared with copper wire, brass wire has better abrasion and corrosion resistance, better tensile strength, lower electricity and heat conductivity. It can be used for jewelry components, ring bands, bracelets and crafts, also can be used for crimped brushes.
Specification
- Material:
- 65% copper and 35% zinc.
- 70% copper and 30% zinc.
- 80% copper and 20% zinc.
- 85% copper and 15% zinc.
- 90% copper and 10% zinc.

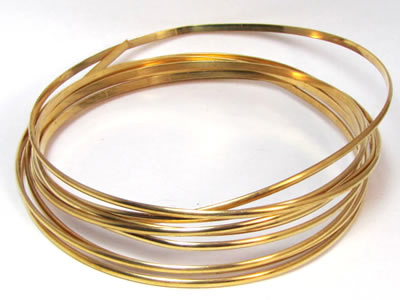

- Wire shape: round, half-round, flat.

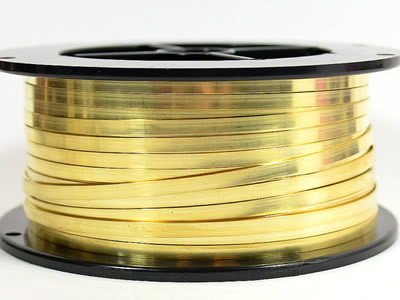

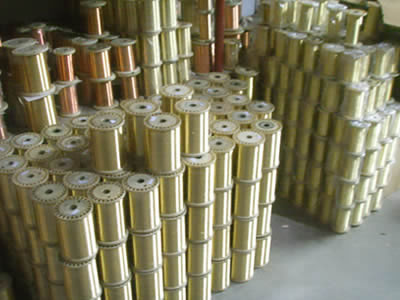

- Package type: spool brass wire, coil brass wire, cut brass wire (straight or corrugate).
- Color: golden.
- Length can be customized.
| Brass wire specification |
| Product code | Gauge | Diameter |
| mm | Inch |
| BWS-4 | 4 | 5.2 | 0.205 |
| BWS-6 | 6 | 4.11 | 0.162 |
| BWS-8 | 8 | 3.26 | 0.128 |
| BWS-10 | 10 | 2.5 | 0.098 |
| BWS-12 | 12 | 2.05 | 0.081 |
| BWS-14 | 14 | 1.63 | 0.064 |
| BWS-15 | 15 | 1.45 | 0.057 |
| BWS-16 | 16 | 1.30 | 0.051 |
| BWS-17 | 17 | 1.2 | 0.047 |
| BWS-18 | 18 | 1.02 | 0.040 |
| BWS-20 | 20 | 0.81 | 0.032 |
| BWS-21 | 21 | 0.7 | 0.028 |
| BWS-22 | 22 | 0.63 | 0.025 |
| BWS-24 | 24 | 0.51 | 0.020 |
| BWS-26 | 26 | 0.41 | 0.016 |
| BWS-28 | 28 | 0.31 | 0.012 |
| BWS-30 | 30 | 0.25 | 0.010 |
| BWS-32 | 32 | 0.2 | 0.008 |
| BWS-34 | 34 | 0.15 | 0.006 |
Features of brass wire
- Abrasion, corrosion, high temperature and spark resistance, non-magnetic.
- Acid, alkali resistance.
- Durable, dead soft, good ductility, tensile strength, bright surface.
- Can be bendable by hand.
- Convenient to transport and use.
- Brass wire tarnishes slower than copper wire.
Application of brass wire
- Used for ring bands, bracelets and crafts.
- Used for jewelry components, such as ear wires, chain mail, jump rings, wire wrapped pendants and beaded chain.
- Widely used in industrial filtration, petroleum, chemical industry, printing, electric cable and other industries.
- Corrugate brass wire can be used for crimped brushes.
Packaging
- Coil brass wire:
- Inside with plastic film and outside with hessian, then pallet.
- Inside with plastic film and outside with woven bag, then pallet.
- Spool brass wire usually packed in carton box.
- Cut brass wire is packed in carton box or wooden case with plastic film.
FAQ
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Do you provide samples?
Yes, we can provide the product samples.
Its free and freight should be collected by your side.
Q:How can I know the completion of my order?
Deposit payment---start production---transfter infor to logistic---book shipment--inform customer ETD&ETA---load container---balance payment---send documents
Q:How can I know whether you are a reliable company?
We have been in this business line since 1987,with too much exporting experience. Above listed our certifications.
Anping County Huaxi Wire Mesh Co., Ltd. Is a big wire mesh manufacturer located in Anping of Hebei Province, the famous Wire Mesh Land of China. Huaxi is specialized in wire drawing, galvanizing and wire mesh weaving. With over 100 sets of production machines, first-class technology, excellent management system and R & D capability, we have won trust and praises from many customers.
Huaxi mainly produces Stainless Steel Wire Mesh, Metal Wire, Binding Wire, Welded Wire Mesh, Crimped Wire Mesh, PVC Coated Wire Mesh, PVC Sprayed Wire Mesh, Barbed Wire, Chain Link Fence, Wire Conveyor Belt, Circle Wire, Mesh Fencing as well as other wire processed products for a wide applications in petroleum, mine, construction and other industries. Our products are well sold in China and exported far to the USA, Europe, Japan, the Middle-East and Southeast Asian countries.
We try to build our own brand and reputation with choice products, and have set up a complete system from raw material purchasing, production, inspection, packing and delivery to after-sales services. We sincerely hope to build good business relationship with you on the basis of mutual benefit.
