High Quality Insulating Laminated Tube

Name: High Quality Insulating Laminated Tube
Brand: all-electronics-online.com
SKU: 703400262
Availability: InStock
Rating: 4.9 (40 reviews)

Price:	US $ 3kg
Trade Terms:	FOB,CFR,CIF
Min Order:	500kg
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tube
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Heat-Resistance:	F 155
Storage Life:	1 Year
Standars:	ISO9001
Application:	Insulating Varnish
Type:	Solid
Chemistry:	Inorganic Insulation
Thermal Rating:	F 155
Maximum Voltage:	<10KV
Material:	Phenolic
Brand:	Chr

Product Description

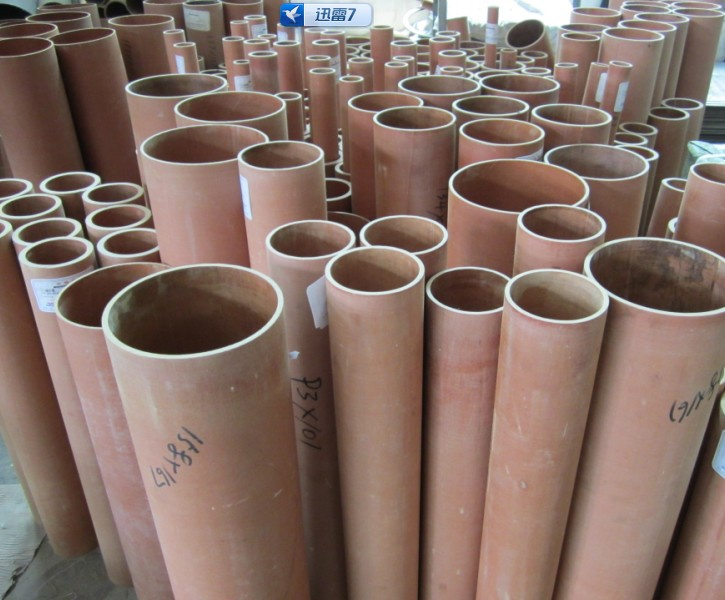

380 phenolic resin-boned cotton frabic laminated tube

Feature:

Excellent mechanical property
Heat resistance property
Excelletn magnetic permeability
Energy-saving & Environmental protection
Application:

Motor and generator groove strip/slot wedge
Reduce the motor loss, temperature rising, noise and etc
Improve the motor efficiency
Ideal energy-saving products

Basic information
Product name	380 phenolic resin-boned cotton frabic laminated tube
Brand	MJ-380
Material	Cotton facbric cloth and phenolic resin
Grade	Grade E
Technical Performance
Density	≥1.25 g/cm3
Compression strength (parallel to the axial wall layer)	≥118 Mpa
Flexural stress	≥137 Mpa
Tensile strength (perpendicular to the wall layer) radial	≥69 Mpa
The heat resistance of 130 ± 2°C in transformer oil	≥4 H
The thermal stability of 105 ± 2°C	≥24 H
Water absorption sample thickness (mm)	1.5-3 ≤2.0%
	3.1-4.5 ≤1.5%
	4.6-6.0 ≤1.3%
	6.1-9.0 ≤1.2%
	≥9.0 ≤1.0%
Storage period	6 Month(Below 5°C)

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
