| Prod Model: |
LW30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Scheme: |
N/O,N/O+N/C |
| Brand Name: |
Chana |
| Packing Type: |
Box |
| Export Market: |
Global |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Isolation Switch |
| Brand: |
Chana or OEM |
| Certification: |
RoHS |
Product Description
Specifications
1. Current: 20A 25A 32A 40A 63A 80A 100A
2. Plate and handle type can choose
3. Number of poles: 3P 4P
4. KRAUS&NAIMER standard
1. Specification

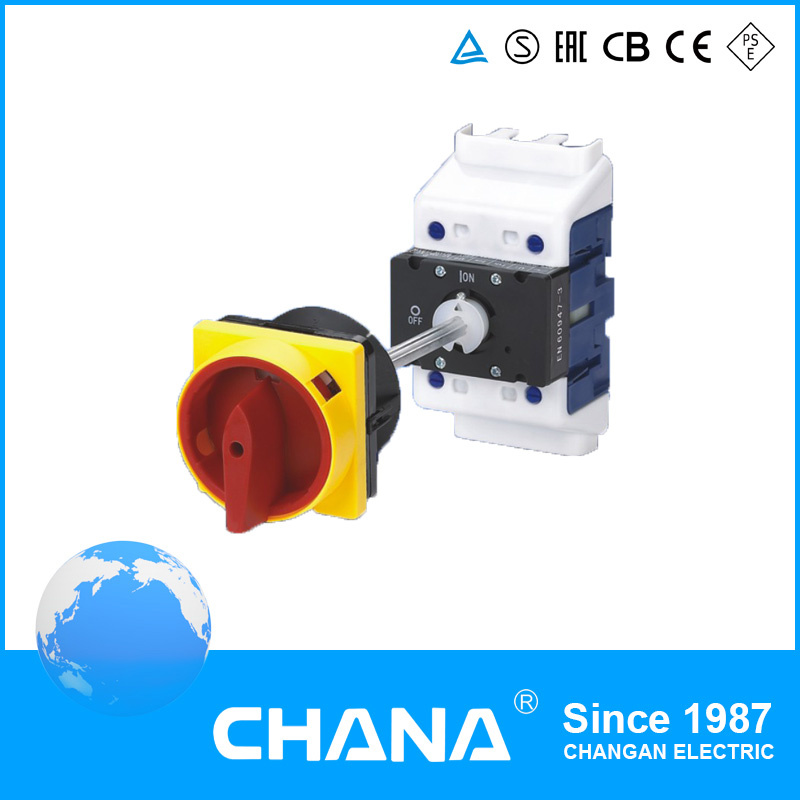

LW30 series rotary switches applied to circuits of AC 50Hz with working voltave up to 440V and rated working current up to 100A. LW30 is suitable to control: Air-conditioner, water pump and ventilating equipments, and AC motors with small power...
LW30 series rotary switches have six current ratings: 20A, 25A, 32A, 40A, 63A, 80A and 100A. LW30 series has the finger protection terminals, which offers an extra advantage. LW30 series switches has Larger insulation distance, quick disconnectinvg response. And is a good choice For DC circuits. LW 30 has additional contact which enable us to install the contact separetely.
LW30 series rotary switches switches comply with: GB/T 14048.3, and IEC 60947-3.

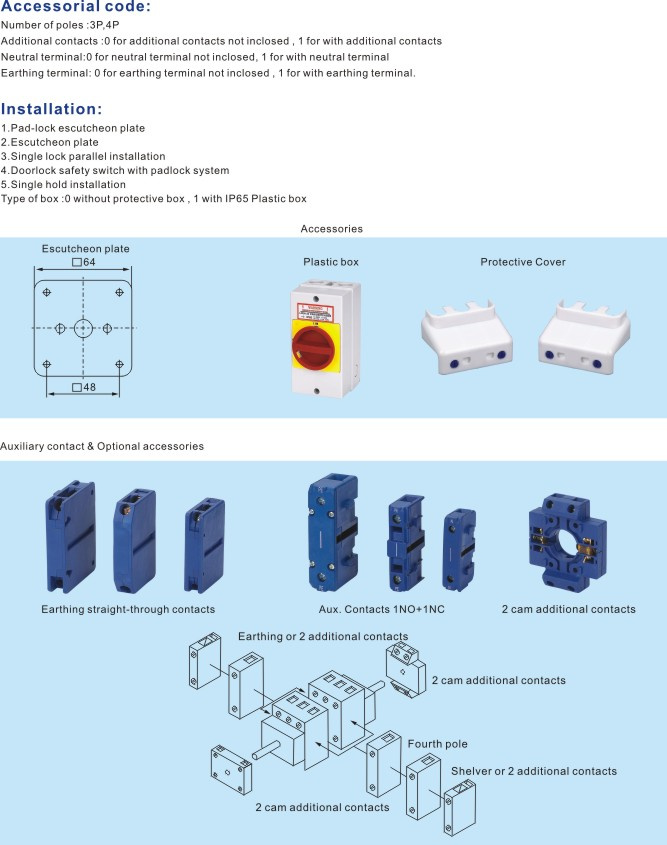

| Description | Diemensions(mm) | Installation(mm) | | |
| A | B | K | Lmin | Lmax | E | F | D1 | D2 |
| LW30-80 | 70 | 80 | 68 | 32 | 150 | 48 | 48 | Φ22 | Φ4.2 |
| LW30-100 | 70 | 80 | 68 | 32 | 150 | 48 | 48 | Φ22 | Φ4.2 |
