| Prod Model: |
J type Thread Thermocouple |
| Theory: |
Temperature Sensor |
| Probe Dia: |
0.5mm to 10mm/ Can Be Customized |
| Max Temperature: |
1600c |
| Lead Wire Insulation Material: |
Stainless Steel/ Brass/ Aluminum Alloy |
| Connection: |
Female |
| Electrical Connector: |
Cable, Water-Proof Metal Case, Explosion-Proof Met |
Product Description
high quality J type thread thermocouple probes temperature measurement
Product Description
Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature.The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
MODEL:
| ame | Model | Type | structural feature |
| Spring thermocouple | WRET-01 | E(EA-2) | Fixed screw thread |
| WRNT-01 | K(Eu-2) | Imitation imports E,K J inch thread |
| Screw thermocouple | WRET-02 | E(EA-2) | Fixed screw thread |
| M6*1 M8*1 |
| WRNT-02 | K(Eu-2) | Imitation imports E,K J inch thread |
| Probe thermocouple | WRET-03 | E(EA-2) | Fixed screw thread |
| M12*1 |
| WRNT-03 | K(Eu-2) | Fixed screw thread |
| Thermocouple lead, thread size can be customized according to your design to produce, temperature rang is 0ºC-800ºC |
| Thermocouple & rtd |
| Ref No. | WR | Temp |
| Thermal element materials | B: PtRh30-Pt6
R: PtRh13-Pt
S: PtRh10-Pt
N: NiCrSi-NiSi
K: NiCr-NiSi
E: NiCr-CuNi
J: Fe-CuNi
T: Cu-CuNi | 0~1600C
0~1300C
0~1300C
0~1000C
0~900C
0~600C
0~500C
0~350C |
| Ref No. | WZP | Temp |
| | PT100
PT1000
CU50 | -200~+650C
-200~+650C
-200~+650C |
| Pairs quantity of sensor wire | Simplex
Duplex |
| Ways of Mounting & Fixing | 1:without fixing device
2:fixed thread
3: movable flange
4: fixed flange
5: right-angle movable flange
6:fixed thread in wimble shape protection tube |
| Types of connections box | 2: anti-spray (Protection class: IP65)
3: water-proof (Protection class: IP55) |
| Types of sensor end | G: variable section
K: sheathed elements
T: flexible sheathed elements |
| Diameter of protection tube | 0:¢16
1:¢20
2:¢16 high aluminum material
3:¢20high aluminum material |
| Measuring range | 0~1600 degree Celsius |
| Shipping | By air, sea, express |
| Sample time | 2~7 days |
| Manufacture time | 7~30 days depending on order quantity |

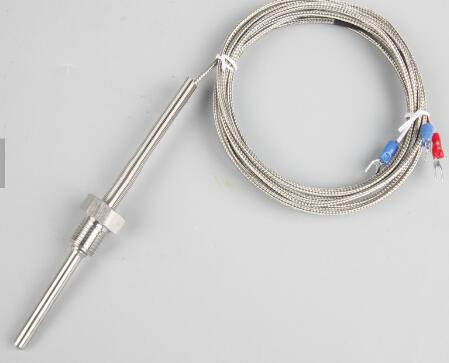

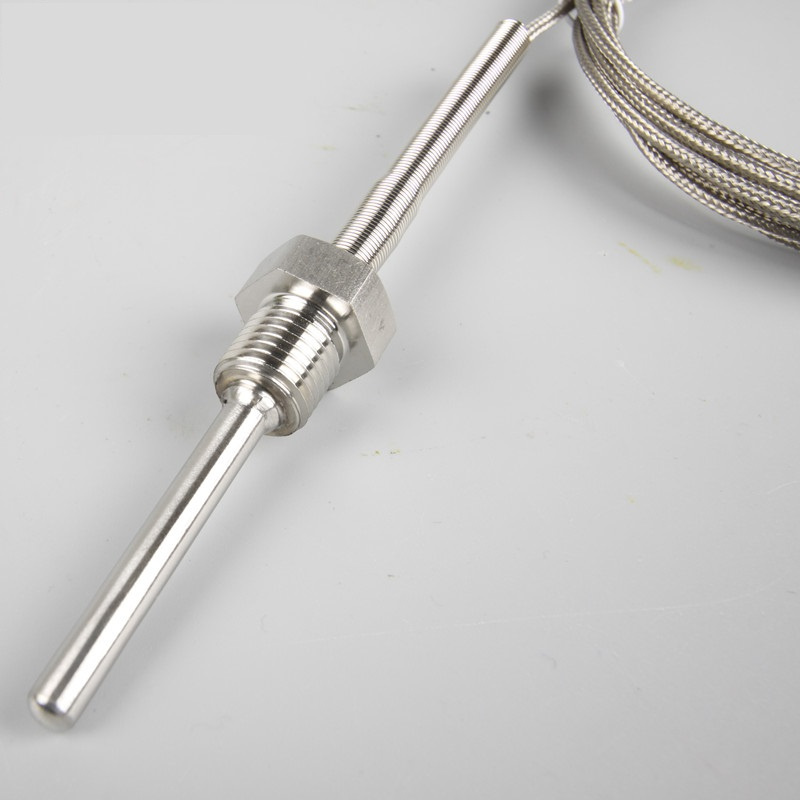

Detailed Images:
