| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Underground |
| Certification: |
VDE |
| Conductor Material: |
Nickel-Chromium-Nisiloy |
| Sheath Material: |
PVC/Teflon/Fiberglass/Silicon Rubber |
| Insulation Material: |
PVC/Teflon/Fiberglass/Silicon Rubber |
| Range Of Application: |
Temperature Sensor |
| Brand: |
Feilong |
Product Description
High quality K type thermocouple wire compensation extended cableDescription:Calibration of

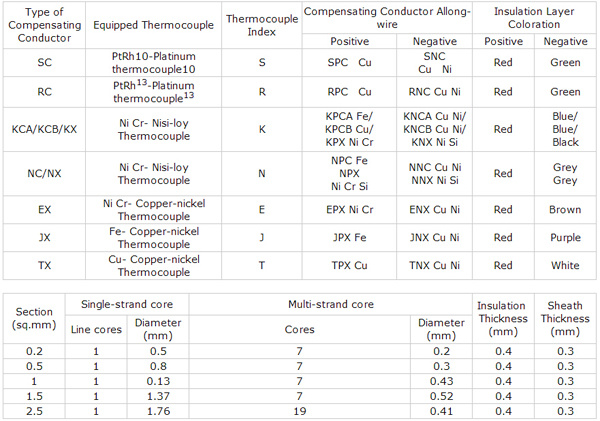

thermocouple | Model number of Compensation cable | Alloy wire name of Compensation cable |
| S or R | SC or RC | Cu-CuNi |
| K | KC | Cu-CuNi |
| KX | NiCr-NiSi |
| N | NC | Fe-CuNi |
| NX | NiCrSi-NiSiMg |
| E | EX | NiCr-CuNi |
| J | JX | Fe-CuNi |
| T | TX | Cu-CuNi |
Insulating and sheath material:
| PTFE | PFA | TEF | FEP | PVC | FG | silicone | kapton | Quartz fiber |
| 260 | 260 | 200 | 200 | 108 | 400 | 200 | 400 | 800 |
Aplication:
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable
for thermocouple type K, J, E, T, N and L and other high temperature detection instrument,
temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable
for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N
and L, heating cable, control cable and so on.
| 1. insulator Material | Silicone, fiberglass, Teflon, PFA, FEP, PTFE, PVC, Quartz Fiber, Kapton |
| 2.Sheath Material | Silicone, fiberglass, Teflon, PFA, FEP, PTFE, PVC,Quartz Fiber, Kapton |
| 3.Conductor material | positive: Chromel, negative: Alumel |
| 4.Color code | ANSI, IEC, DIN, JIS, BS etc |
| 5.Size: | 0000 AWG-46 AWG or customized |
| 6.MOQ: | 100m |

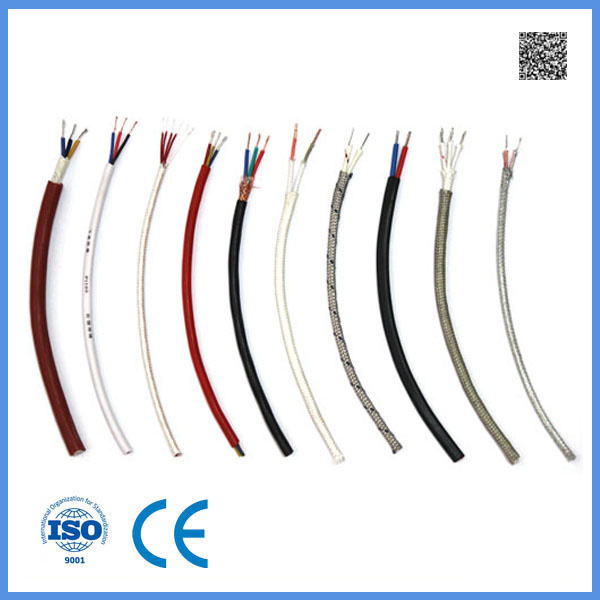

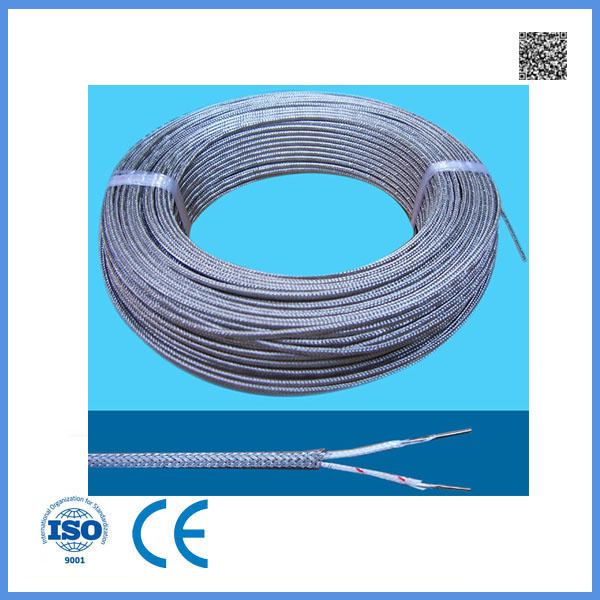

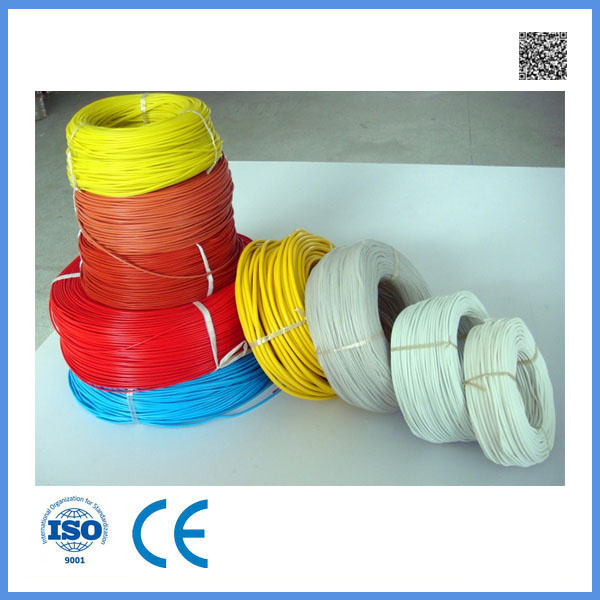

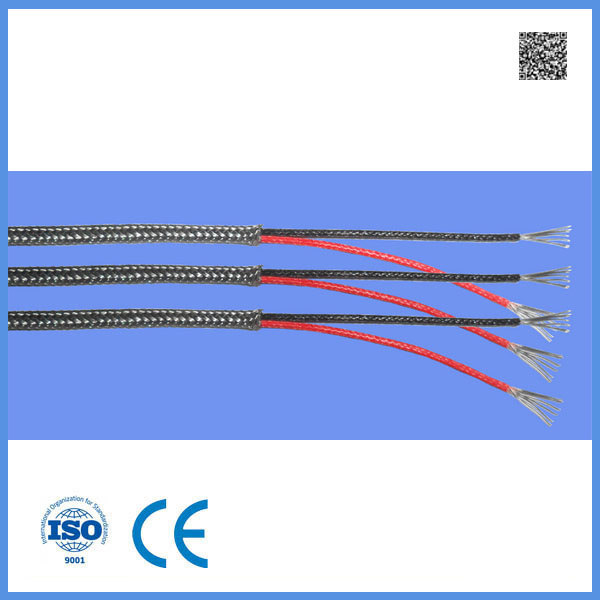

Product Pictures:
 Compensating Wire&Cable |
| Insulation | FEP TEFLON or PVC or Silicone Rubber |
| Conductor | nickel-chrome,nickel-silicone,lron,copper-nickel,copper |
| Temperature Range | -60ºC~+1000ºC |
| Rated Voltage | 300V/600V |
| O.D.Tolerance | ±0.2mm |
| Colour | White-Blue-Red-Black-Brown-Yellow-Green-Transpanrent-Yellow/Green |
| Applications | metallurgy,chemical industry,petroleum,power generation,defense and scientific research,and cables for connection
between thermocouples and temperature display instrument. |

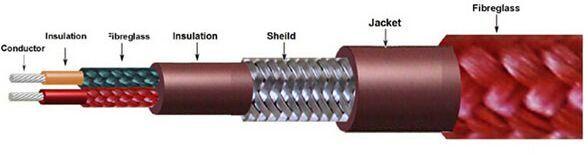

| Structure |  |
FAQ:1. Payment ways?
T/T, PAYPAL, WESTUNION.
2. When will you arrange the production?
In 12 hours since we get your payment.
3. What is your main products?
Thermocouple, PT100 sensor, termperture controller, infared thermometer and son on.
4. Product certifications?
ISO9001, CE, ROHS, FDA, SGS and other certificates.
5. What kind of informations shall I give you regarding the shipping?
Company name, Recipients, Correct Address, telephone, zip code.
6. What is your warranty ?
For most of our products, the warranty will be 12 months.
7. When will I get a solution for defective products?
Within 48 hours (on working days )
8. What is your shipping way?
DHL, FEDEX, UPS, TNT, EMS, CHINA POST AIR, SEA FREIGHT and AIR FREIGHT!
9. What is your shipping time?
For General Orders, the shipping time will be 5 workdays.
