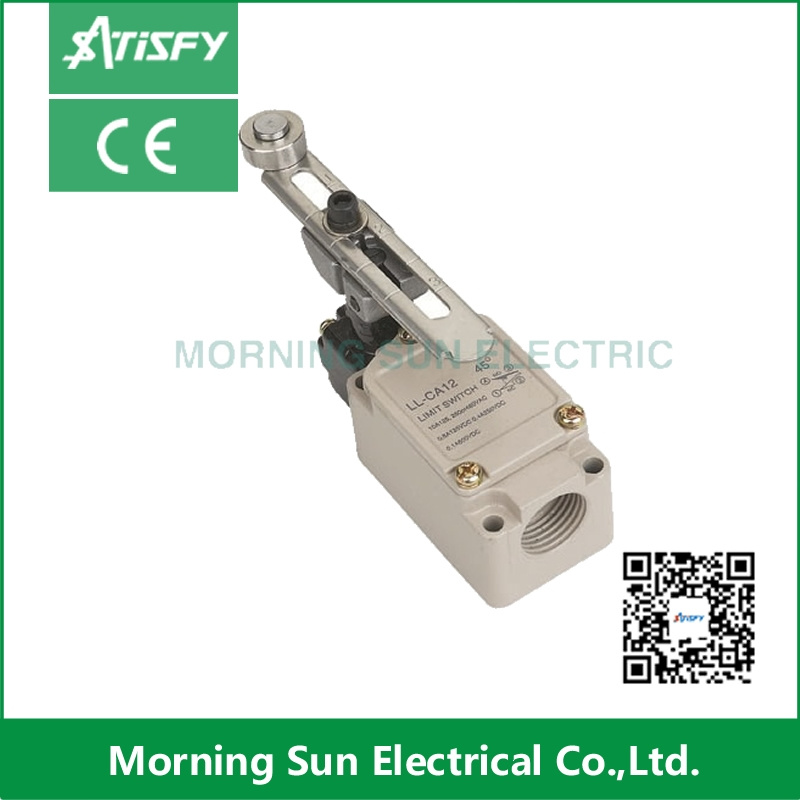

High Quality Limit Switch

Name: High Quality Limit Switch
Brand: all-electronics-online.com
SKU: 677527035
Availability: InStock
Rating: 4.7 (96 reviews)

Price:	US $ 1.00/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	WLCA12-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Pressing Type:	Lever Roller
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Protection:	IP65
Brand:	Satisfy

Product Description

1.Specification
1).Double-circuit type of limit switch,is widely used
2).With strong aluminum cast outer shell
3).High mechanical strength
4).Structure preventing oil,water and pressure
5).Indicating plate with setting position is installed in it,so it is easy to maintain
6).Vatious of actuators is taken convenience for using
7).Built-in contact stand has double-spring,so it has long mechanical life

Rated voltage	Nonidctive load (A)				inductive Load (A)
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 480VAC 600VAC	10 5 3 1		3 2 1.5 1	1.5 1 0.8 0.5	10 5 3 1.5		5 3 1.5 1	2.0 1.0 0.8 0.5
8VDC 14VDC 30VDC 125VDC 250VDC	10 10 6 0.8 0.4		6 6 4 0.2 0.1	3 3 3 0.2 0.1	10 10 6 0.8 0.4		6 6 4 0.2 0.1

NOTES:
1.Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2.Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Waterproof IP67 Wlca12-2-Q Electrical Limit Switch Wlca12-2-Q

Characteristic

Operation spead	1mm-2m/s
Operating frequency	Mechanical:120 operations/minute Electical:30 operations/minute
Contact resistance	15mΩ max. (inital value)
Insulation resistance	100mΩ min. (below 500VDC)
Dielectric strength	1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
	1,500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1,500VAC,50/60 Hz for 1 minute between each terminal and ground
Vibration	10-55Hz,1.5mm double amplitude
Shock	Mechanical durable:1,000m/Sec²(about 100G'S) Malfunction:300m/Sec²(about 30G'S)
Ambient temperature	Use: -10 to +80 °C
Humidity	<95% RH
Life	Mechanical:15,000,000 operations above(under rated OT) Electrical:500,000 operations above
Weight	(CWLCA2-2) Above 275g
Degree of protection	IEC specification:IP66

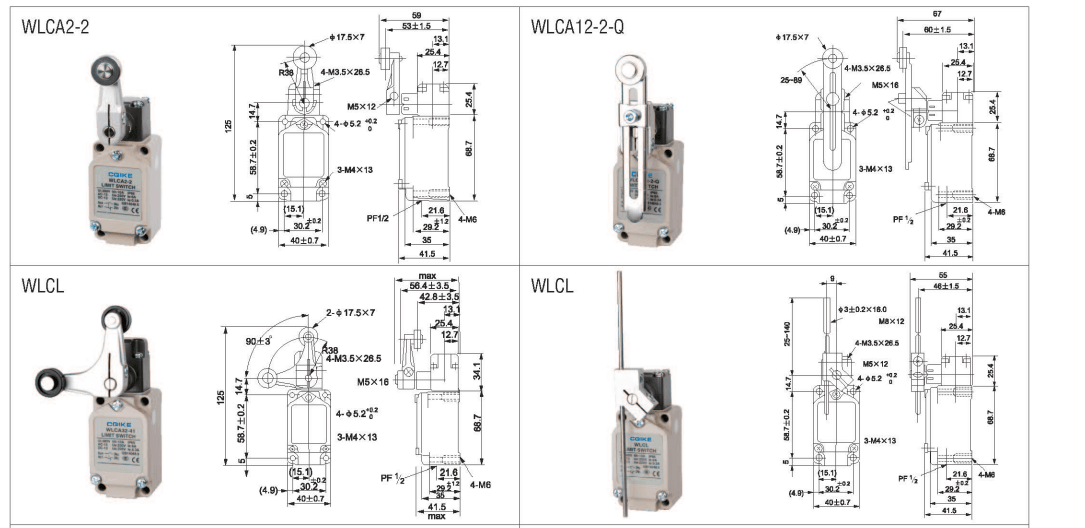

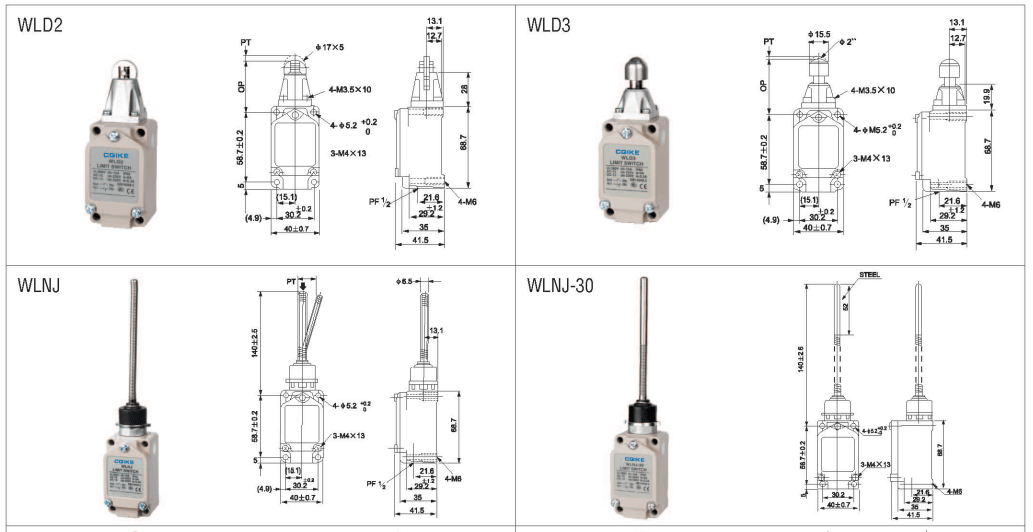

Models

CWLCA2-2

CWLD2

CWLNJ

CWJNJ-S2

CWJCA12-2-Q

CWLCL

CWLCA32-41

CWLD

CWLNJ-2

CWLNJ-30

CWLD1

CWLD3

OF(Max.)

1360g

2720g

150g

29g

1360g

142g

1200g

2720g

120g

80g

2720g

RF(Min.)

227g

910g

227g

28g

910g

PT(Max.)

20°

1.7mm

28mm

20°

55°

1.7mm

28mm

1.7mm

OT(Min.)

30°

5.6mm

30°

35°

6.4mm

5.6mm

MD(Max.)

12°

1mm

12°

1mm

TF(Max.)

2720g

TT(Min.)

50°

6.5±0.8mm

50°

OP:90±10°

OP:34±2.8mm

6.5±0.8mm

9±0.8mm

Model

CWLCA2	TZ-5104 (WLCA2)
CWLCA2-2	TZ-5104-2 (WLCA2-2)
CWLCA12	TZ-5108 (WLCA12)
CWLCA12-2-Q	TZ-5108-2 (WLCA12-2)
CWLCA32-41	TZ-5105 (WLCA32-41)
CWLCL	TZ-5107 (WLCL)
CWLCL-2N	TZ-5107-2 (WLCL-2N)
CWLD	TZ-5101 (WLD)
CWLD1	TZ-5103 (WLD1)
CWLD2	TZ-5102 (WLD2)
CWLD3	TZ-5109 (WLD3)
CWLNJ	TZ-5106 (WLNJ)
CWLNJ-30	TZ-5168 (WLNJ-30)
CWLNJ-2	TZ-5166 (WLNJ-2)
CWLNJ-S2	TZ-5169 (WLNJ-S2)
