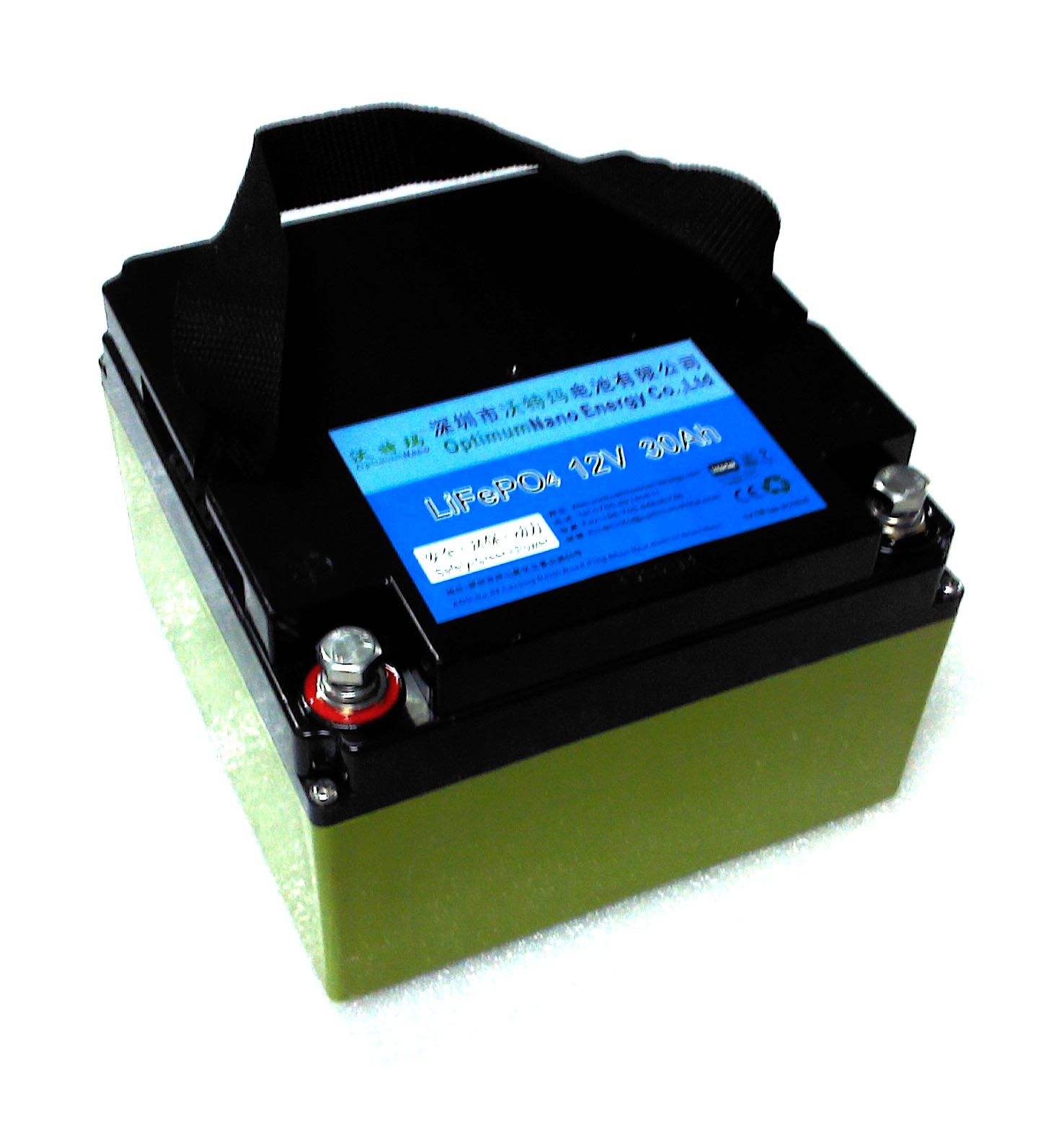

High Quality Lithium 12V 30ah Battery for Cavanran

Name: High Quality Lithium 12V 30ah Battery for Cavanran
Brand: all-electronics-online.com
SKU: 720276255
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	US $ 100-300/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OPT-12-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Components:	LiFePO4(Lithium Iron Phosphate)
Composed Type:	4 in Series and 6 in Parallels
Cycle Life:	More Than 2000 Times
Warranty Period:	2 Years
Battery Case:	Plastic Case (Owner Design)
Dimension:	175175118mm
Type:	Lithium-Ion Battery Pack
Connection Mode:	Series and Parallel
Rated Capacity:	30ah
Standard Voltage:	12V
Usage:	Cavanran
Electrolyte:	LiFePO4

Product Description

High Quality lithium 12v 30ah battery for Cavanran

No.	Item	General Parameters
1	Model	OPT-012-30
2	Standard capacity	30Ah
3	Rated voltage	12.8V
4	Max. Charge voltage	14.6V
5	Discharge Cut-off voltage	10V
6	Standard charge current	6A
7	Max Continuous discharge current	30A
8	Peak Instant Discharge Current	60A(5Seconds)
9	Dimension(Customized)	175175118mm
10	Total weight(Approx.)	About 4Kg
11	Operate temperature	-20°C~60°C
12	Built-in Protection Circuit Module	YES
13	Cycle time	2000 times at 1C, 80% capacity remaining
14	Built-in PCM functions	Over charged protection
		Over discharged protection
		Short circuit protection

— — Basic Specification:

Rated voltage: 12.8V
Rated capacity: 30Ah
Standard charge current: 6A
Standard discharge current: 30A
Max charge voltage: 14.6V
Cut-off voltage: 10V
Charge method: CC&CV
Weight: About 14kg
CE, UL, RoHS, BV, SGS, ISO9001, TS16949
Application: UPS, solar/wind system, energy storage, e-tool

— — Characteristics:

1. Extremely safe: The chemical structure of LiFePO4 is very stable BMS or PCB built inside to protect the battery over charge and discharge.
2. Long life-cycle: 5~7 years / 2000 times cycle life.
3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-CD battery.
4. Wide operating temperature: High temperature resistance(-20~70 degrees Celsius).
5. Steady performance: High power output, 1C continuous, 3C pulse for normal cells Low self-discharge rate, less than 3% monthly.
6. No memory effects and highly efficient charge: It can be recharged anytime, no reduction of the capacity
7. Green product: Environment friendly, clean and green energy, no pollution on our environment.
8. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133 etc...Product certificates.

— — Service by us:

Give you the specific battery pack within 24hours according to your requirements
One-stop battery solution with battery cells, BMS, case and matching charger

Comparison between LiFePO4 and other batteries
Technical Parameter	liCoO2	LiNiCoMnO2	LiMn2O4	LiFePO4
Tap Density(g/cm3)	2.8~3.0	2.0~2.3	2.2~2.4	1.0~1.4
Specific Surface Area(m2/g)	0.4~0.6	0.2~0.4	0.4~0.8	12~20
Energy Density (mAh/g)	135~140	155~165	100~115	130~160
Discharge Plateau (V)	3.6	3.5	3.7	3.2
Cycle Life	≥300 cycles	≥800 cycles	≥500 cycles	≥2000 cycles
Environment Friendly	Co contained	Co, Ni contained	Micro toxicity	Innocuity
Safety Performance	Bad	Normal	Good	Never catch fire or explode under extreme condition , safest

Company Name: OptimumNano Energy Co., Ltd

Name of Exhibition: The China Sourcing Fair

Address: Hong Kong Asia Exhibition Hall

Booth No: At at 9B05

Dates: Oct 11-14, 2015(4 Days)

In 2002, OptimumNano Energy Co., Ltd started the battery business in Shenzhen.

In 2006, OptimumNano began to focus on the production, Engineering, researching and manufacturing of LiFePO4-Lithium Iron Phosphate Battery, we believe the LiFePO4 shall be the best Lithium-ion Power Solution in the future

In 2008, OptimumNano finished the first Pure Electric Bus with LiFePO4 Battery, demonstrating and running for Shanghai EXPO.

In 2009, OptimumNano was awarded the honor of "National High-tech Enterprise".

In 2011, OptimumNano was the main vehicle power battery supplier of the 26th World Universiade Games.

In 2012, OptimumNano was selected as one the supporting company of "2012 New Energy Automotive Industry Technology Innovation Project", which was launched by the Ministry of Finance, the Ministry of Industry and the Ministry of Science and Technology.

In 2013, OptimumNano moved to new and bigger factory to meet our 500, 000 PCS daily production requirement.

In 2014, Shenzhen mayor Mr. Wang Rong and others come to our company to make researches and guidances and gave high praise for our company achievement in the new energy industry

OptimumNano set up the workstation for Academician Material Application. With around 500 R&D staffs, now we have more than 200 patents at home and abroad.

After over 13 years' development, OptimumNano has offices in local 31 cities, distribute our LiFePO4 batteries to over 40 countries in the world.
