| Prod Model: |
IFR26650 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Factory: |
Guangdong |
| Brand: |
Huge |
| OEM: |
Support |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Electric Bicycle |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Nominal Voltage: |
3.2V |
Product Description
LiFePO4 battery(32650)
LiFePO4 battery cells:
Higher discharge current,
Very fast charge times (5 minutes),
High power density and do not explode under extreme conditions,
But have lower voltage and energy density than normal Li-ion cells.
Key Features and Advantage of LiFePo4 Material
High Performance _High theoretical capacity of 170mah/g and high practical capacity as high as 165mah/g.
Extremely Safe/Stable Chemistry _High intrinsic safety, no explosion & will not catch fire under collision, over charged or short circuit. High thermal stability of phases up to 500C.
High Rate Capability _For all high power output application
Extraordinary Long Cycle Life, Up to 2000 cycle life, would be over 8 times life of Lead Acid and 3 times of NIMH, 2 times most Lithium batteries.
Environmentally Friendly, Non-toxic, non-contaminating No rare metal, UL, CE, SGS/RoHS approved
Wide working temperature range, From -4 F to 150 F (-20 C - +70C) Extemely cold and extremely hot weather will not effect its performance
Flexible Form Factor, Small in size and light in weight 1/3 weight of Lead Acid and 65% weight of NIMH.
No memory effect
Fast Charge Can be fully charged in a very short time ---2C fast charge within half hour
Application:
Electric vehicles such as electric bus, electric car and hybrid car
Light electric vehicles such as electric motorcycle, e-bike, e-scooter, golf car, folk lifter, floor cleaner
Power tool, electric garden tool, agricultural tool, special application tool
Remote control plane, car, boat
Medical vehicles such as scooter, wheel chair
Solar energy, wind energy storage systems
UPS (uninterrupt power system)
| Type | IFR18650P | IFR18650e | IFR22430P | IFR22430e | IFR22650P | IFR22650e | IFR26430P | IFR26430e | IFR26650P | IFR26650e | IFR32600e | IFR32600P | IFR32900e | IFR32900P | IFR42120e |
| Nominal Capacity(Ah) | 1.1 | 1.4 | 0.95 | 1.2 | 1.6 | 2.1 | 1.3 | 1.7 | 2.2 | 3 | 3.5 | 3 | 5 | 4.5 | 12 |
| Resistance(mΩ) | 25+10 | 60+10 | 25+10 | 60+10 | 25+10 | 60+10 | 25+10 | 60+10 | 20+10 | 60+10 | 20+10 | 20+10 | 20+10 | 20+10 | 5+5 |
| Nominal Voltage(V) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
| Discharge cut-off voltage(V) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Nominal Charge Voltage | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 | 3.65±0.05 |
| The highest charge voltage(V) | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 | 4.195 |
| Nominal Charge Current (A) | 1.1 | 1.4 | 0.95 | 1.2 | 1.6 | 2.1 | 1.3 | 1.7 | 2.2 | 3 | 3.5 | 3 | 5 | 4.5 | 12 |
| Fast Charge Current (A) | 1.65 | 2.1 | 1.425 | 1.8 | 2.4 | 3.15 | 1.95 | 2.55 | 3.3 | 4.5 | 5.25 | 4.5 | 7.5 | 6.75 | 18 |
| Max Constant Discharge Current(A) | 16.5 | 7 | 14.25 | 6 | 24 | 10.5 | 19.5 | 8.5 | 33 | 15 | 17.5 | 45 | 25 | 67.5 | 60 |
| Max Pluse Discharge Current(A) | 22 | 11.2 | 19 | 9.6 | 32 | 16.8 | 26 | 13.6 | 44 | 24 | 28 | 60 | 40 | 90 | 96 |
| Dimension(mm) | Φ18.5±0.1 ×H65.0±0.5 | Φ18.5±0.1 ×H65.0±0.5 | Φ22.5±0.1 ×H42.8±0.5 | Φ22.5±0.1 ×H42.8±0.5 | Φ22.5±0.1 ×H65.0±0.5 | Φ22.5±0.1 ×H65.0±0.5 | Φ26.5±0.1 ×H42.8±0.5 | Φ26.5±0.1 ×H42.8±0.5 | Φ26.5±0.1 ×H65.0±0.5 | Φ26.5±0.1 ×H65.0±0.5 | Φ32.5±0.1 ×H60.0±0.6 | Φ32.5±0.1 ×H60.0±0.6 | Φ32.5±0.1 ×H90.5±0.5 | Φ32.5±0.1 ×H90.0±0.5 | Φ42.5±0.1 ×H120.0±0.5 |
| Battery Weight(Approx)g | 42 | 42 | 42 | 42 | 60 | 60 | 50 | 50 | 76 | 76 | 125 | 125 | 188 | 188 | 355 |
Your best partner and friend, Kingbolai Battery Industrial Co., Ltd., established in 1997, is a professional battery manufacturer and exporter with 15 years' experience! Our factory with an area of over 3, 500 square meters and over 800 staff, including over 120 advanced R&D engineers.

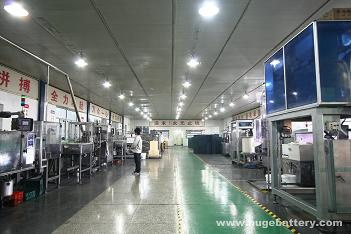

Our company has introduced several advanced fully automatic battery production lines, including the FUJI production lines from Japan and the Hibar production lines from Canada, and the annual output is about 550 million pieces. Our factory is supported by advanced equipment, scientific management system, and 100% inspection quality control. Our battery products execute IEC60086 series standards. You can enjoy our quality guarantee.
In addition to dedication to specialization in battery quality, we further pursue better service and prices offered to customers. We can satisfy customers' requirements in product design, packaging and technical issue with our strong R&D capacity and experience in developing OEM services.
We sincerely welcome your visiting and valued suggestion to us. Any questions from you, our experienced salesperson will reply you within 12 hours.
