High Quality Load Cell for Chemical Lines Equipment

Name: High Quality Load Cell for Chemical Lines Equipment
Brand: all-electronics-online.com
SKU: 820191015
Availability: InStock
Rating: 5 (49 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YLP301S
Zero Output:	1.0%Fs
Safe Overload:	150%
Warranty:	12 Months
Usage:	Chemical Lines Equipment Sensor
Material:	Aluminum Alloy

Product Description

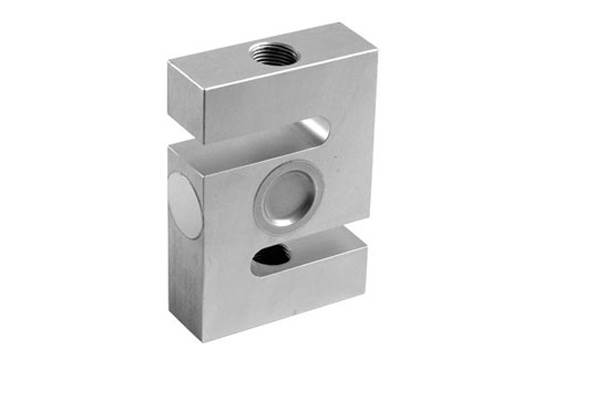

High Quality Load Cell for Chemical Lines Equipment

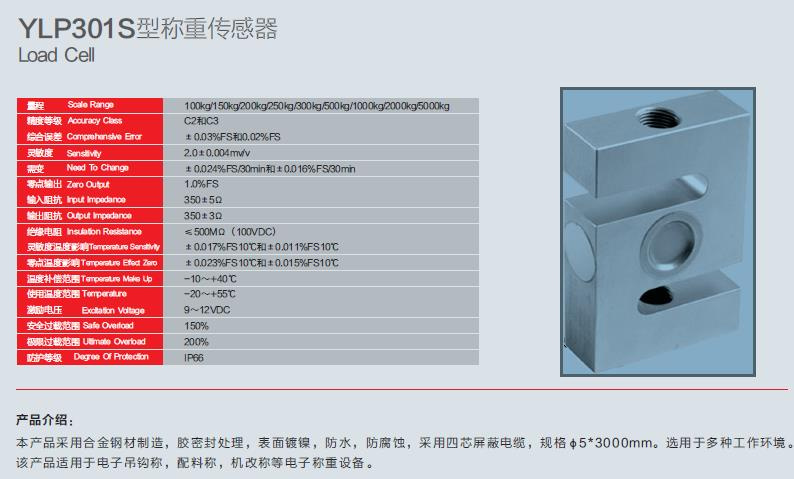

Excitation Voltage	Zero Output	Sensitivity	Insulation Resistance	Accuracy Class	Protect Grade
VDC	%FS	mv/v	MΩ
9-12	1.0	2.0±0.004	500 (100VDC)	C2& C3	IP66

Features:

Aluminum alloy shell construction

Strain gauge technology,analog output,high accuracy

Tension compression force measurement

Widely used for hopper scales,testing machine.

Application:

Miniature Compression and Tension Load Cells with High Dynamic Frequency are mainly applied intension and pressure testing instruments and automatic equipments fields, such as insertion force test instruments, lifting hook scales, riveting machine, welding machine, hot&cold lamination mac

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

13 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.
Package:

What is Loadcell
A load cell is a sensor or a transducer that converts a load or force acting on it into an electronic signal. This electronic signal can be a voltage change, current change or frequency change depending on the type of load cell and circuitry used. There are many different kinds of load cells. We offer resistive load cells and capacitive load cells.

Resistive load cells work on the principle of piezo-resistivity. When a load/force/stress is applied to the sensor, it changes its resistance. This change in resistance leads to a change in output voltage when a input voltage is applied.

Capacitive load cells work on the principle of change of capacitance which is the ability of a system to hold a certain amount of charge when a voltage is applied to it. For common parallel plate capacitors, the capacitance is directly proportional to the amount of overlap of the plates and the dielectric between the plates and inversely proportional to the gap between the plates.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
