High Quality Low Price XLPE Wire and Cable UL Certificate

Name: High Quality Low Price XLPE Wire and Cable UL Certificate
Brand: all-electronics-online.com
SKU: 830411625
Availability: InStock
Rating: 4.4 (68 reviews)

Price:	US $ 0.05-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UL3321 600V 150C
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	XLPE
Certification:	CSA, Ts16949
Sheath Material:	XLPE
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

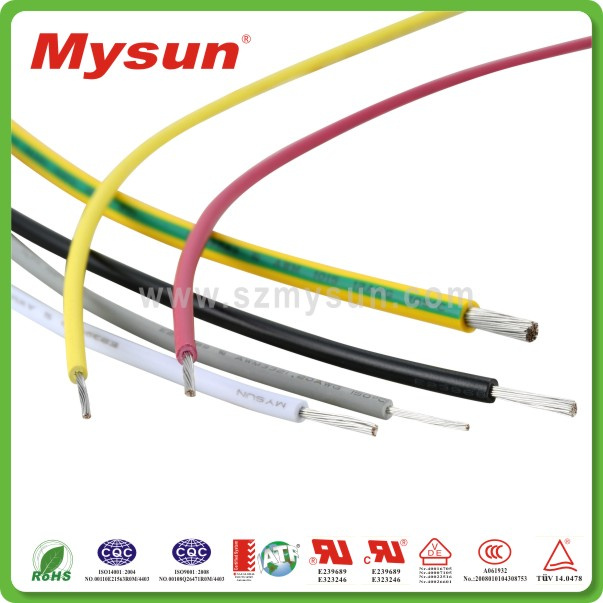

Product Description

Specifications:

Nominal voltage: 600V

Temperature range: 150C

Standard: UL 758

Conductor: Tinned copper

Insulation: XLPE

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
30	7/0.10	0.30	0.78	1.86	361	305/1000
28	7/0.127	0.38		1.94	227
26	7/0.16	0.48		2.04	143
24	11/0.16	0.60		2.16	89.3
22	17/0.16	0.76		2.32	56.4
20	21/0.18	0.94		2.49	35.2
18	16/0.254	1.18		2.73	22.2
16	26/0.254	1.50		3.06	14
14	41/0.254	1.89		3.45	8.78
12	65/0.254	2.37		3.93	5.53
10	105/0.254	3.02		4.58	3.476
9	133/0.254	3.36		4.92	2.73
8	133/0.28	3.75	1.15	6.05	2.16	100/328
6	84/0.45	4.79		7.09	1.361
4	133/0.45	6.02		8.32	0.8559
2	212/0.45	7.60	1.53	10.66	0.5384

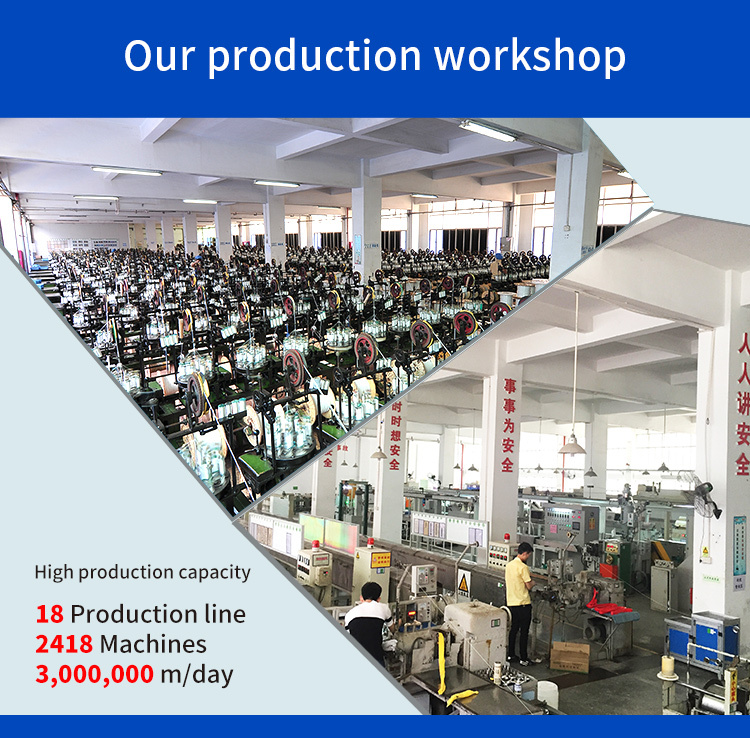

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
