High Quality Low-Voltage Line Prcelain Stay Insulator / Strain Insulators

Name: High Quality Low-Voltage Line Prcelain Stay Insulator / Strain Insulators
Brand: all-electronics-online.com
SKU: 618793272
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 0.05/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ANSI 54-1 54-2 54-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Failing Load:	90kn
Flashover Voltage Dry:	25kv
Flashover Voltage Wet:	12kv
Model:	Can Be Made to Order
Application:	Low-voltage
Material:	Porcelain
Structure:	Strain Insulator
Type:	A Type Insulator
Size Of Bearing Capacity:	44kn-90kn
Color:	Brown
Brand:	Powlik

Product Description

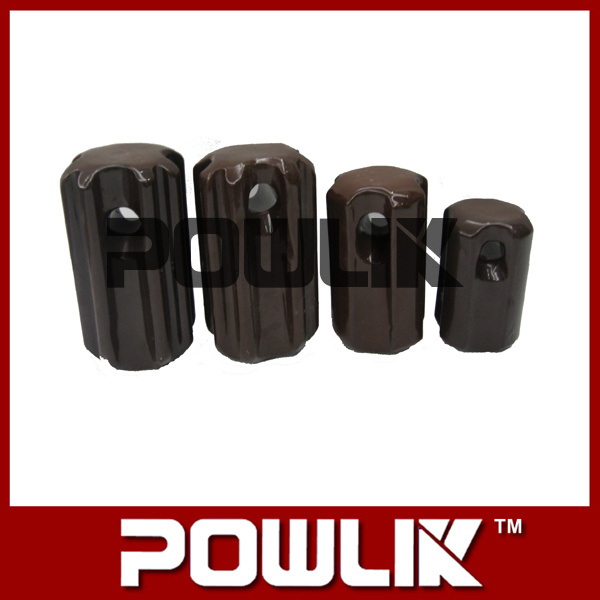

Low-Voltage Line Prcelain Stay Insulator / Strain Insulators

1.Type: Stay insulator or Strain insulator
2.Material: Porcelain
3.Application: Insulation for low Voltage lines
4.Standard: ANSI
5.Color: Brown
6.Package: Wooden Crate or as per customer's requirement.

Cat. No				A1052	A1053	A1054	A1055
Fig				1	1	1	2
Class ANSI				54-1	54-2	54-3	54-4
Main Dimensions mm		H		88	108	140	171
		h		44	57	79	69
		h1		64	76	103	114
		D		64	73	86	89
		d		44	54	60	60
		d1		16	22	25	25
Mechanical Failing Load(kg)				44	53	89	89
Flashover voltage	Power-frequenry		Dry(kv)	25	30	35	40
Flashover voltage	Power-frequenry		Wet(kv)	12	1215	18	23
Weight(kg)				0.43	0.63	1.2	2
