High Quality Mbo Series Current Transformer

Name: High Quality Mbo Series Current Transformer
Brand: all-electronics-online.com
SKU: 698039025
Availability: InStock
Rating: 4.5 (26 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MBO
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Rated Current:	5A---3000A
Safe Factor:	Fs5
Secondary Current:	5A/1A
Application:	Electronic
Type:	Current Transformer
Phase:	Both

Product Description

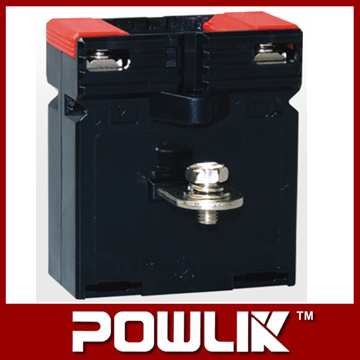

MBO Series Current Transformer

1. DESCRIPTION
A range of (9 frames) EURO style long life design plastic case current transformer, enforced terminal makes the CT keep cooling after full load using for a long term, elegant black figure makes the CT perfectly assort with related components in high quality panel board.

2. FEATURE
Two built in fixing methods: Side base; Busbar mounting
Built in hinged terminal cover
Enforced terminals
Primary current from 5A to 3000A.

3. SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature 10º C~50º C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A
