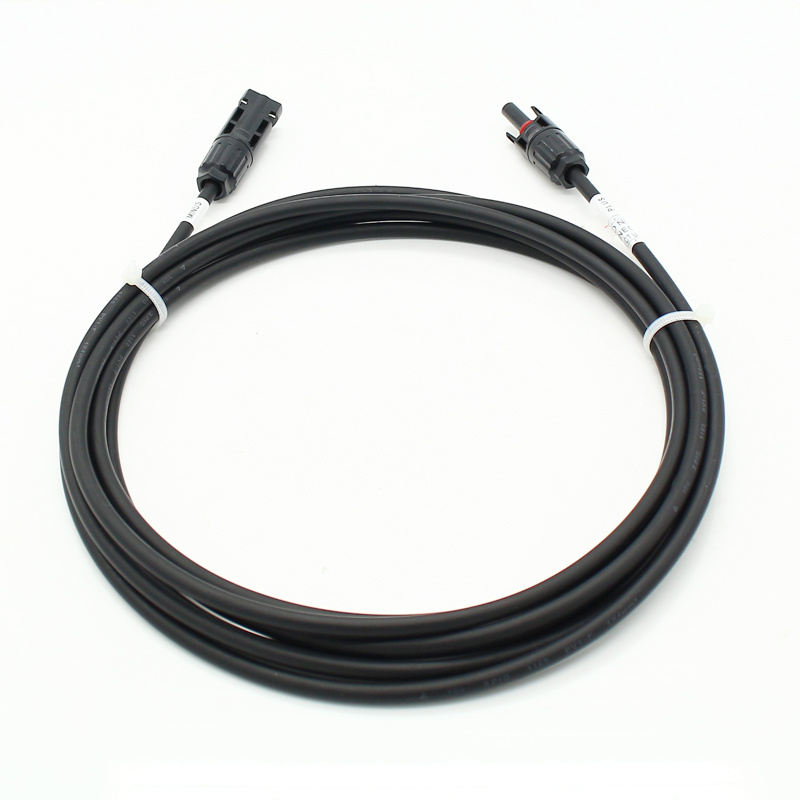

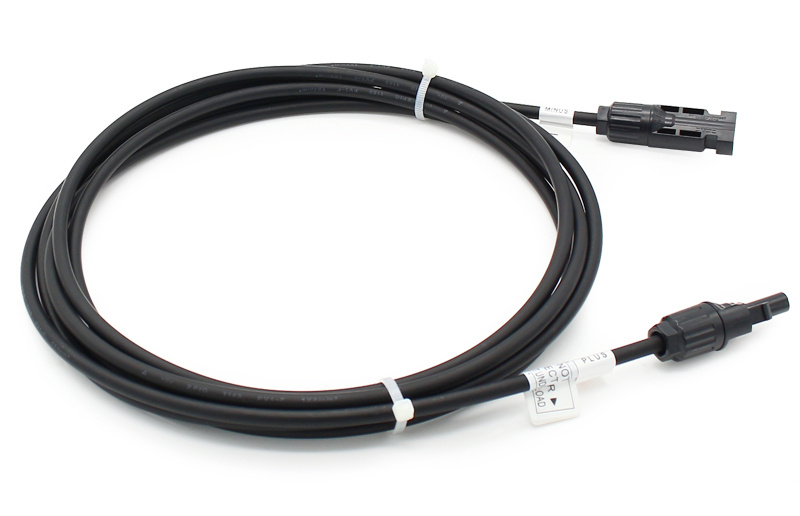

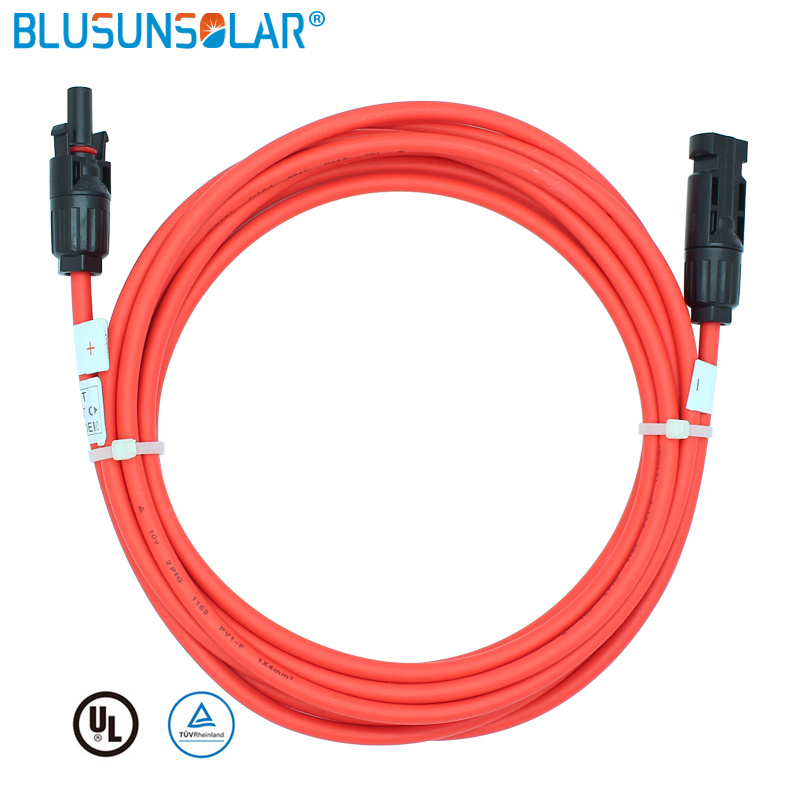

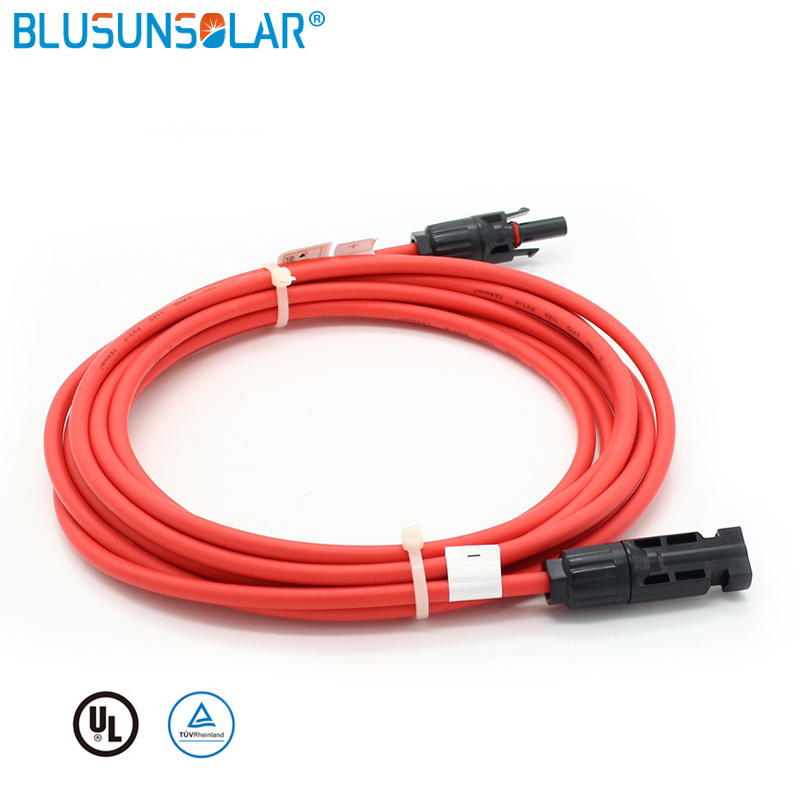

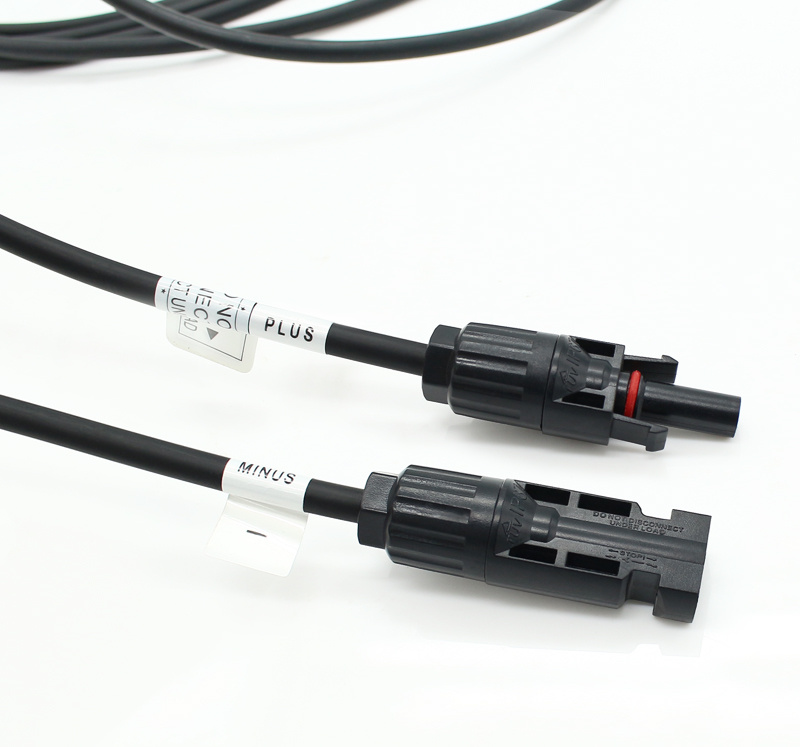

High Quality Mc4 Extended Cable with Mc4 Connector

High Quality Mc4 Extended Cable with Mc4 Connector
Price: US $ 2.12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: MC4 Extended cable
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Solar Cable: PV1-F
Conductor: Tinned Copper Wire, Class 5 (as Per IEC 60228)
Insulation: No Halogen Po Insulation
Sheath: No Halogen Po Sheath
Rated Voltage: AC 0.6/1kv
Temperature Range: -40°c~+90°c, Dry/ Humidity
Max.Working Temperature Of Conductor: 120°c
During Short Circuit: 200°c
TUV Standard: En 2pfg 1169
Solar Wire: 1.5-35mmsq
Application: XLPE
Voltage: High Voltage Cable
Current: DC Cable
Insulation Material: XLPE
Certification: VDE
Model: 1 X 4.0 Mmsq
Brand: Leader

Product Description

1.Executive Standard:
PV cable(solar cable) refers to original draft made out by PV system cable work team of German Standard Committee(Technical Specification 2PFG1169/08.2007 in Rhein TUV company German).


2.No-haogen PV-Cable Type:
 PV1-F: Tinned Flexible Copper Wire No Halogen PO Insulation&Sheath Photovoltaic System Cable.


3. Application:
Applied to  solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor . Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety .


4.Cable Characteristics

MODEL                  PV1-F
ConductorTinned copper wire,class 5 (as per IEC 60228)
InsulationNo Halogen PO insulation
SheathNo Halogen PO sheath
rated voltageAC  0.6/1KV
 DC  1.8KV
Temperature range-40°C~+90°C,dry/ humidity
Max.working temperature of conductor 120°C
During short circuit 200°C
StandardEN 2PFG 1169







5.PV1-F  Structure Parameter
   type    Cross Sectional Area(mm2)Conductor structure( Strand /mm)diameter(mm)insulation thickness(mm)sheat thickness(mm)cable diameter(mm)DC resistance at 20°C(Ω/km)
 PV1-F      1.5     48/0.2    1.6    1.0    0.8    5.2      12.2
 PV1-F      2.5     77/0.2    2.0     1.0    0.8    5.6     7.56
 PV1-F       4     56/0.3    2.6    1.0    0.9    6.4      4.7
 PV1-F       6     84/0.3    3.2    1.0    0.9    7.0     3.11
 PV1-F      10    77/0.41    4.4    1.0    0.9    8.2     1.84
 PV1-F      16   119/0.41    5.5    1.0    1.1    9.7     1.16
 PV1-F      25   189/0.41    6.5    1.2    1.2   11.3    0.734
 PV1-F      35   244/0.41    7.5    1.2    1.2   12.3    0.529

Our sevices:

Upon receipt of our products, if you are not satisfied with the quality or concerned, you can return it within 3 days after receiving our products , but only if products need to keep intact and original; any returns arising from the cost of freight and customs , will be borne by the buyer, buyer should be responsible to assume, otherwise, we have the rights to refuse to refund.

All in all, we believe our quality and service will satisfy your needs, we do not wish to see similar things happen, but onece them occurred, please contact us immediately, we will make every effort to resolve the problem and make you satisfied at the first time.

We will give you a best service.
1) Reply inquiry within 24 hours.
2) Answer your detailed question.
3) Freight forwarder: faster, safer,and convenient.
4) Please kindly inform us which item you are interested in so that the reasonable price could be provided  soon.


Company information:

LEADER ENERGY is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing PV connectors,PV junction boxes and PV assembles etc;

with an integrated utilization from solar modules,solar energy appliance to on off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams,hold the belief of 'survive for excellence,development for innovation',insist on being professional,large-scale brand.



Business Type                         -Manufacturer
-Exporter
Export Percentage- 85 percent
Year Established- 2008
Registered capital- 10,000,000
Certificate- CE
- Rosh
- TUV
- UL
- ISO9001
Primary Competitive Advantages- Professionalism
- Quality Test
- Equipment
- Reliability
- Fast response
- Totally Solution
- Technical Support
No. of Total Staff - 100 to 200
Product Range- Solar Connector
- Waterproof cable connector
- Solar junction box
- Solar Cable
- Industry Control & Protection
