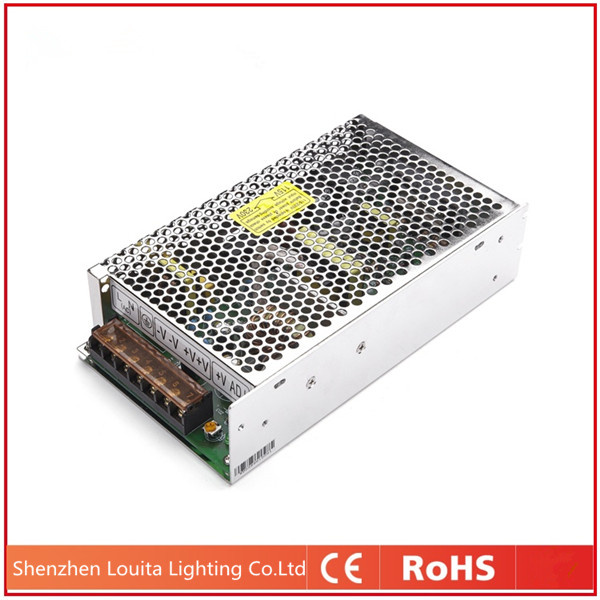

High Quality Metal Single Output 5V 30A Power Supply

Name: High Quality Metal Single Output 5V 30A Power Supply
Brand: all-electronics-online.com
SKU: 801104585
Availability: InStock
Rating: 4.8 (41 reviews)

Price:	US $ 5.10-5.20/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	LYD-5V-30A
Working Temperature:	-10-60
Output Frequency:	47-63Hz
Weight:	0.8kg
Output Type:	Single
Output Power:	101 - 200W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Level 1 Power Distribution Equipment
Certification:	RoHS

Product Description

Basic Info

place of origin:	Shenzhen,China	brand name:	louita	model no.:	LYD-5V-30A
output type:	single	working temperature:	-10-60	dimension:	198X98X41mm
output frequency:	47-63HZ	voltage:	5v

Product Description

Features

•High efficiency,High reliability,Long lifetime;

•CE ROHS certified;

•Protected level: IP45;

•Universal AC input/Full rang;

•Efficiency: 85%;

•Built-in active PFC function,PFC>0.7;

•Protections: Short circuit/Over voltage/Over temperature;

•Low output ripple noise;

Model Specification	S-150-5	S-150-7.5	S-150-12	S-150-13.5	S-150-15	S-150-24
DC Output voltage	5V	7.5V	12V	13.5V	15V	24V
Output voltage range(Note:2)	±1%	±1%	±1%	±1%	±1%	±1%
Rated output current	30A	20A	12.5A	11.2A	10A	6.5A
Output current range	0~30A	0~20A	0~12.5A	0~11.2A	0~10A	0~6.5A
Wave and noise(Note:3)	150mVp-p	150mVp-p	100mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.2%
Load stability(Note:5)	±0.5%	±0.5%	±0.3%	±0.3%	±0.3%	±0.2%
DC output power	150W	150W	150W	151.2W	150W	156W
Efficiency	80%	80%	82%	83%	84%	85%
Adjustable range for DC voltage	4.5~5.6V	6~8.3V	10.6~13.2V	12~15V	13.5~16.5V	21~28V
AC input voltage range	85~132VAC/176~264VAC selected by switch 47~63Hz,248~370VDC
Input current	3.2A/115V 1.6A/230V
AC Inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105 ~ 150% Protection type :pulsing hiccup shutdown Reset: auto recovery.
Over-voltage protection	115%~135% Protection type :shut off output
Temperature coefficient	±0.03%/°C(0~50°C)
Setup, rise, hold up time	100ms, 50ms, 20ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

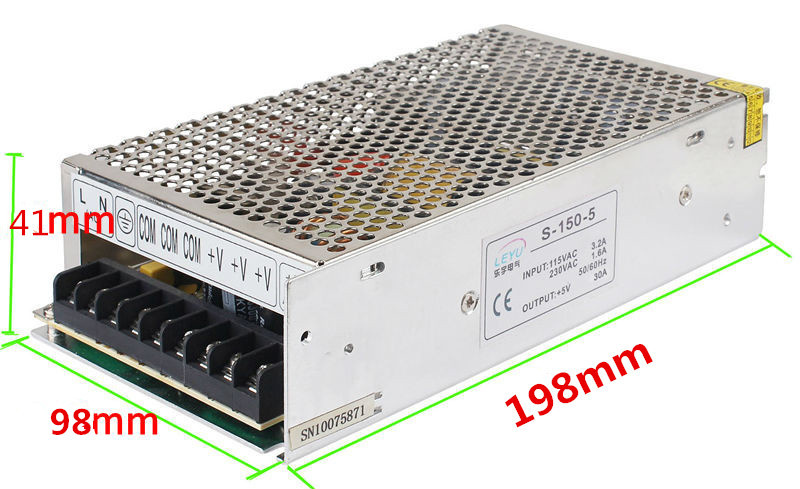

Dimension

Application

With advantage of many years producing LED in large scale as well as advanced technicians in lamp manufacturing field. LYD entered into the lamp market which uses LED as its lamp-house, as a high-tech enterprise which specialize in producing out door&indoor decorative lighting products.

Our company's main products are: Book Lights, Flexible LED Strips, Rigid LED Strips, LED Module, LED Controller, Power Supply. Our products have been widely used in illumination, advertisement, city enlightening projects, traffic lamp, decorating, electronic gifts and toys, and many other production fields.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Through persevering efforts, we have become one of the largest suppliers in LED light field in China and also won the trust of our customers because of excellent quality and prompt delivery.

Choosing louita means choosing satisfaction and choosing benefit! We firmly believe "Technology changes the world and the world will be more brilliant because of louita
