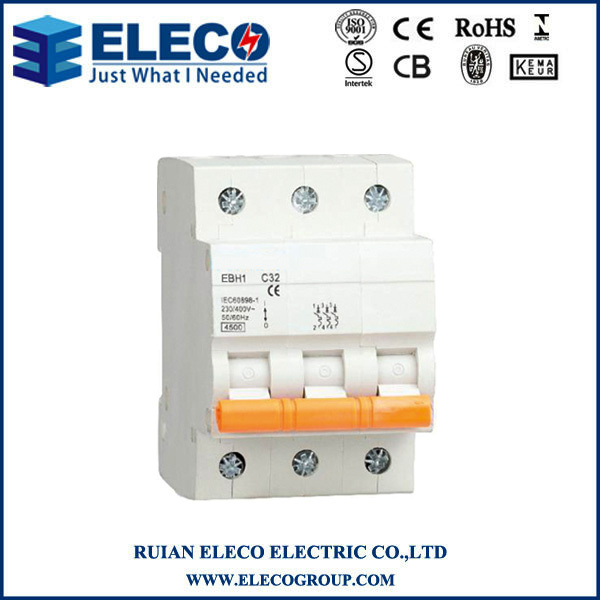

High Quality Mini Circuit Breaker with Ce (EBH1 Series)

Prod Model:	EBH1 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Temperature:	40oc
Rated Voltage (Un):	240V/415V AC
Rated Current In:	1,3,5,6,10,15,16,20,25,32,40,50,60,63A
Tropical Test:	2kinds
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	Semko
Poles Number:	1p, 2p, 3p,4p

Product Description

Application
Mini circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in stricture, light in weight, reliable and excellent in performance, it has high breaking capacity, can trip quickly and it is installation uses with guide, it is case an d items are adopted with high fire-resistant and shockproof plastics. The product ,with long life, is mainly used in AC 50Hz/60Hz single-pole 246V or two, three, for-pole 415V circuit for overload and short-circuit protection as well as unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product comply with FG10963,IEC898,BS3871.

Specification

Rated temperature: 40ºC

Rated voltage: 240V/415V AC

Rated current(C): 1,3,5,6,10,15,16,20,25,32,40,50,60,63A

(D):1,3,5,6,10,15,16,20,25,32,40A

Electric endurance not lower than 60000 times

Mechanical endurance lower than 20000 times

Tropical test: 2Kinds

About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
