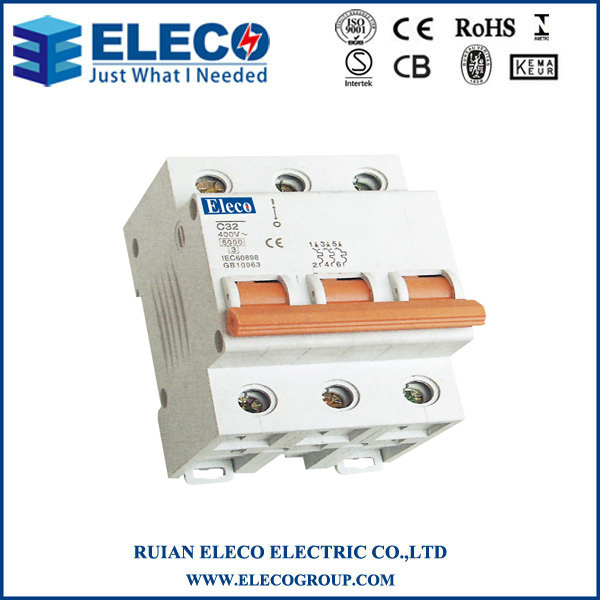

High Quality Mini Circuit Breaker with Ce (EBKN)

Prod Model:	EBKN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current (a):	1,2,34,6,10,16,20,25,32,40,50,63
Pole:	1 2,3,4
Rated Voltage:	230/400V
Breaking Capacity (a):	6000
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	Semko
Poles Number:	1p.2p.3p.4p

Product Description

Application
EBKN series circuit breaker is used in lighting distribution system or motor distribution
system for protection overload and short-citcuit in the system. The product is neoteric in structure,
light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly,
and its case and items are adopted by high fire-resistant and shockproof plastics. The product, with
long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four-pole 400V circuit
for overload and short-circuit protection as well as unfrequent on-and-off switching electric
equipment and lighting circuit in normal case. The products comply with IEC 60898..


Number of Poles	1P,2P,3P,4P
Rated Current (A)	1,2,34,6,10,16,20,25,32,40,50,63
Breaking Capacity (A)	6000
Rated Voltage (V)	230/400
Rated Frequency (Hz)	50/60
Endurance	≥4000
Circumstance Temperature	-5ºC to +40ºC
Electrical Life	no less than 6000 operations
Mechanical Life	(O-C) no less than 20000 operations
Protection Degree	IP20
