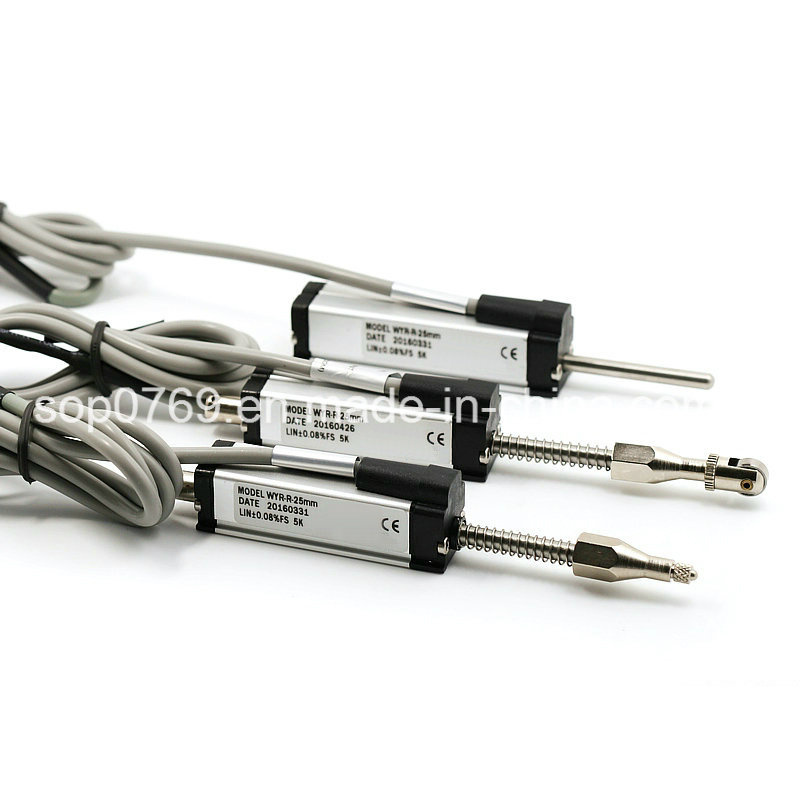

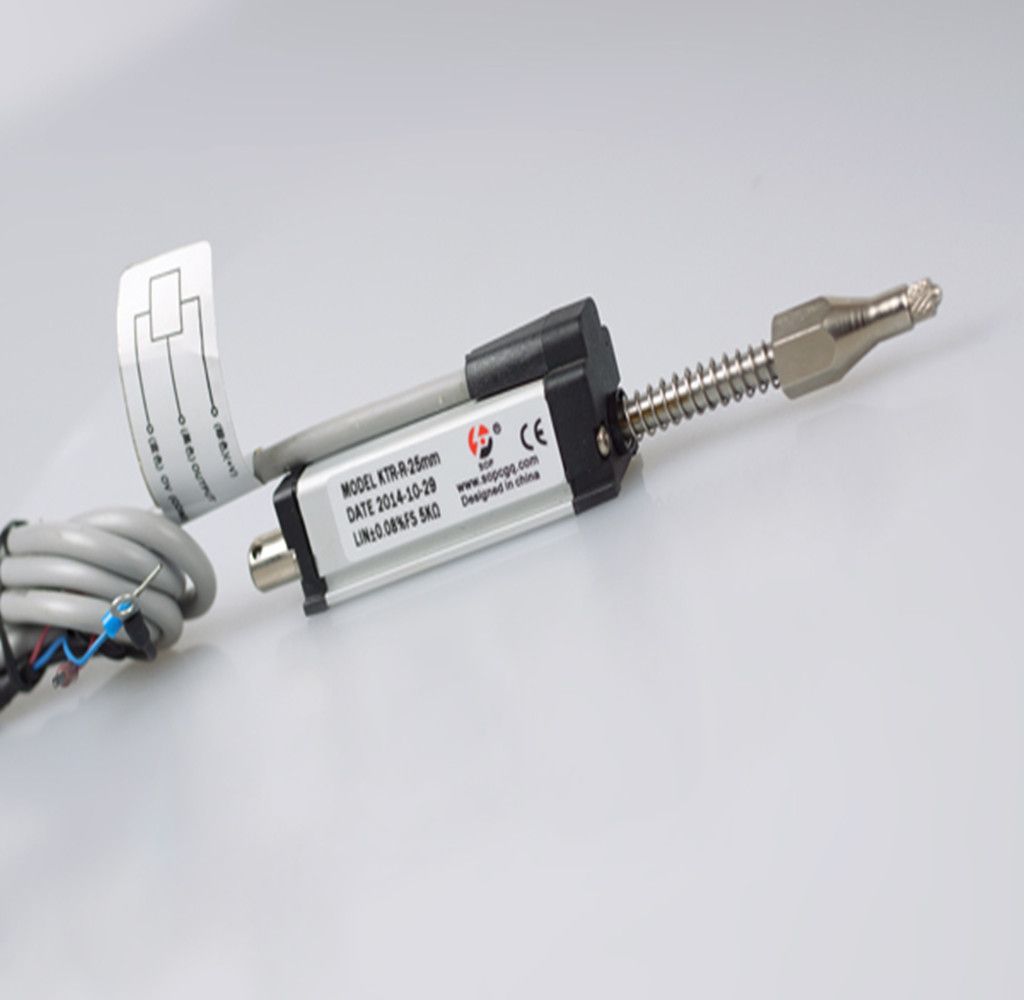

High Quality Mini Recover Type Line Displacement Sensor

Name: High Quality Mini Recover Type Line Displacement Sensor
Brand: all-electronics-online.com
SKU: 820095765
Availability: InStock
Rating: 4.9 (109 reviews)

Price:	US $ 96-116/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTR
Feature:	Linear Displacement
Repeatability:	0.01mm
Working Speed:	3m/S
Usage:	Mini Rod Series
Material:	Aluminum Alloy

Product Description

High Quality Mini Recover Type Line Displacement Sensor

15 years sensing technology crystallization focus on precise measurements of machinery industry, SOP company who never stop pursing the quality is just for you.
Poor selection of the industry's first high-profile, focus on quality, did not compete.

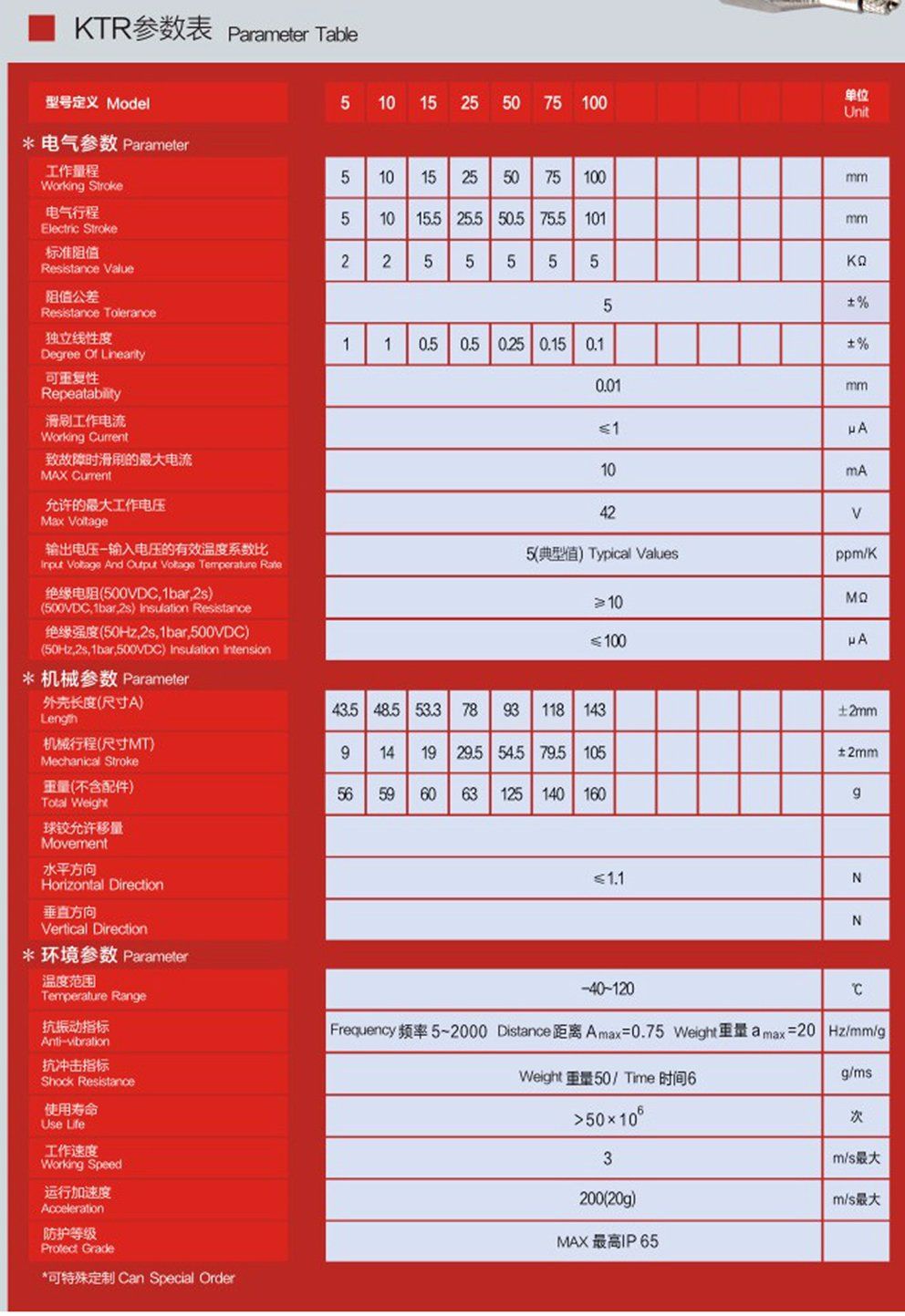

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction
mm	m/s	μA	mm	ºC	N
0.01	3	≤1	5-100	-40~120	≤1.1

General KTR miniature self-recovery series of linear displacement transducer, the effective stroke 5mm ~ 100mm, 2mm at both ends buffer stroke, precision 1% ~ 0.15% FS. Shell surface, anodizing, corrosion resistant; built-in conductive plastic measuring unit, no temperature drift, long life; with automatic electrical grounding function. Sealing rating of IP65, have a direct outlet and five-pin plug socket out two options, it can be applied in most common situations, especially for small installation space for the occasion; top putter no installation, no alignment, pushing angle 90 ± 3 °, allow pushing the limit velocity of 3m / s.

KTR Sensor Product feature:

Volume smaller
Usage life is longer, Times could reach fifty million
Sensor with back spring
Could use in all kinds of worse environment(humid, oily, dusty)
Protection grate is ip65
Din standard contact point
Double bearing type bar
Don't affect with an external impact and vibration
Cable type connection
Could equip with voltage and current(2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
