High Quality Motor for Shutter Door

Prod Model:	GY59W
Number Of Stator:	Single-Phase
Function:	Control
Application:	Electric Windows and Doors

Product Description

Product description


35/45/59//92mm tubular motor for window curtain/shutter/roller shutter blind

1.Stator size is optional
2.Safe, reliable, low noise, good starting, long life
3.Strong power
Rated voltage 5~120v/220~240v-50/60hz
Usage:Roller blinds, venetian blinds, honeycomb blinds, pleated blinds

Aluminum roller shutter motor / Roller Shutter Motor

A) Tubular motors are widely used on many roller products: Roller doors, roller shutters, curtains, blinds and screens
B) Output torque: 3NM-300NM
C) Control mode: Remote control, switch, motorized with manual override

Non -malfunction for the brake

Double sided magnetism, cone magnetism, electromagnetism brake system is used in this new type motor in order to meet different customers'requirement. It takes our team many years' research and test for the material of brake system which makes it perfect.

Adopted the plastic sealed technology, all the components have the accurate location dimension, low coefficient of the variation, and the service life time can be amounted to 10 years. Advanced design and crafts, the highest torque

Low noise delicate design and manufacture, the lowest noise is less than 38db, nearly silent move is bigger than the similar products in the same condition. Ment.

Strong intensity Adopted the special material, the gear is more wear-resisting, toughness and steel feature is more stronger which will increase the service life of the gear box.

Oil proof The sealed structure helped the gear oil hard to leak, ensure the gear works normally longer.

Accurate limit The accuracy for limit is <+-0.5 degree tolerance, limit configuration by screw pole drive makes accuracy for limit <+- 1.5 degree

Large effective limit Reasonable and compact design increases effective distance for limit very much, and the effectiveness could reach 50 circles.

Build-in remote control Good quality and stable receiver built in motor not only shorten the installation time, Effective distance for remote control system is more than 30m.

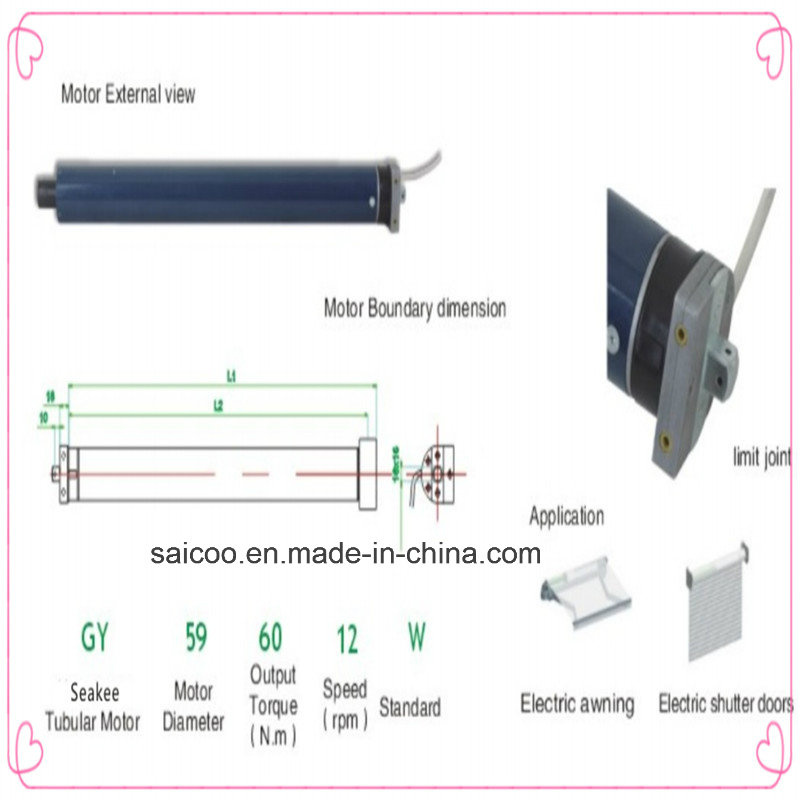

	Technical Data	Output Torque (N.m)	Voltage (V)	Frequency (Hz)	Speed (rpm)	Max limit Range (turn)	Current (A)	Power (W)	Time (mim)	Degree of Protection   (IP)	Length L1/l2 (mm)
230v/50hz
GY59W	GY59-60/12	60	230	50	12	30	1.2	280	4	IP44	615/596
	GY59-80/12	80	230	50	12	30	1.6	330	4	IP44	615/596
	GY59-100/12	100	230	50	12	30	2.0	430	4	IP44	615/596
	GY59-120/12	120	230	50	12	30	2.2	450	4	IP44	615/596
120v/60hz
GY59W	GY59-60/12	60	120	60	12	30	4.1	450	4	IP44	615/596
	GY59-80/12	80	120	60	12	30	4.1	450	4	IP44	615/596
	GY59-100/12	100	120	60	12	30	4.2	460	4	IP44	615/596
	GY59-120/12	120	120	60	12	30	4.4	470	4	IP44	615/596
