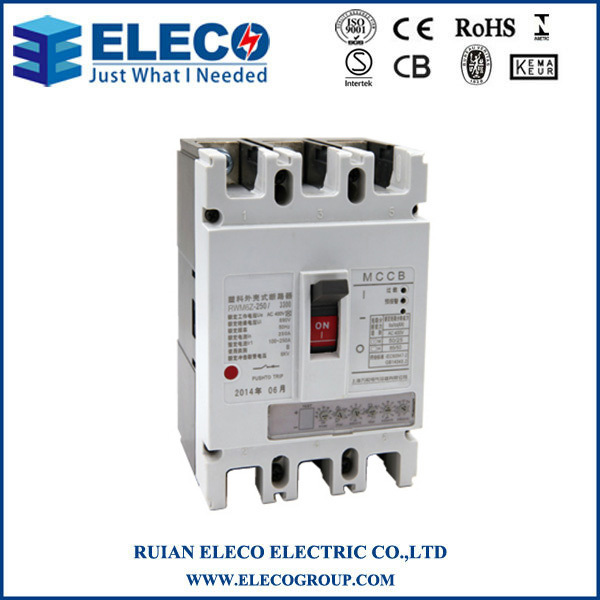

High Quality Moulded Case Circuit Breaker (EM6Z Series)

Prod Model:	EM6Z Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Current(a):	100,225,400,638(800)
Rated Current(a):	32,100,225,400,630
Rated Insulated Voltage(V):	690
Rated Voltage(V):	400
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	Semko
Poles Number:	1p, 2p, 3p, 4p

Product Description

Specification

Type	RWM6Z-100					RWM6Z-225				RWM6Z-400				RWM6Z-630				RWM6Z-800
Shell Frame Rated Current	100					225				400				630				800
Rated Current In(A)	32			100		225				400				630				800
Long time delay setting current Ir(A)	16-32 adjustable			40-100 adjustable		100-225 adjustable				160-400 adjustable				250-630 adjustable				320-800 adjustable
Rated Insulated Voltage (V)	AC690
Rated Voltage(V)	AC400
No. of Poles	3		4		3			4	3			4	3			4	3			4
Breaking Capacity Degree	M	H			M		H		M		H		M		H		M		H
Rated Ultimate short-circuit Breaking Capacity	50	65	50		50		70	50	50		70	50	50		70	50	50		70	50
Rated Runing short-circuit Breaking Capacity	30	40	30		30		40	30	30		40	30	30		40	30	30		40	30
Flashover Distance	≤50				≤50				≤70				≤70				≤70
