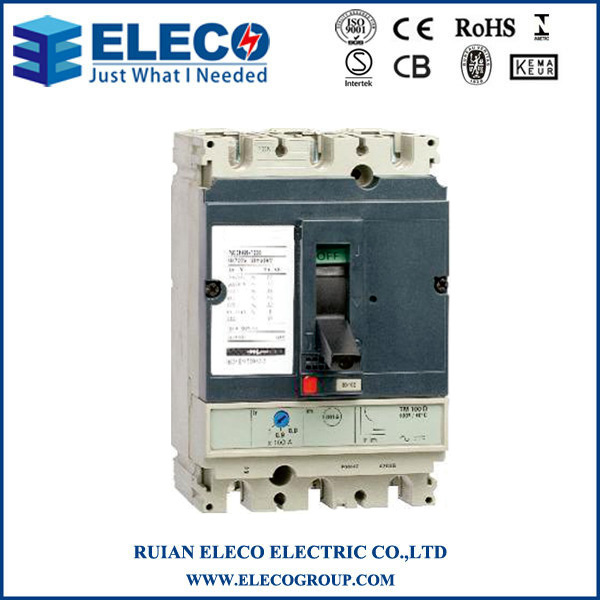

High Quality Moulded Case Circuit Breaker (EOM8C Series)

Prod Model:	EOM8C Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell Frame Rated Current Inm (a):	2000,3200,4000,6300
ICU(Ka)O-Co:	80,100,120
Rated Short-Circuit Capacity:	105/0.25,143/0.2,165/0.2
Rated Running Short Circuit Breaking Cap:	50,60,80,100
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	Semko
Poles Number:	3p, 4p

Product Description

Application
The EOM8C series plastic outer covering type circuit breaker is suitable in exchanges 50/60Hz, the fixed working voltage is highest to 550V, normal current in the 15-630V low pressure electrical power distribution system uses in protecting the dis tribution line and the current collector, exempts is overloaded,the short circuit and the earth fault harm, provides the power supply the continuity and the reliability.

Specification

Specification		EOM8C-100	EOM8-250
Number of poles		3	3
Rated current In (A)		15,20,25,30,40,50,60,75,80,100	125,160,225,250
Rated operating Voltage Ue(V)AC50/60Hz		500	500
Rated insulation Voltage Ui(V)		500	500
Rated Uimp(kA)		6	6
Mechanical life(times)		8500	8500
Electrical life(times)		4000	4000
Over current protection	Thermal-Magnetic Protection	Fixed	Fixed
	Electronic protection	Fixed	Fixed
Size(mm)L*W*H		130*75*65	166*110*65

About us
ELECO Electric is one of the most specialized manufacturers and exporters for modular electric terminal devices for household and similar installations in China. The wide range products under manufacturing covers Miniature Circuit Breaker(MCB),Residual Current Circuit Breaker(RCCB), Residual Current Circuit Breakers with Overcurrent Protection(RCBO),Switch -disconnector,Distribution Box, Moulded case circuit breaker(MCCB), air circuit breake (ACB), AC Contactor,Magnetic Dtarter, Motor Protection Circuit Breaker, Thermal Relay and K.W.H meter etc.The company takes the reputation as one of the largest manuafacturer of electro-magnetic type RCCB and RCBO. OEM or ODM projects are fully accepted, and currently the company is co-operating with numbers of renowned international corporations for such projects.
Experience in manufacturing under customers design, trade, biding project, OEM and competitive cooperation related to the new products & technology. Won approvals of CE, SEMKO, CB, KEMA, FI, CCC and ISO9001 Quality System Certificate etc. Products being popular around the world, such as Europe, America, Southeast Asia, Middle East, Africa, etc.
