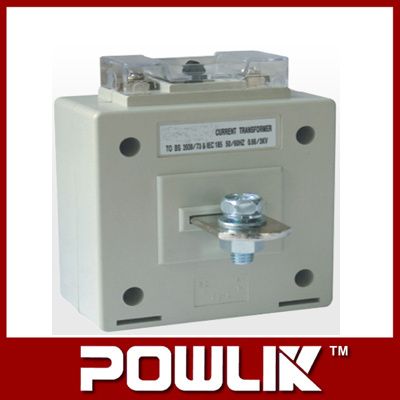

High Quality Msq Series Current Transformer

Name: High Quality Msq Series Current Transformer
Brand: all-electronics-online.com
SKU: 698039295
Availability: InStock
Rating: 4.9 (139 reviews)

Price:	US $ 1.8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50/60Hz
Rated Current:	5A---6000A
Safe Factor:	Fs5
Secondary Current:	5A/1A
Type:	Current Transformer
Phase:	Both

Product Description

MSQ Series Current Transformer

1. DESCRIPTION
A range of (8 frames) classic plastic case current transformer, low cost, rich range can match most requirements internationally.

2. FEATURE
Two built in fixing methods: 1 side base; Busbar mounting
Transparent terminal cover
Primary current up to 6000A

3. SPECIFICAIONS
Rated Frequency 50/60Hz
Rated test voltage 3kV AC. (1 min)
Rated short-time thermal current(Ith) 60In
Rated dynamic current, (Idyn) 2.5Ith
Rated voltage, (Um) 0.72Kv AC.
Continuous overload, (ID) 1.2In
Operating temperature 10º C~50º C
Housing self-extinguishing class VO
Safety factor FS 5
Secondary current 5A/1A

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
