| Prod Model: |
SZH-987PCB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Western Europe |
| Layer: |
2 |
| Copper Thickness: |
6oz |
| Board Thickness: |
2.0mm |
| Solder Mask Colour: |
Green |
| Silk Screen Colour: |
White |
| Tg Value: |
130 |
| Cti Rating: |
175 |
| Surface Finish: |
Enig |
| Min Hole: |
0.75mm |
| Min Trace Width: |
0.35mm |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Epoxide Woven Glass Fabric Laminate |
| Production Process: |
Semi-Additive Process |
Product Description

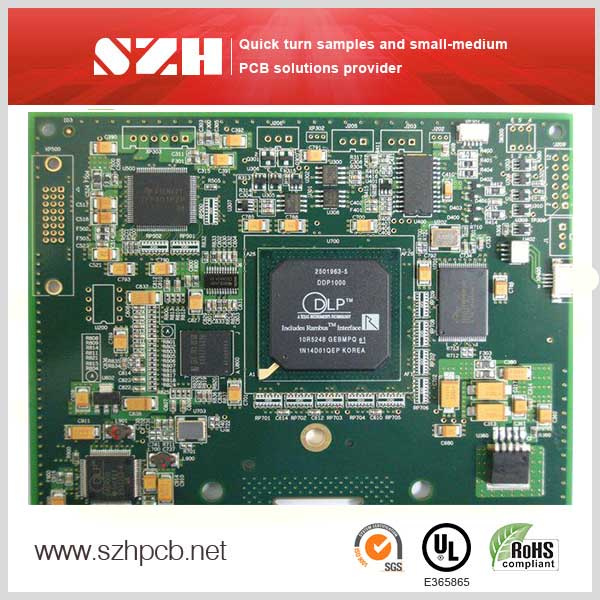

High Quality OEM Fr4 Printed Circuit Board PCB Board PCBA
1, RoHS & Lead Free
2, UL & ISO certified
3, Quality & service
4, Quick turn PCB
5, Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold
6, Solder mask colour: Green/white/yellow/blue/red/black
7, Silk screen: White/black/yellow/red/blue/green
Welcome to Sunthone Technology Circuit Co,.Ltd
We deliver services, not only products.
We offer solutions, not only goods.
1. Who we are
| PCB Manufacturer | Flexibility | Quality |
| Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. | Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2. Support
Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.075mm | Min Annular Ring | 0.1mm |
| Min Space | 0.075mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.15mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
3. PCB + Assembly
More and more of our existing PCB customers are now asking us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' requirements, Sunthone develops from a PCB manufacturer to a one-stop PCBA service provider, including PCB assembly, components sourcing, stencils, cable assembly and final product assembly and testing.
| Available Services | Assembly Technologies |
PCB Manufacturing
PCB Assembly
Components Sourcing
SMT Stencils
Cable Assembly
PCBA Testing
Final Product Assembly |
SMT
THT
Reflow Soldering
Wave Soldering
Hand Soldering
Repair/Rework
Mixed Assembly Technologies |
Delivery Time for PCB board:
1) PCB production time: sample: 3-4 days / mass production: within 7 days
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: samples: whthin 2 days / mass production: within 5 days
Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal,T/T,West Union,etc.
We sincerely hope to establish longtime and friendly business relationship with you. If you have interest in our product, please don't hesitate to contact us !
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
