| Prod Model: |
OhmAlloy1J46 |
| Certificate: |
SGS, ISO, RoHS |
| Sample: |
Free Sample |
| Resistivity(μΩ.M): |
0.45 |
| Density, G/cm3: |
8.2 |
| Surface Treatment: |
Bright or Oxidation |
| Application: |
Magnetic Field |
| Saturation Magnetostriction Coefficient: |
25 |
| Curie Point Tc/ ºC: |
400 |
| Product Type: |
Strip |
| Material: |
Feni Alloy |
| Carbon Content: |
No |
| PCD: |
No |
| ET: |
No |
| Hole: |
No |
Product Description
OHMALLOY

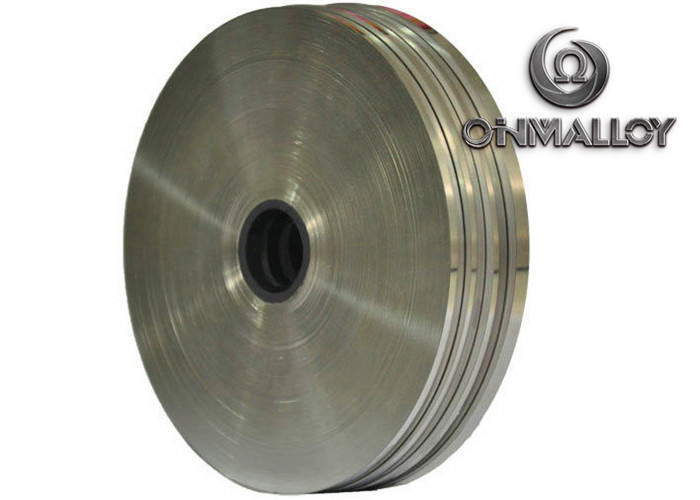

OhmAlloy-1J46 (Soft magnetic alloy)
(Common Name: Ni46, E11e, 46H, 45-permalloy, PB)
Ohmalloy-1J46 is a nickel-iron magnetic alloy, with about 46% nickel and iron content. It is derived in accordance with permalloy. It has characteristics of high permeability and high saturation magnetic flux density.
Alloy melting in a vacuum medium, cast into ingots, after hot forging blanks made of sheet metal, and then after hot rolling, pickling, surface treatment, cold rolling into finished products.
Ohmalloy-1J46 Iron-nickel alloy( soft magnetic alloy) mostly in an alternating magnetic field used mainly for high magnetic yoke, sensitive relays, low-loss micro-motor, small power transformers, pulse transformer, transistor switches, magnetic amplifier magnetic modulator, sensitive signal input and output transformers, magnetic heading aviation instrumentation magnetic sensor, magnetic susceptibility measurement instrument components, precision meter movable piece and the stator magnetic shielding and magnetic temperature compensation element.
Normal composition%
| Ni | 45~46.5 | Fe | Bal. | Mn | 0.6~1.0 | Si | 0.15~0.3 |
| Mo | - | Cu | ≤0.2 | | | | |
| C | ≤0.03 | P | ≤0.02 | S | ≤0.02 | | |
Typical Mechanical properties
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| - | - | 3~35 |
Typical Physical properties
| Density (g/cm3) | 8.2 |
| Electrical resistivity at 20ºC(Om*mm2/m) | 0.45 |
| Coefficient of linear expansion(20ºC~200ºC)X10-6/ºC | - |
| Saturation magnetostriction coefficient λθ/ 10-6 | 25,0 |
| Curie point Tc/ ºC | 400 |
The magnetic properties of alloys with high permeability in weak fields |
| 1J46 | Initial permeability | Maximum permeability | Coercivity | Saturation magnetic induction intensity |
Сold-rolled strip/ sheet.
Thickness, mm | μ0.08/ (mH/m) | μm/ (mH/m) | Hc/ (A/m) | BS/ T |
| ≥ | ≤ |
| 0.02~0.04 mm | 1.6 | 22.5 | 32.0 |
1.5 |
| 0.1~0.19 mm | 2.5 | 31.3 | 20.0 |
| 0.2~0.34 mm | 3.1 | 37.5 | 16.0 |
| 0.35~2.50 mm | 3.5 | 45.0 | 12.0 |
| Bar | |
| 8-100 mm | 2.5 | 31.3 | 16.0 |
| Mode of heat treatment |
| Annealing media | Vacuum with a residual pressure not higher than 0.1Pa, hydrogen with a dew point of not higher than minus 40 ºC. |
| The heating temperature and rate | 1100~1150ºC |
| Holding time/h | 3~6 |
| Cooling rate | With 100 ~ 200 ºC/ h cooled to 600 ºC, Rapid cooling to 300 baked |
Style of supply
| Alloys Name | Type | Dimension | |
| OhmAlloy-1J85 | Wire | D= 0.1~8mm | |
| OhmAlloy-1J85 | Strip | W= 8~390mm | T= 0.3mm |
| OhmAlloy-1J85 | Foil | W= 10~100mm | T= 0.01~0.1mm |
| OhmAlloy-1J85 | Bar | Dia= 8~100mm | L= 50~1000 |
FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
