High Quality Oil Immersed Voltage Stabilizer, Regulator

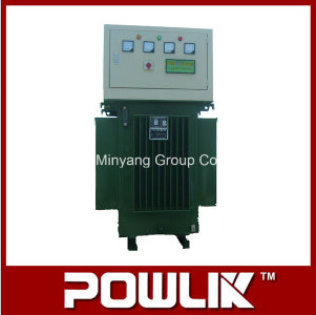

Name: High Quality Oil Immersed Voltage Stabilizer, Regulator
Brand: all-electronics-online.com
SKU: 775674005
Availability: InStock
Rating: 4.8 (64 reviews)

Price:	US $ 1008/Piece
Trade Terms:	FOB,CIF,FCA
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	TDSJA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	100-3000kVA
Input Voltage:	380V
Output Voltage:	360-400V
Response Time:	0.5s
Current Type:	AC
Phase:	Three Phase
Frequency:	Industrial Frequency
Usage:	Tdsja

Product Description

High Quality Oil Immersed Voltage Stabilizer, Regulator

1.Feature:

Capacity: 100~3000KVA

Input Voltage: 380V ±15%

Phase : 3

Output Voltage: 360V~400V (Adjustable)

Accuracy: ±2%(1~5% adjustable)

Voltage Correction: 360~420V(Settable)

Frequency: 50Hz

Response time: < 0.5s

Protection: Over voltage and under voltage protection, phase protection

Efficiency: > 98%

Wave disform: < 3%

Dielectric strength: 2000V/60s < 20mA

Insulation resistance: > 5MΩ

Embient temperature: -10°C ~ +40°C

Humidity: < 95%

Temperature rise: < 55°C

Noise: < 65dB

2.Application conditions:

The product must be install in the indoor.

The sea level is not exceed 1000M, the environmental temperature, highest temperature is +40°C, highest day average temperature is +30°C, highest year average temperature is +20°C, lowest temperature is -5°C.

The waveform of the power voltage is similar to since wave.

There should be no severe gas, steam, dust, smudging, chemical sediment and other explosive or erosive medium in the installation location.

There are no severe shake and jounce in the installation location.

The voltage stabilizer shouldn't running in parallel connection.

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
