Product Description

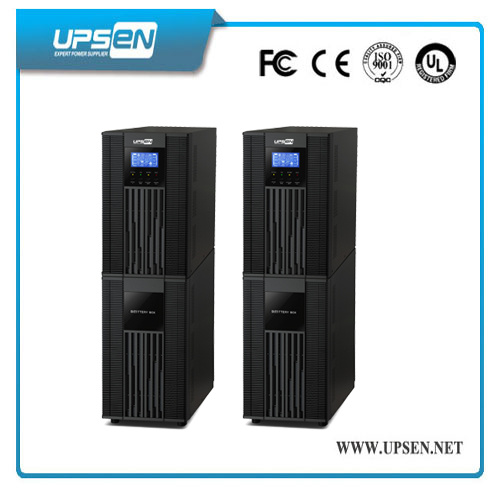

High Frequency Online UPS Green Star Series 6K-20Kva (1ph in/1ph out) (3ph in/1ph out)
Applications
servers,Army Technology,camcorder, the Internet, GPS,Medical Systems,Network,sensitive electronic equipment, securities system,telecom etc.
key features
1.automatic testing function
2.DSP full digitalized control
3.friendly computer-human interface
4.Equipped with maintenance bypass switch
5.True sine-wave output with less than 3% THD
6.built-in automatic and manual battery test feature
7.Auto restart when power up(battery is empty)
8.Built-in phase auto adapt function simplifies wire installation
9.Large LCD display monitor various real-time information at a glance
10.high reliability: full microprocessor control with no-break static and manual by-pass
11.Excellent reliability based on power frequency online dual conversion technology
Technical Specification
| | | |
green star 6k/10k online ups specification |
| model | g6k (l) | g10k (l) |
| phase | 1 phase in / 1 phase out |
| capacity | 6000 va / 4800 w | 10000 va / 8000 w |
| input |
| nominal voltage | 208/220/230/240vac |
| voltage range | low line loss | 110 vac ± 3% at 50% load
176 vac ± 3% at 100% load |
| low line comeback | 120 vac ± 3% at 50% load
186 vac ± 3% at 100% load |
| high line loss | 300 vac ± 3% |
| high line comeback | 290 vac ± 3% |
| frequency range | | 46 hz ~ 54 hz or 56 hz ~ 64 hz |
| power factor | >= 0.99 @ 100% load |
| output |
| nominal voltage | 208/220/230/240vac |
| ac voltage regulation | ± 1% |
| frequency range (synchronized range) | 46 hz ~ 54 hz or 56 hz ~ 64 hz |
| frequency range (batt. mode) | 50 hz ± 0.1 hz or 60 hz ± 0.1 hz |
| current crest ratio | 3:1 (max.) |
| harmonic distortion | <= 3 % thd (linear load)
<= 6 % thd (non-linear load) |
| transfer time | bypass to inverter (line mode) | zero |
| inverter to bypass (line mode) | zero |
| waveform (batt. mode) | pure sinewave |
| efficiency |
| line mode | 89% | 90% |
| battery mode | 88% | 89% |
| battery |
| standard model | battery type | 12 v / 7 ah | 12 v / 9 ah |
| numbers | 16 | 16 |
| typical recharge time | 9 hours recover to 90% capacity |
| charging current | default:1.0 a ± 10%, max.:2.0a ± 10% | default:1.0 a ± 10%, max.:2.0a ± 10% |
| float charging voltage | 218.4 vdc ± 1% |
| long-run model | battery type | depending on applications |
| numbers | 16-20** (adjustable) |
| charging current | default:4.0 a ± 10%, max.:6.0a ± 10% | default:4.0 a ± 10%, max.:6.0a ± 10% |
| float charging voltage | 273 vdc ± 1% (based on 20 pcs batteries) |
| indicators |
| lcd panel | ups status, load level, battery level, input/output voltage, discharge timer, and fault conditions |
| alarm |
| battery mode | sounding every 4 seconds |
| overload | sounding twice every second |
| fault | continuously sounding |
| physical |
| standard model | dimension, d x w x h (mm) | 369 x 190 x 688 | 442 x 190 x 688 |
| net weight (kgs) | 60 | 75 |
| long-run model | dimension, d x w x h (mm) | 369 x 190 x 318 | 442 x 190 x 318 |
| net weight (kgs) | 21 | 23 |
| environment |
| operation humidity | 0-95 % rh @ 0- 40°c (non-condensing) |
| noise level | less than 55dba @ 1 meter | less than 58dba @ 1 meter |
| management |
| smart rs-232/usb | supports windows® 2000/2003/xp/vista/2008, windows® 7/8, linux, unix, and mac |
| optional snmp | power management from snmp manager and web browser |
| | | | |
| *derate capacity to 60% of capacity in cvcf mode and to 90% when the output voltage is adjusted to 208vac. |
| *if the ups is installed or used in a place where the altitude is above than 1000m, the output power must be derated |
| one percent per 100m. | | |
| *product specifications are subject to change without further notice | |
* long-run model is only available in 200/208/220/230/240vac systems.
