High Quality Panel Mounted Terminal

Prod Model:	M12-4P-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contact No:	4 Pin
Voltage Rating:	110V
Current Rating:	5A
Wire Gague:	1.0mmsq - 0.2mmsq
Panel Thickness:	1mm-3mm
Mechanical Life:	3000 Mating Cycles
Operating Rating:	-40 Degree - +105 Degree
Waterproof Level:	IP67
Pin Layout:	2p/3p/4p/5p/6p/7p/8p
Cable Range:	3.5mm - 7.5mm
Type:	Socket Terminals
Material:	Copper
Application:	Conduct Electricity
Certification:	Ce
Brand:	Llt

Product Description

Specifications

wire to board waterproof connector
* IP68 protection degree
* Max. Cable OD: 7.5mm
* 5A, 500V
* Factory  price

Contacts No	1	2	3	4	5	6	7	8
Voltage rating	110V	110V	110V	110V	60V	60V	60V	60V
Current Rating	5A	5A	5A	5A	3A	3A	3A	3A
Wire Gange	<=1.0mmsq	<=1.0mmsq	<=0.75mmsq	<=0.5mmsq	<=0.3mmsq	<=0.2mmsq	<=0.2mmsq	<=0.2mmsq
Mechanical life	3000 mating cycles
Operating rating	-40 degree -- +105 degree
Waterproof level	IP 67
Pin layout	2 Pole	3 Pole	4 Pole	5 Pole	6 Pole	7 Pole	8 Pole
Cable range	3.5mm -7.5mm

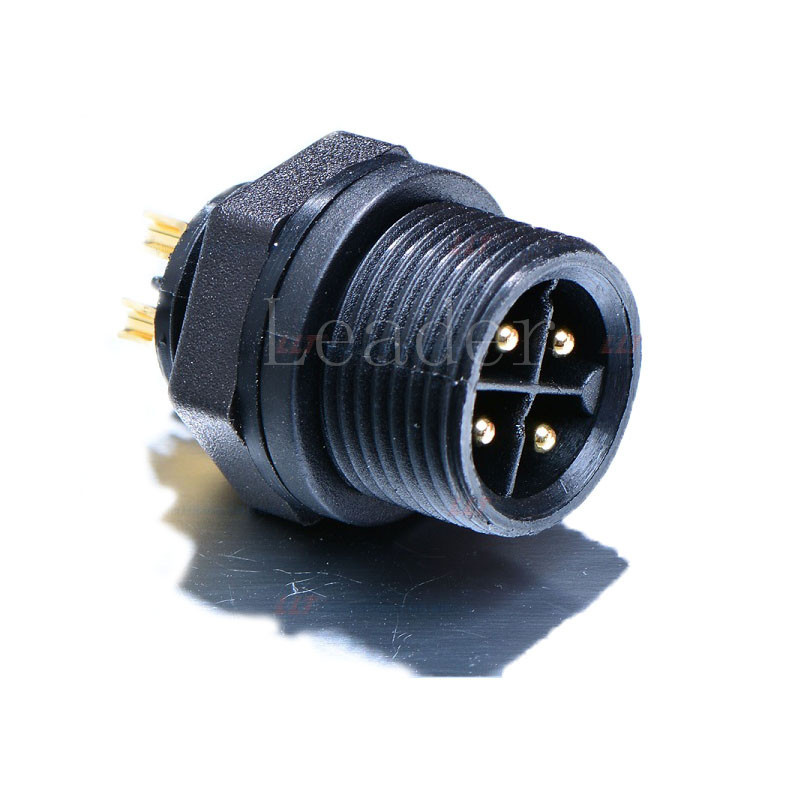

4 pole M12 male panel, rear mounted, wire to panel connector

* IP68 protection rating
* CCC, CE,ROHS certificated
* 7.5mm Max. Cable OD
* Panel rear mounted,  soldering connection
* 12 months quality waranty

Applications

PV inverter

Electric vehicle

Medical equipment

Interactive Smart Grid

Automation machine

Industrial PC

Marine device

Outdoor LED display

Outdoor LED lighting

Company

LEADER TECHNOLOGY(SHENZHEN)CO.,LIMITED is a new energy enterprise,located in SHENZHEN, China,specializing in R&D,manufacturing and marketing solar connectors,PV junction boxes,solar box and PV assembles etc.,with an integrated utilization from solar modules,solar energy appliance to on/off-grid solar power generation systems, and by the products R&D,mold design,production,sales through-train service.With advanced technology,our products have been authorized by TUV Rhineland,UL,CE successfully.

LEADER Company adheres to self-R&D,strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, hold the belief of "survive for excellence,development for innovation",insist on being professional,large-scale brand.

Business Type	- Manufacturer       - Exporter
Export Percentage	- 85 percent
Year Established	- 2008
Registered capital	- 10,000,000
Certificate	- CE - TUV - ISI - ISO9001
Primary Competitive Advantages	- Professionalism - Quality Test -Equipment - Reliability - Fast response - Totally Solution - Technical Support
No. of Total Staff	- 100 to 200
Product Range	- Solar Connector  - PV solar junction box - Waterproof cable  - Solar Cable
