Cixi Wanjie Electronic Co., Ltd. >> High Quality PCB Spring Terminal Block (WJ142R)

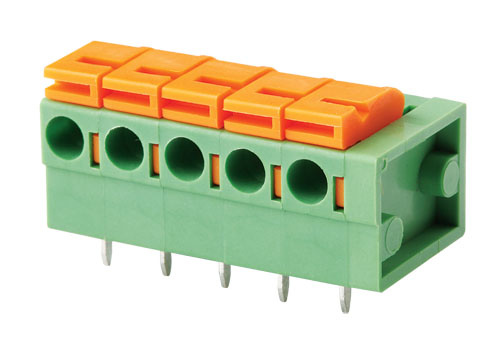

High Quality PCB Spring Terminal Block (WJ142R)

High Quality PCB Spring Terminal Block (WJ142R)
Price: US $ 0.036-0.038/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Piece
Pay Type: L/C,T/T

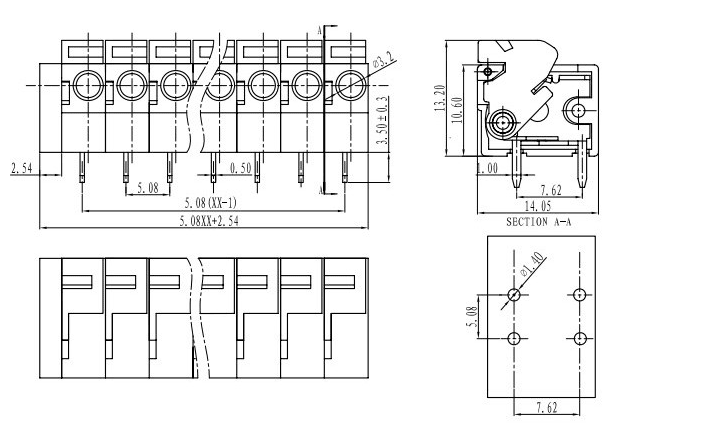

Prod Model: WJ142R-5.0/5.08/7.5/7.62mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch: 5.0mm,5.08mm,7.5mm,7.62mm
Environmental Protection: Resistance to Environmental
Shape: Rectangle
Application: PCB
Connection Mode: In-Line Connector
Brand: Wanjie
Type: Electric Connector

Product Description

We have passed the ISO9001:2008 quality management system, the products have been approved by VDE, SGS, CE, CB, CQC, andC US.
An excellent management team,Fast delivery time,High quality.


CIXI WANJIE ELECTRONIC CO., LTD was founded in 1992 and specializes in the production of terminalblocks, including screw, screwless, pluggable, feed through, barrier, din railterminal blocks, electronic housing, and solderless breadboard.

Material
    Wire Guard    Stainless Steel
    Pin HeaderBrass, Sn Plated
HousingPA66, UL94V-0



Electrical
StandardULIEC
Rated Voltage     300V    250V
Rated Current        10A   15A
     Wire Range
     22-16AWG
Contact Resistance20
Insulation Resistance    500/DC500V
Withstanding VoltageAC2000V/1Min
Mechanical
Temp Range-40º C ~ +105º C
Max. Soldering+250º C, for 5 sec
Strip length    9-10mm

  For better service to the customers, we can also design, develop and produce according to customer's requirement for OEM/ODM products.
Cixi Wanjie Electronic Co., Ltd., is founded in 1992 and specializes in making terminal block and solderless breadboard. We have passed the ISO9001: 2000 quality management system and the products have been approved by VDE, UL, CE, SGS, CQC, RoHS and TUV.

With many years development, we have built an excellent management team and have our own R & D center, mould production, plastic injection, hardware stamping and assembling workshop. So we will give you the best offer also we can design, develop and produce the products according to customers' Request.

We have adopted advanced production and test equipment, so that we could offer good quality and more competitive products. For better service to the customers, we can also design, develop and produce according to customer`s requirement for OEM/ODM products.

With the advanced equipment and production line, good quality, competitive price and good service, our products are sold far to America, Europe, Middle East, Africa etc and receive good comments from the customers. So the company shows warm welcome to consult the business with all the customers both at home and abroad.

All the staff of company will strive together for a better tomorrow and show warm welcome to the customers of allover the world.
