| Prod Model: |

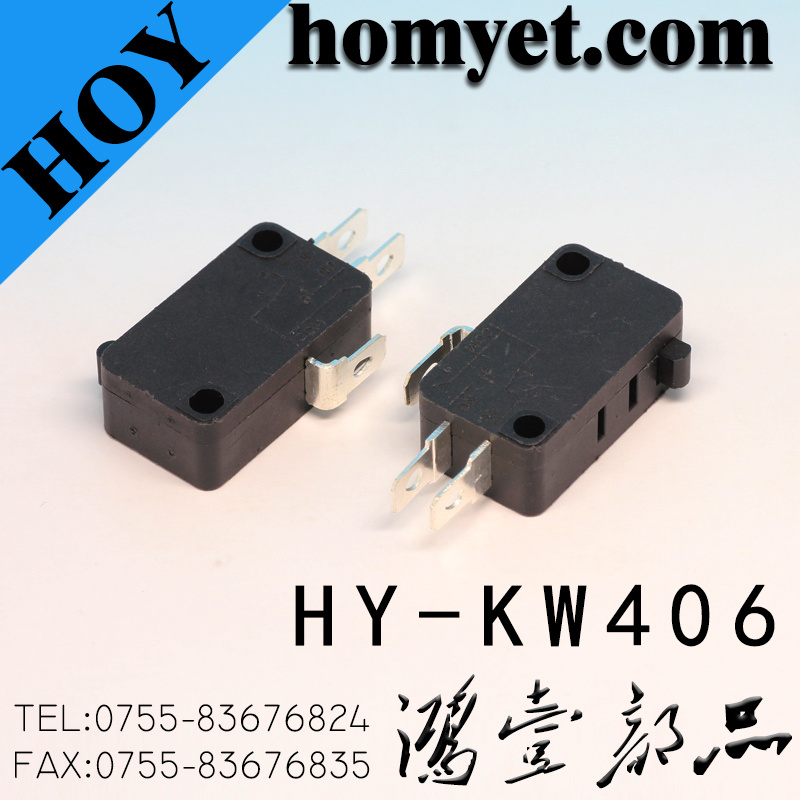

HY-KW406 |
| Pressing Type: |
Push-Button |
| Protection: |
Dust-Proof |
| Size: |
Normal Size |
| Environment: |
≧250℃﹤400℃ |
| Breaking Capacity: |
General Type |
| Breaking Form: |
Duplex Type |
| Brand: |
HOY |
Product Description
Product Description
Key Specifications/Special Features:
. Small Compact Size
. Global Safety Approvals
. Long Life and High Reliability
. Variety of Levers Optional
. Variety of Terminals
. Customized Designs
. Widely Used in Appliance and Industry Control
Technical Specification
| Rating | 3A, 8A, 16A/250VAC, 125VAC 0.6A/125VDC 0.3A/250VDC |
| Initial contact resistance | ≤25mΩ |
| Initial insulation resistance ( At 500V DC) | ≥100mΩ |
| Dielectric strength | Between non-consecutive terminal | 1000Vrms, 50/60Hz, 1min |
| Between current carrying and non-carry metal parts | 1500Vrms, 50/60Hz, 1min |
| Between ground and each terminal | 1500Vrms, 50/60Hz, 1min |
| Max. Shock resistance | Mechanical durable | 1000m/s2 |
| Malfunction | 300m/s2 |
| Vibration resistance | 10-55Hz, 1.5mm double amplitude |
| Expected life | Mechanical | 20000000 |
| Electrical | 100000 |
| Ambient temperature | -25 to +85 |
| Ambient humidity | 85%RH max |
| Operating frequency | Mechanical | 60 times/min |
| Electrical | 25 times/min |
| Operation speed | 0.01mm-1m/s |
Application:
. Walkie Talkie
. Mouse
. Electric Knife
. Electric Stapler
. Telephone
. Calculator
. Mixer&Chopper
. Electric Pan
. Battery Charger
. Video Cassette Rewinder
. Cordless Phone
. Alarm
. Tester Machine
. Home Appliance
Packaging & Shipping
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery
Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
Shenzhen Homyet Parts Electronics Co., Ltd is committed to electronic components parts & Cables development, which we do design & production and sales by ourselves . Our company keep with "Faithfulness & Mutual Benefit " as our Philosophy, and "Quality Is The Life, And Integrity Is The Development" as our Mission Statement! Our target is "Create A Word-Class Brand " ,so we stick to innovation and strict quality control. In order to adaptation the requirements of market, we develop a series of new product successful and push in market.
Our main products include all type of switch/Phone jack/power jack/Cable & connector etc. Our products are widely used in Computer products, Consumer products, Communication equipments, Instrumentation and other related fields. The rapid development of the company, our term be coming bigger with professional manager and technical personnel. All of our products are compliance with RoHS, and our company got the certification of RoHS and CE! We are looking forwarder all of respective customer visit our company and welcome your trial order to start our cooperation in any time. Homyet Parts will act locally, think globally, and create a brilliant tomorrow for Global electronic consumer industry, return better products and services to faithful users with more perfect high-tech products.
You are always welcome to visit us, and we will do our best to work with you.
Don't be hesitate, send inquiry in below now. We'll reply you within 24Hours in working time !
