| Prod Model: |
fast connector |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Fiber Diameter: |
0.25/0.9/3.0mm or 3.0X2 Drop Cable |
| Insertion Loss: |
PC≤0.3db, Upc≤0.2db, APC≤0.2db |
| Return Loss: |
PC≥40db, Upc≥50db, APC≥60db |
| Repeatability: |
<0.1db |
| Interchangeability: |
<0.2db |
| Tensible Strength: |
60n(6kgs) |
| Certification: |
CE, ISO |
| Condition: |
New |
| Connector Type: |
Sc/Upc |
Product Description
Specifications
No adhesives, crimping or polishing
True APC performance
Fibers to be fusion-spliced
Fast connector
Product description
item Code: Features: Techwin Splice-on Connector is actually an optical fiber fusion, however the welding
point is in the inner end of connector, which makes it no necessary for extra protection equipment ,such as
fiber protection plate(optical fiber splice tray),optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. Compared to mechanical optical fast connector, this new practical connector can improve the span life of welding point of connector and reduce maintenance cost.
Techwin Splice-on-Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate
(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion.Compared to mechanical optical fast connector, this new practical connector can improve the span life of
welding point of connector and reduce maintenance cost.
Features:
Field installable
Only four components
No adhesives, crimping or polishing
True APC performance
Fibers to be fusion-spliced
Applications:
Connectorization in RF-overlay TTTP networks
Connectorization in cable TV backbone networks
Connectorization in outside plant
Connectorization in FTTDesk
Connectorization in MDU FTTP cabling
Data center installation
Central office connector replacement
Specifications:
Item |
Singlemode fiber |
Fiber diameter |
0.25/0.9/3.0mm or 3.0x2 drop cable |
Insertion loss |
PC≤0.3dB,UPC≤0.2dB,APC≤0.2dB |
Return loss |
PC≥40dB,UPC≥50dB,APC≥60dB |
Repeatability |
<0.1dB |
Interchangeability |
<0.2dB |
Working temperature |
-40°C-+80°C |
Tensible strength |
60N(6KGS) |
connector type |
SC/UPC |
Product details

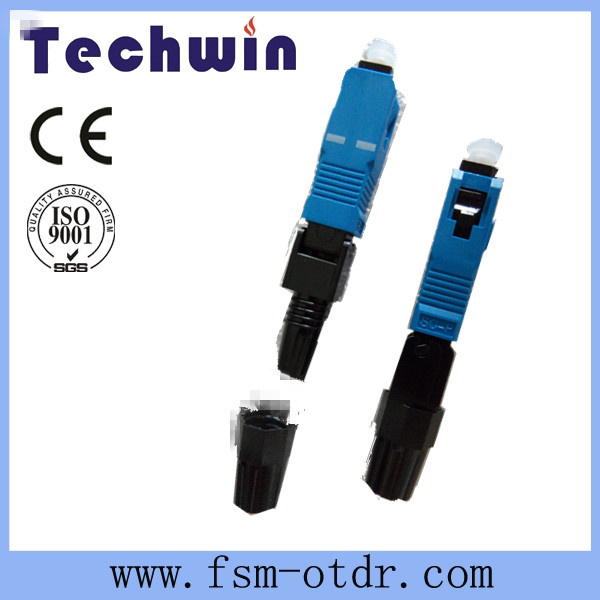

Techwin Splice On Connector
No adhesives, crimping or polishing
Item | Singlemode fiber |
| Fiber diameter | 0.25/0.9/3.0mm or 3.0x2 drop cable |
| Insertion loss | PC≤0.3dB,UPC≤0.2dB,APC≤0.2dB |
| Return loss | PC≥40dB,UPC≥50dB,APC≥60dB |
| Repeatability | <0.1dB |
| Interchangeability | <0.2dB |
| Working temperature | -40°C-+80°C |
| Tensible strength | 60N(6KGS) |
| connector type | SC/UPC |
