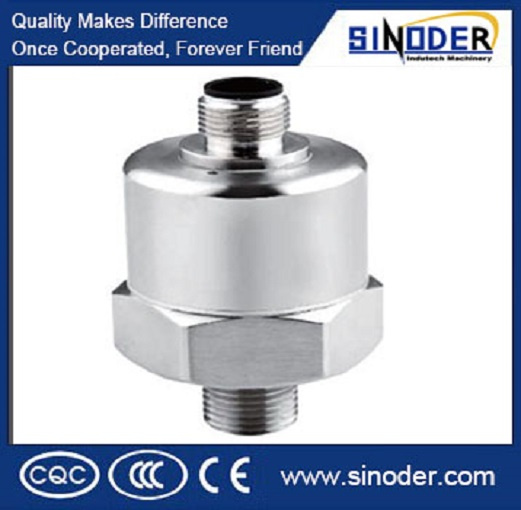

High Quality Pressure Sensor Apply for Hydraulic System
| Price: |
US $ 10/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,D/P |
| Prod Model: |
T901 |
| Respone Time: |
10ms |
| Capacity: |
-100kpa~35m PA |
| Weight Approx.: |
0.2kg |
Product Description
high quality pressure sensor apply for Hydraulic, die-casting, centralair conditioning system etc.
Features & Applications
Miniature pressure sensorHigh sensitivityMade of stainless steel.Applications: Hydraulic, die-casting, centralair conditioning system, constant pressure water supply, locomotive braking systems,light industry, machinery, metallurgy,petrochemical, environmental protection,air compressor and other automatic control systems.
| Specifications | Technique |
| Capacity | -100kPa~35M Pa |
| 2wires | 4~20mA |
| 3wires | 0~5V,1~5V,0~10V |
| 3wires | 0~10mV |
| Comprehensive accuracy | 0.25~0.5% F.S. |
| Power supply | 5~10VDC(Sensor)
12~30VDC(Transmitter) |
| Medium temperature | -20ºC~85ºC
-20ºC~150ºC(Option) |
| Ambient temperature | -20ºC~85ºC |
| Load resistance | Voltage type≥50kΩ
Current type≤800kΩ |
| Insulation | ≥5000MΩ/50VDC |
| Respone time | 10ms |
| IP Class | IP65 |
| Long term stalibity | 0.1%F.S./Year |
| Vibration effects | 20~1000HZ<0.2% F.S.
Impact is less than 0.2% F.S. |
| Electrical interface | M12×1 |
| Thead connection | M12×1 |
| Cable size | φ5×1500mm |
| Weight approx. | 0.2kg |
| Material | Stainless Steel |
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
