| Prod Model: |
Z900E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Power 220V: |
0.4-3.7kw |
| Input Power 380V: |
0.75-160kw |
| Startup Torque: |
G Type 0.5Hz/150% |
| Place Of Origin: |
Fujian China |
| Output Frequency: |
0~400Hz |
| Altitude: |
Lower Than 1000m |
| Vf Separation: |
Two Type: Complete Separation .Half Separation |
| Torque Boost: |
Auto Boost .. Customized Boost 0.1%-30.0% |
| Pid: |
Built in Pid |
| Speed Stability Accuracy: |
+-0.5% Sfvc |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Current |
| Switch Mode: |
Open Loop Vector Control |
| Brand: |
Machtric |
| Function: |
Frequency Inverter |
| Nature Of DC Power: |
Frequency Inverter |
Product Description

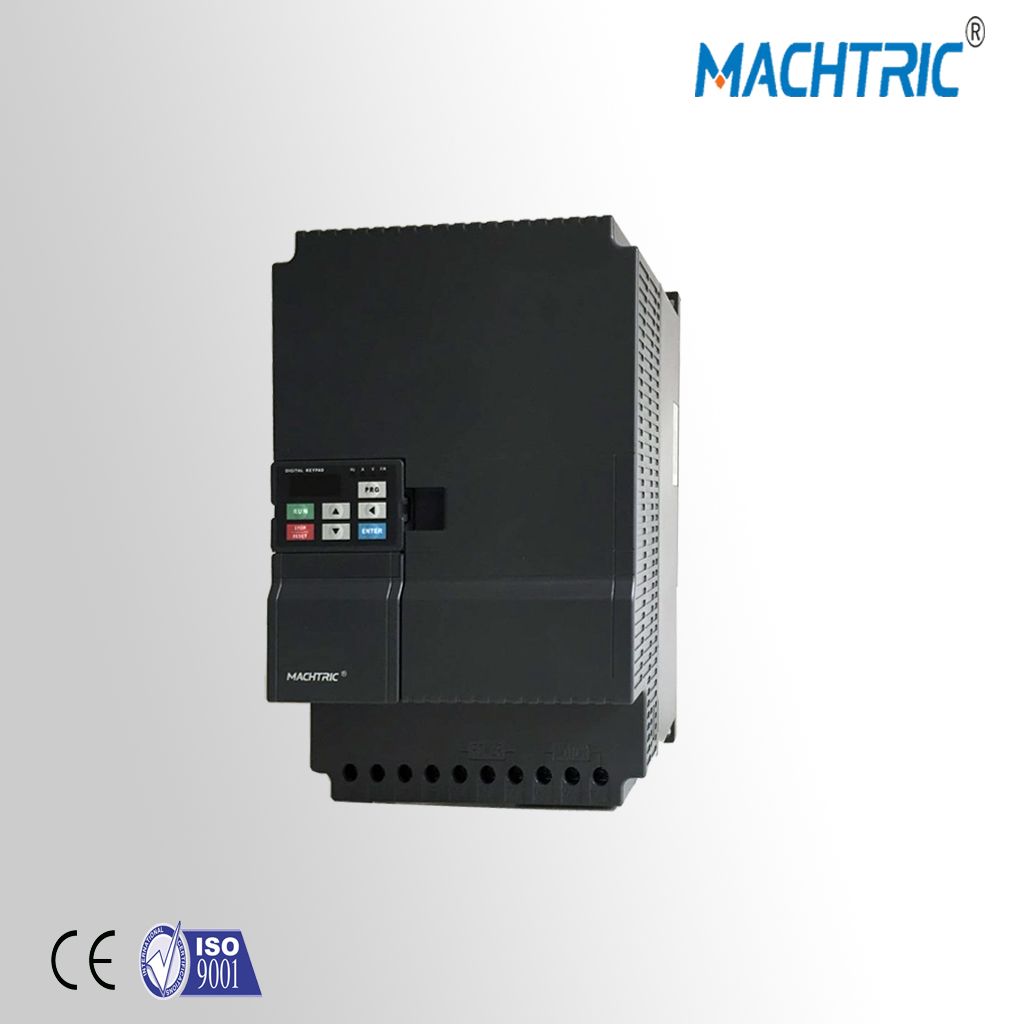

Z900E series Micro High-performance vector inverter
Advantageness of mini economical vector inverter----Z900
* Compact Size
* Vector control with open loop
* Wide power range among the compact drives
* Easy operate
* Delta apprearance
1. what's the payment term?
We accept T/T, L/C, D/P, WEST UNION, CASH
2. What's the delivery time ?
Usually it will take about two - three weeks for production .It depends on your quanlity .
3. What is the standard of package?
Export standard package or special package according to customer requirement
.
4. what kind of product quality your factory offer?
We offer most competitive prices with best quality
5. Do you accept OEM business?
We accept OEM with your autherization.
6.Which market do you already sell?
We already ship to Europ, Middle East, South America, Asia, Afria etc.
Our Services
We provide warranty and technical support if you buy our inverter ,also we will have technical training if your engineer have such demand ;
Specification :
Item |
Z900 |
Standard
functions
|
Control mode |
Sensorless flux vector control (SFVC)
Voltage/Frequency (V/F) control |
Maximum frequency |
Vector control: 0-300 Hz
V/F control: 0-3200Hz |
Carrier frequency |
1 kHz-16 kHz
The carrier frequency can be automatically adjusted based on the load features. |
Input frequency resolution
|
Dgital setting: 0.01 Hz
Analog setting: maximum frequency x 0.025%
|
Startup torque |
G type: 0.5 Hz/150% (SFVC);
P type: 0.5 Hz/100% |
Speed range
|
1:100 (SFVC)
|
Speed stability accuracy |
± 0.5% (SFVC)
|
Overload capacity |
G type: 60s for 150% of the rated current,
3s for 180% of the rated current.
P type: 60s for 120% of the rated current,
3s for 150% of the rated current. |
Torque boost |
Auto-boost
Customized boost 0.1%-30.0% |
V/F curve
|
Liner V/F curve
Multi-point V/F curve
N-power V/F curve (1.2-power, 1.4-power, 1.6-power,
1.8-power, square) |
V/F separation |
Two types: complete separation; half separation |
Ramp mode
|
Straight-line ramp
S-curve ramp
Four groups of acceleration/deceleration time with the range of 0.0-6500.0s |
DC braking |
DC braking frequency: 0.00 Hz to maximum frequency
Braking time: 0.0-36.0s
Braking action current value: 0.0%-100.0% |
JOG control
|
JOG frequency range: 0.00-50.00 Hz
JOG acceleration/deceleration time: 0.0-6500.0s |
